WR90(8.2 to 12.4GHz)10dbi E-Plane Sector Waveguide Horn Input / Flange:UBR-UG-39/U

Model No: WI-90-UBR-10E

Made in Taiwan
Frequency Range: 8.2 - 12.4 GHz
Antenna Type: Standard Gain Horn
Nominal Gain: 10 dBi
Waveguide Size: WR90 (X-Band)
Stock: 4
2026/06/09
Quantity:
INQUIRY

WI-90-UBR-10E WR90 E-Plane Sector Waveguide Horn Antenna

8.2 GHz to 12.4 GHz X-Band Antenna | UBR-UG-39/U Flange | Model: WI-90-UBR-10E
The WI-90-UBR-10E is an industrial-grade WR90 E-Plane Sector Waveguide Horn Antenna professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for high-performance transmission and microwave validation scanning. Operating within the high-frequency X-Band spectrum across the continuous 8.2 GHz to 12.4 GHz band, this premium sectoral antenna is expertly flared in the E-plane to deliver a stable linear nominal gain of 15 dBi. Featuring a direct Waveguide input interface with a standardized UBR-UG-39/U flange mating face, it ensures flawless structural impedance coplanarity and ultra-low-loss power transfer, safely managing continuous wave power loads up to 500 Watts (CW). Precision CNC machined from high-grade structural aluminum alloy in Taiwan, it exhibits exceptional electromechanical longevity, a lightweight 180g profile, and highly stable radiation patterns paired with a maximum V.S.W.R threshold of 1.3. It stands as the definitive choice for radar systems, advanced satellite communication networks, automated antenna characterization ranges, and specialized EMC laboratory testing frameworks demanding uncompromised performance parameters.



Electrical Specifications
Frequency Range Class 8.2 GHz - 12.4 GHz (Continuous X-Band Spectral Optimization)
Waveguide Standard Size WR-90 (EIA Standard) / WG16 / R100 Geometry Layout
Nominal Gain (Typical) 15 dBi (E-Plane Sector Optimization)
V.S.W.R Profile (Max) 1.3 (Highly Stable Minimal Reflection Performance)
Maximum Input Power 500W (CW Continuous Wave Thermal Limit)
-3dB Beamwidth (H-Plane) 112° (Expansive Horizon Profile)
-3dB Beamwidth (E-Plane) 46° (Focused Sector Fan-Beam Optimization)
Waveguide Flange Interface Standardized UBR-UG-39/U Flange face
Mechanical & Material Specifications

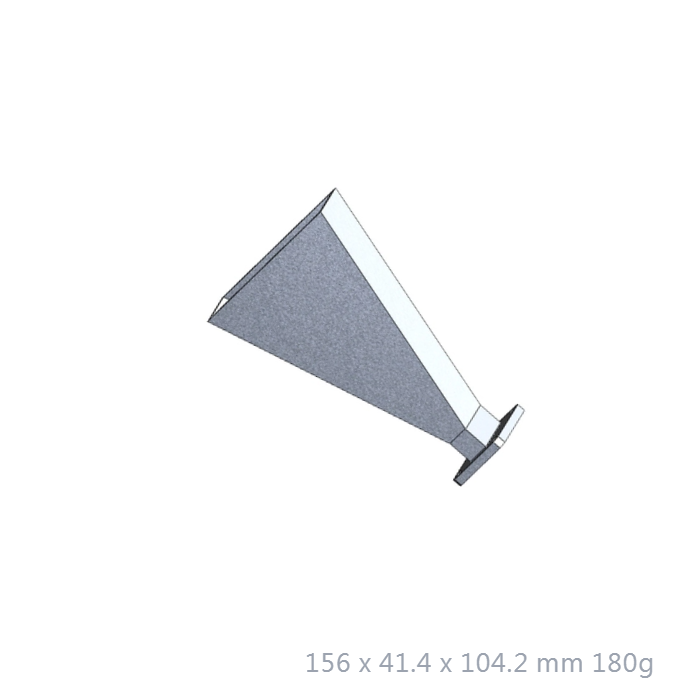

Physical Dimensions (L x W x H) 156 x 41.4 x 104.2 mm
Total Length (with Flange) 161 mm
Antenna Net Weight 180 g (Precision Lightweight Footprint)
Structural Body Material High-Grade Aerospace Aluminum
Manufacturing Origin Taiwan Design & Made in Taiwan (FT-RF Professional Grade)



High Power Capability

Robust structural integrity supports up to 500W maximum input power for high-intensity RF testing, ensuring system stability under heavy thermal wave limits.

E-Plane Sector Optimization

Specially designed asymmetric beamwidths (H-plane 112°, E-plane 46°) maximize wide illumination profiles and allow for strict linear polarization control.

Premium Aluminum Build

Premium grade CNC machined Aluminum housing ensures exceptional long-term mechanical stability, flat gain response, and low trace losses.

Standard Waveguide Interface

Equipped with an EIA-compliant WR90 geometric layout and UBR-UG-39/U flange layout for seamless, low-loss integration with professional industrial test benches.
