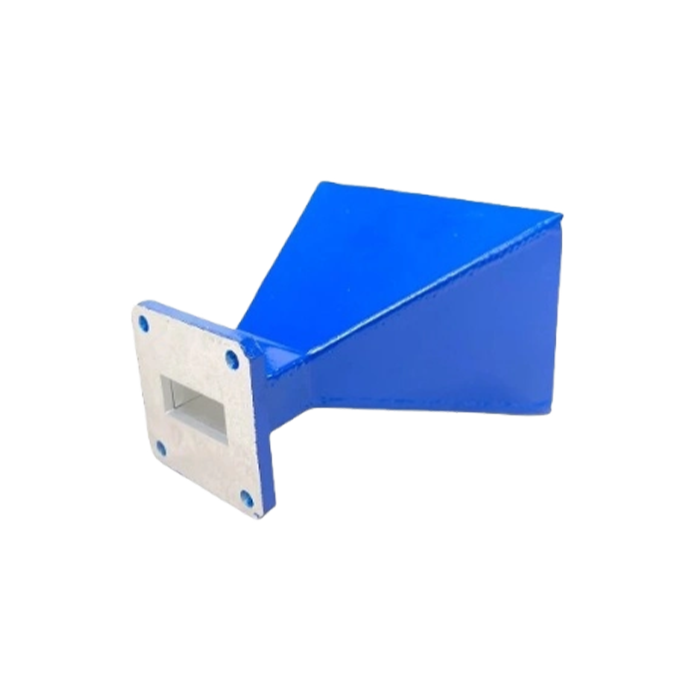

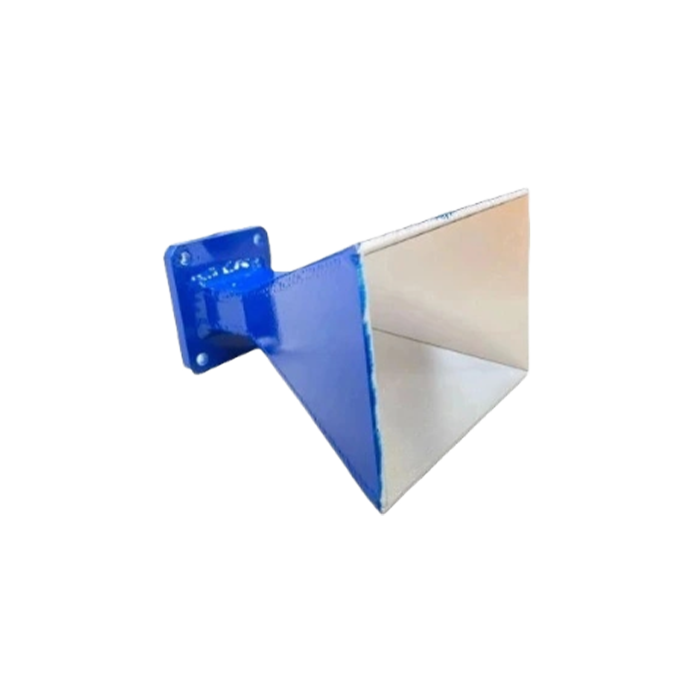

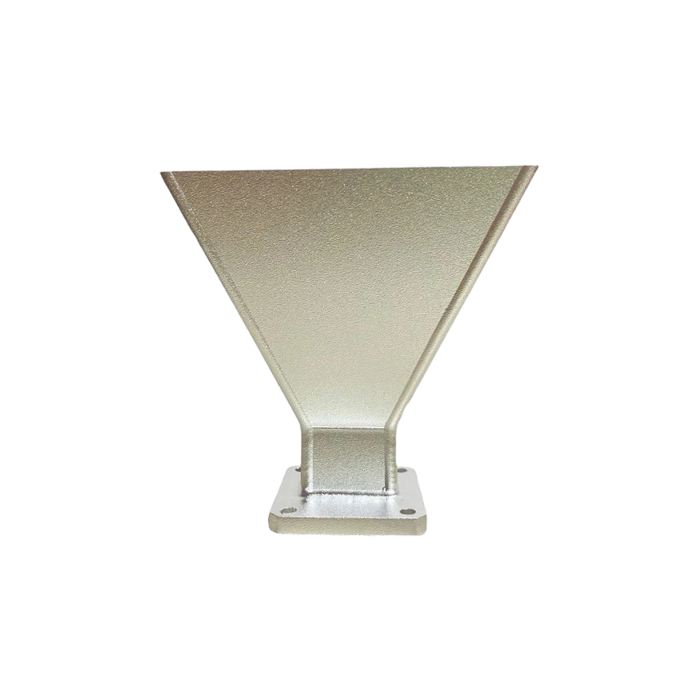

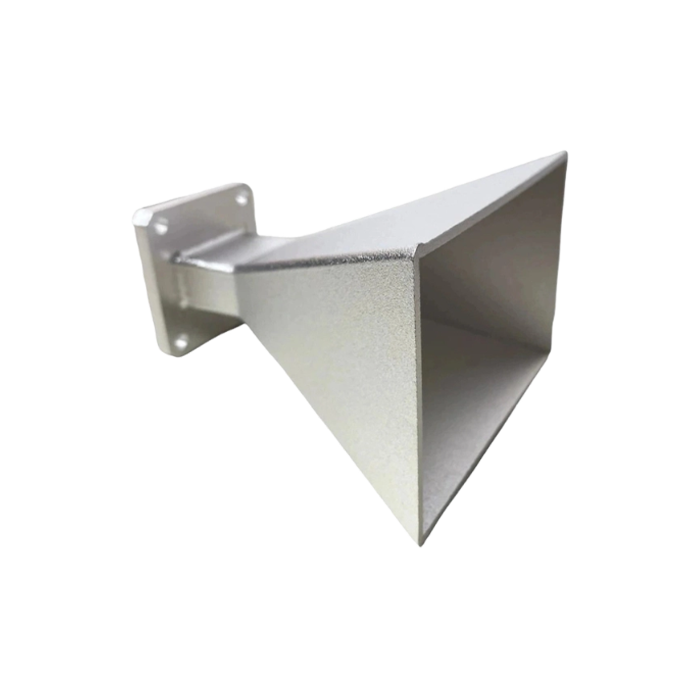

WR90 X Band Waveguide Horn Antenna (Model: WI-090-A1-15)
8.2 - 12.4 GHz | 15 dBi Gain | UBR UG-39/U Flange
The WI-090-A1-15 is a high-performance WR90 Waveguide Horn Antenna expertly manufactured by FT-RF in Taiwan ``. Operating within the X Band frequency range of 8.2 GHz to 12.4 GHz ``, it delivers a consistent 15 dBi gain `` suitable for precise indoor testing and communications applications. Constructed from lightweight aluminum (98g) `` and equipped with a standard UBR UG-39/U flange ``, this antenna ensures ease of integration and durability. It meets strict international standards and features a low VSWR of 1.3:1 ``, exemplifying FT-RF's dedication to industrial-grade quality and reliability.
Technical Specifications
Electrical Specifications
| Frequency Range | 8.2 GHz to 12.4 GHz (X Band) `` |
| Gain | 15 dBi `` |
| V.S.W.R | 1.3 : 1 `` |
| Antenna Type | Horn `` |
| Waveguide Type | WR90 / WG16 / R100 `` |
| Flange Type | UBR UG-39/U `` |
| Polarization | Vertical or Horizontal `` |
| Beamwidth (Vertical) | 31 Degrees `` |
| Beamwidth (Horizontal) | 32 Degrees `` |
Mechanical & Environmental Specifications

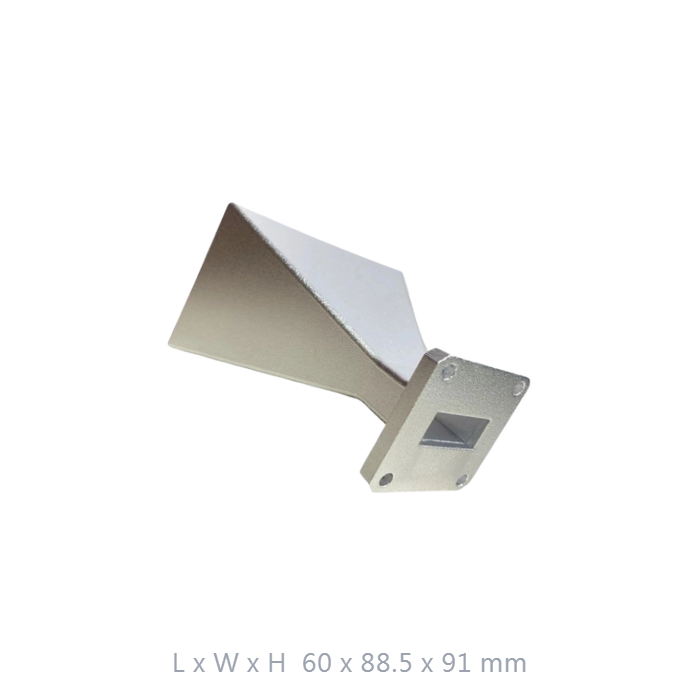

| Dimensions | 60 x 88.5 x 91 mm `` |
| Weight | 98 g `` |
| Material | Aluminum `` |
| Application Environment | Indoor `` |
| Operating Temperature | -20°C to +80°C `` |
| Storage Temperature | -20°C to +120°C `` |
| Operating Humidity | 10% ~ 70% (non-condensing) `` |
| Safety Compliance | RoHS `` |
Key Features
X Band Performance
Designed for the 8.2-12.4 GHz range with a stable 15 dBi gain and excellent directionality ``.
Compact & Lightweight
Weighing only 98g with dimensions of 60x88.5x91mm, ideal for space-constrained setups ``.
Industrial Grade
Built with aluminum and meeting international standards for durability and appearance ``.
Taiwan Made Quality
Proudly manufactured by FT-RF in Taiwan, ensuring superior quality control and reliability ``.
Customization Services
Available options include waterproof structures, custom colors, and PTZ controlling functions upon request ``.
