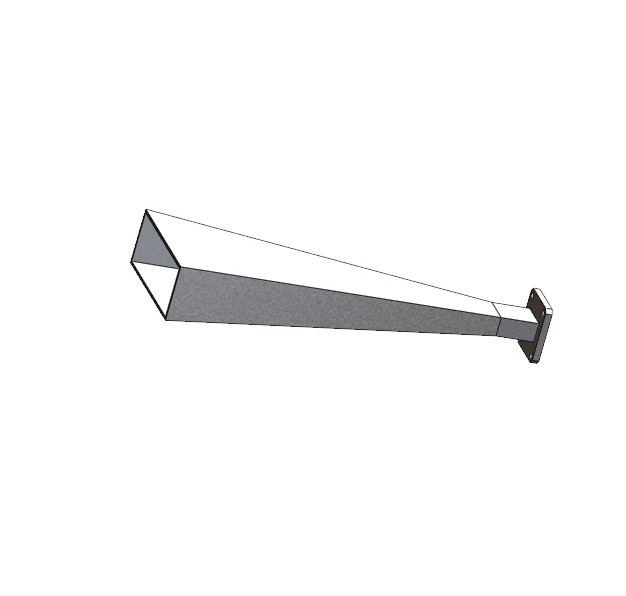

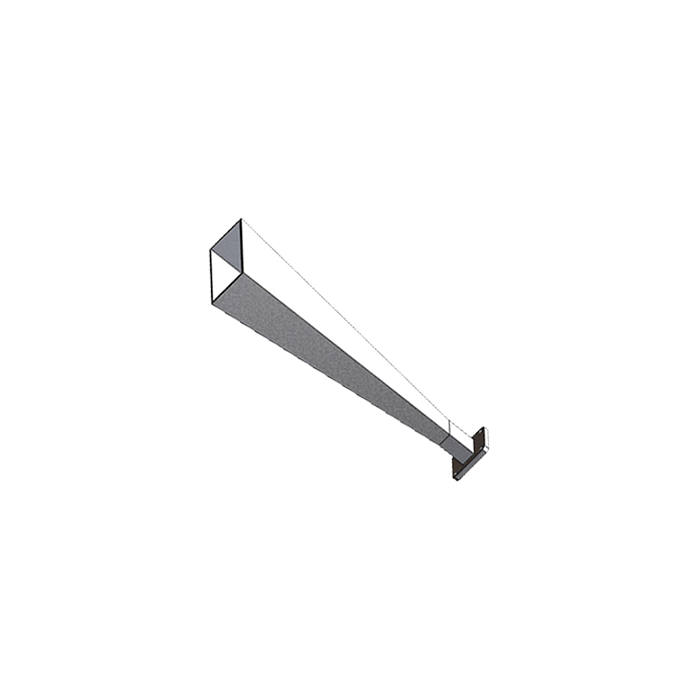

WR-90 X-Band Sectoral Horn Antenna
Model: HS-090-UBR-15-NA | 8.2 - 12.4 GHz | 15 dBi | 500W
The HS-090-UBR-15-NA is a precision-engineered X-Band Sectoral Horn Antenna designed for the WR-90 waveguide standard. Operating across the 8.2 GHz to 12.4 GHz frequency range, this ultra-lightweight antenna delivers a highly specialized radiation pattern with a consistent 15 dBi gain. Featuring a direct waveguide input and a standardized UG-39/U (UBR) Flange, it is optimized to handle up to 500W of power. Manufactured from high-grade aluminum, it is the ideal instrument for EMI/EMC Testing, wide-angle field illumination, and precision antenna gain measurement systems where weight and pattern accuracy are critical.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 8.2 to 12.4 GHz (X-Band) |
| Standard Gain | 15 dBi |
| Maximum Power Handling | 500 Watts (CW) |
| V.S.W.R (Max) | 1.3 : 1 |
| -3dB Beamwidth (H / E Plane) | 12° / 90° (Sectoral Characteristics) |
Mechanical & Physical Specs

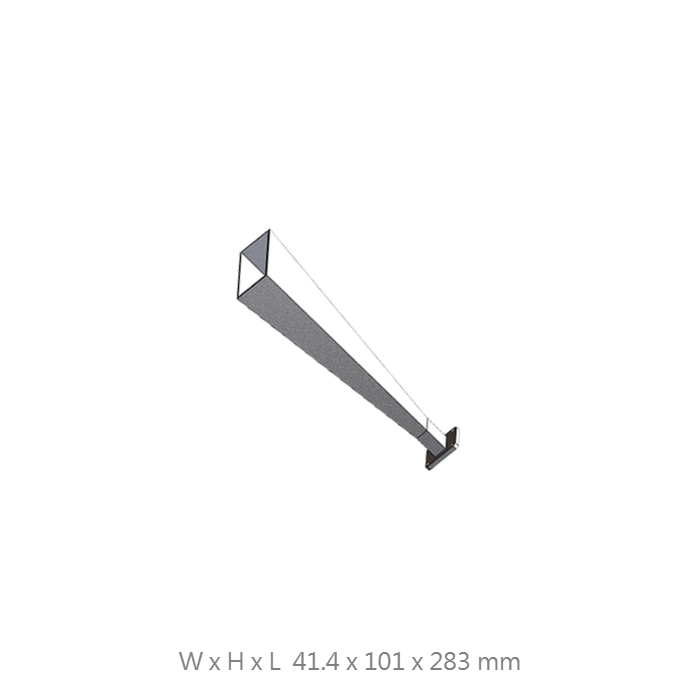

| Dimensions (WxHxL) | 41.4 x 101 x 283 mm |
| Net Weight | 25 g (Ultra-Lightweight Design) |
| Waveguide Standard | WR-90 (R100) |
| Waveguide Flange | UG-39/U (UBR Style) |
| Body Material | High-Grade Aluminum |
| Origin | Made in Taiwan (FT-RF) |
Key Tactical Features
Expansive E-Plane Coverage
Specialized sectoral flare design yields a massive 90° beamwidth in the E-plane, ideal for broad-area illumination in EMC susceptibility testing and multi-point surveillance.
Ultra-Lightweight Payload
At just 25g, this antenna provides the highest performance-to-weight ratio in its class, minimizing mechanical stress on positioning systems and portable setups.
500W Continuous Stability
Engineered to handle up to 500W of continuous power while maintaining low VSWR, ensuring reliability in both laboratory and field operations.
Direct Waveguide Integration
Designed with a direct WR-90 interface for ultra-low-loss power transfer, ensuring boresight accuracy and electromagnetic pattern stability without transition losses.
