8.2 GHz to 12.4 GHz WR-90 Horn Antenna with Integrated Radome
Model: WI-90-PBR-10-R | 10 dBi Gain | X-Band Precision
The WI-90-PBR-10-R is a high-performance WR-90 Waveguide Horn Antenna professionally engineered for X-Band microwave applications within the 8.2 GHz to 12.4 GHz spectrum. Featuring an Integrated Radome, this model is specifically optimized for professional Signal Security operations, laboratory measurements, and rugged outdoor tactical installations where environmental resistance is paramount.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 8.2 - 12.4 GHz (X-Band) |
| Waveguide Standard | WR-90 / R100 / WG16 |
| Nominal Gain | 10 dBi (Typical) |
| V.S.W.R (Max) | 1.3 : 1 |
| 3dB Beamwidth (H/E Plane) | 54° / 54° |
| Impedance | 50 Ohm |
Mechanical & Environmental

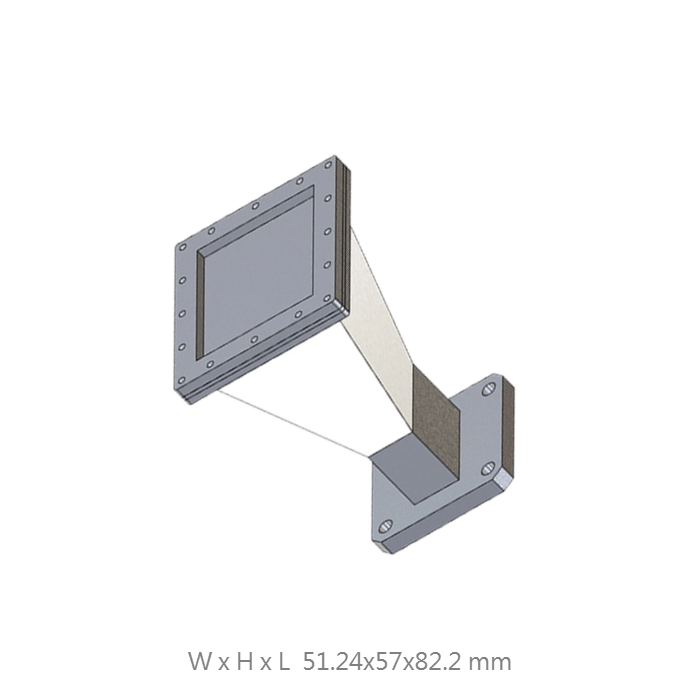

| Dimensions (W x H x L) | 51.24 x 57 x 82.2 mm |
| Net Weight | 100 g |
| Waveguide Flange | PBR UG-39/U Compatible |
| Body Material | Precision Machined Aluminum 6061 |
| Environmental Protection | Integrated Protective Radome |
| Manufacturing Origin | Taiwan Design / Made in Taiwan |
Advanced Tactical Features
Integrated Precision Radome
Equipped with a specialized protective housing providing superior resistance against dust, rain, and tactical debris without compromising signal integrity.
Aluminum 6061 Build
Precision CNC machined from aerospace-grade aluminum to ensure high conductivity, structural rigidity, and exceptional stability across the operating band.
X-Band Spectrum Integrity
Engineered to support Signal Defense operations, providing consistent 10 dBi gain for reliable interference mitigation and professional surveillance.
Global Compliance
Manufactured to meet international RF standards for both defense and commercial monitoring systems, ensuring seamless integration into global microwave links.
Request a Professional Quote
Contact our engineering team for customized waterproof structures, specialized color requirements, or PTZ control integration options.
