WR229 Waveguide Input Antenna (WI Series)
- Select
WI Series • S-Band (3.22 – 4.90 GHz)

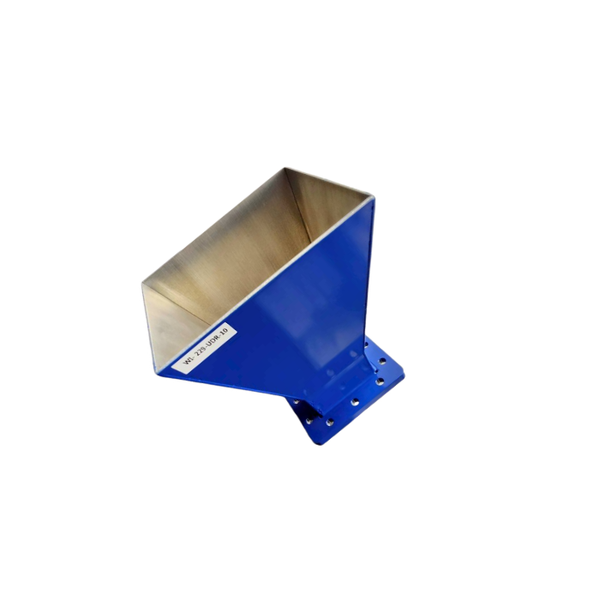

FT-RF WR229 Waveguide Input Antenna
FT-RF WR229 Waveguide Input Antennas feature direct WR229 rectangular flange feeds across S-band spectrums (3.22 GHz to 4.90 GHz). Manufactured from high-grade aluminum, they deliver reliable gain calibration and stable linear polarization for radar surveillance, 5G N77 band testing, and microwave link evaluations.
Built with precision electroformed/machined flares and standard CPR229F cover flanges, WR229 input horns serve as high-efficiency feeds and reference antennas in radar systems, laboratory test benches, and anechoic chambers.
🛠️ Engineering & Customization Options
Tailored structural designs and custom bracket options:
- Custom Dimensions: Tailored flare lengths & holes.
- Phase-Matched Sets: Gain and phase matched pairs.
- Chamber Brackets: Low-reflection mounting plates.
Direct Support: info-tw@ft168.com.tw
| Parameter | Technical Specifications |
|---|---|
| Frequency Range | 3.22 GHz to 4.90 GHz (S-Band) |
| Input Interface | Direct WR229 Waveguide Flange Feed |
| Available Gain | 10 dBi, 15 dBi, 20 dBi, 25 dBi |
| Flange Configuration | CPR229F / FDP32 Cover Flange |
| Certifications | ISO 9001:2015 / RoHS Compliant |
FT-RF
| Frequency Range: | 3.3 - 4.9 GHz |
| Antenna Type: | Waveguide Antenna |
| Nominal Gain: | 10 dBi Typical |
| Waveguide Size: | CPR 229F / CPR 229G |
| Stock: | 0 |
| 2026/06/16 | |
FT-RF
| Frequency Range: | 3.3 - 4.9 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 20 dBi (VSWR 1.25) |
| Waveguide Size: | WR-229 (R40) |
| Stock: | 5 |
| 2026/06/09 | |
FT-RF
| Frequency Range: | 3.3 - 4.9 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 15 dBi Typical |
| Waveguide Size: | WR-229 (UDR / 1000W) |
| Stock: | 5 |
| 2026/06/09 | |
