Description & Specification

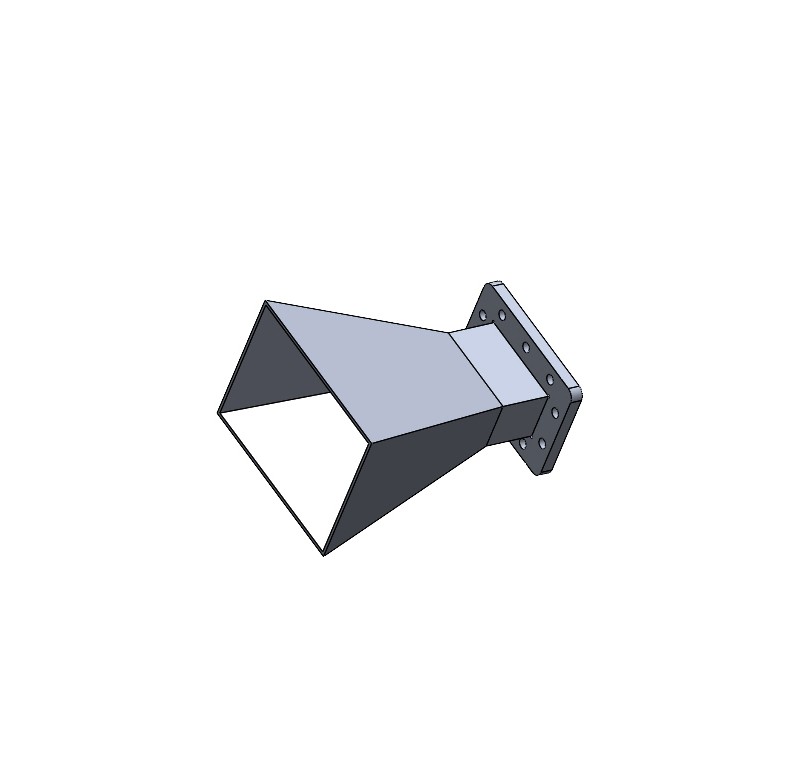

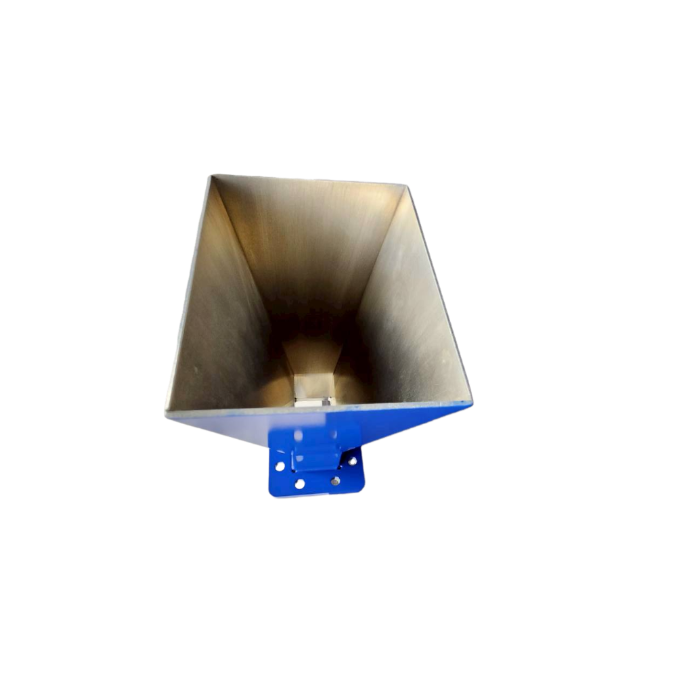

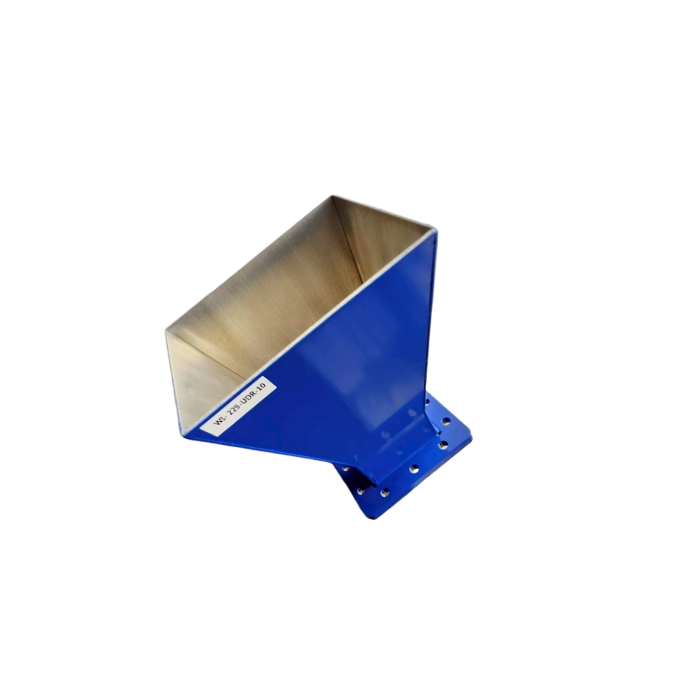

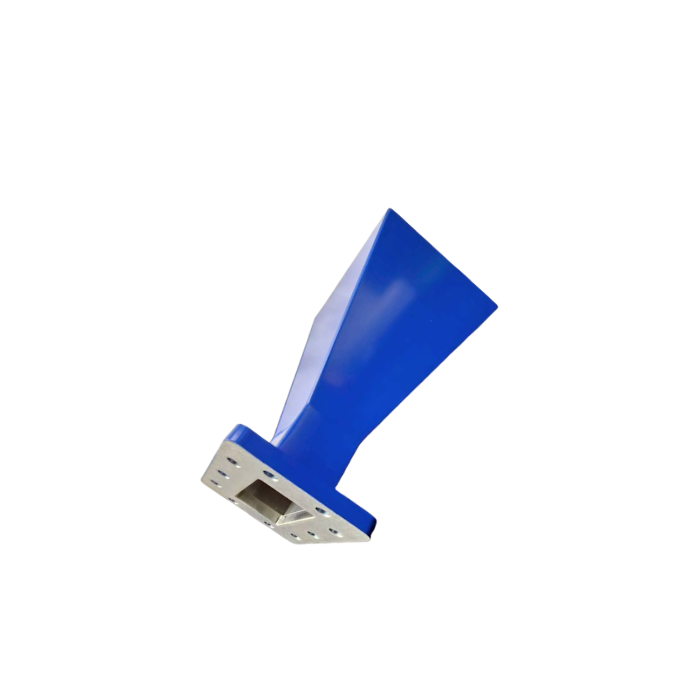

WR-229 Standard Gain Horn Antenna
Precision C-Band Radiator | CPR 229F/G Flange Layout | 3.3 GHz – 4.9 GHz
The WI-229-UDR-10 is a laboratory-grade microwave Standard Gain Horn Antenna professionally engineered for strict adherence to the rectangular WR-229 architectural standard. Operating continuously across the 3.3 GHz to 4.9 GHz frequency spectrum, this premium horn antenna ensures exceptional illumination consistency and stable electromechanical coupling, delivering a flat nominal directive gain profile of 10 dBi combined with an ultra-low maximum V.S.W.R threshold of 1.25 : 1. High-precision CNC manufactured from structural aluminum alloy in Taiwan, the radiator architecture establishes a highly symmetric radiation footprint with matching -3dB beamwidths of 56° in both the H-plane and E-plane matrices. Equipped with a standardized rectangular CPR 229F/G flat-to-grooved cover flange layout, this 360 g component reliably supports extreme high-power continuous wave transfers up to 800 Watts (CW). This optimized structural geometry makes it the definitive choice for EMI/EMC testing, anechoic antenna measurement ranges, satellite feed subsystems, and mission-critical Signal Defense field calibration arrays.
Electrical & RF Performance
| Frequency Range | 3.3 GHz to 4.9 GHz (C-Band Continuous Support) |
| Nominal Gain Standard | 10 dBi |
| V.S.W.R Profile (Max) | ≤ 1.25 : 1 |
| Maximum Power Handling | 800 Watts (CW Continuous Wave) |
| -3dB Beamwidth (H-Plane) | 56° |
| -3dB Beamwidth (E-Plane) | 56° (Symmetric Radiation Layout) |
| Nominal Impedance | 50 Ohms (Mated Interface Dependent) |
Mechanical & Construction Data
| Waveguide Size Standard | EIA WR-229 (R40 / WG11A Layout) |
| Waveguide Flange Designation | CPR 229F / CPR 229G Interconnect Format Standard Layout |
| Physical Dimensions (W x H x L) | 121 x 94 x 166 mm |
| Net Weight | 360 g (Precision Lightweight Geometry) |
| Body Material Profile | High-Grade Structural Machined Aluminum |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
C-Band Spectrum Integrity
Precision-optimized internal throat geometry completely avoids field distortion modes across the 3.3–4.9 GHz spectrum, ensuring highly linear phase tracking data lines.
Symmetric Illumination Pattern
Features equal 56° horizontal and vertical beamwidth apertures, delivering exceptionally balanced phase center locations essential for reflector feed assemblies or ripple mapping.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under strict industrial quality control parameters, providing highly accurate mechanical alignments and repeatable reference criteria.
800W CW Power Handling
Robustly engineered structural core effortlessly manages up to 800 Watts of continuous wave power without experiencing thermal variation or mechanical breakdown.
Standardized CPR-229 Layout
Integrates a fully compliant CPR-229 flat/grooved interface configuration for severe flat gasket positioning, preventing pressure drops or signal boundary leakage paths.
Lightweight Rigid Build
Weighing only 360 g, its sleek aluminum enclosure easily couples to precision multi-axis indoor positioner position columns without inducing unwanted mechanical sag.
Inquire About Professional RF Solutions
Contact our technical engineering team today to request specific gain calibration tables, individual certified V.S.W.R charts, alternative coaxial launch transitions, or custom mounting hardware layouts.
