Description & Specification
WR-229 Standard Gain Waveguide Horn Antenna
Precision S/C-Band Radiator | CPR 229F/G Flange Interface | 3.3 GHz – 4.9 GHz
The WI-229-UDR-20 is a laboratory-grade microwave Standard Gain Horn Antenna professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for high-fidelity directional transmission, anechoic calibration routines, and professional laboratory range testing across the continuous 3.3 GHz to 4.9 GHz S/C-Band spectrum. Meticulously optimized to handle high continuous thermal loads and preserve electromechanical phase center stability, this premium horn antenna delivers a flat nominal directive gain profile of 20 dBi combined with an exceptionally low maximum V.S.W.R profile of 1.25 : 1. Precision CNC machined from aerospace-grade aluminum alloy in Taiwan, the advanced rectangular launch architecture establishes a highly stable radiation footprint, providing uniform -3dB beamwidths of 18° in the H-plane and 15° in the E-plane matrix. Equipped with a standardized precision CPR 229F/G (UDR Style) Flange interface layout, this robust 2100 g instrument ensures flawless leak-free electromechanical coupling, eliminates boundary signal leakage, and safely manages continuous wave power loads up to 800 Watts (CW) with zero boundary degradation. Its optimized microscopic structural tolerances avoid destructive field distortion modes, rendering it the definitive choice for high-intensity EMI/EMC compliance sweeps, automated spectrum surveillance matrices, tactical signal management, and mission-critical Signal Defense laboratory verification setups requiring uncompromised Signal Integrity paths.
Electrical & RF Performance
| Frequency Range | 3.3 GHz to 4.9 GHz (Continuous S/C-Band Optimization) |
| Waveguide Size Designation | EIA WR-229 (WG11A / R40 Geometry Architecture) |
| Cutoff Frequency (Lowest Mode) | 2.577 GHz |
| Standard Nominal Gain | 20 dBi |
| V.S.W.R Profile | ≤ 1.25 : 1 (Precision Minimal Reflection Performance) |
| Maximum Power Handling | 800 Watts (CW Continuous Wave Power Capacity) |
| -3dB Beamwidth (H-Plane) | 18° (Concentrated Boresight Focus Path) |
| -3dB Beamwidth (E-Plane) | 15° (Highly Symmetrical Radiation Envelope) |
Mechanical & Construction Parameters

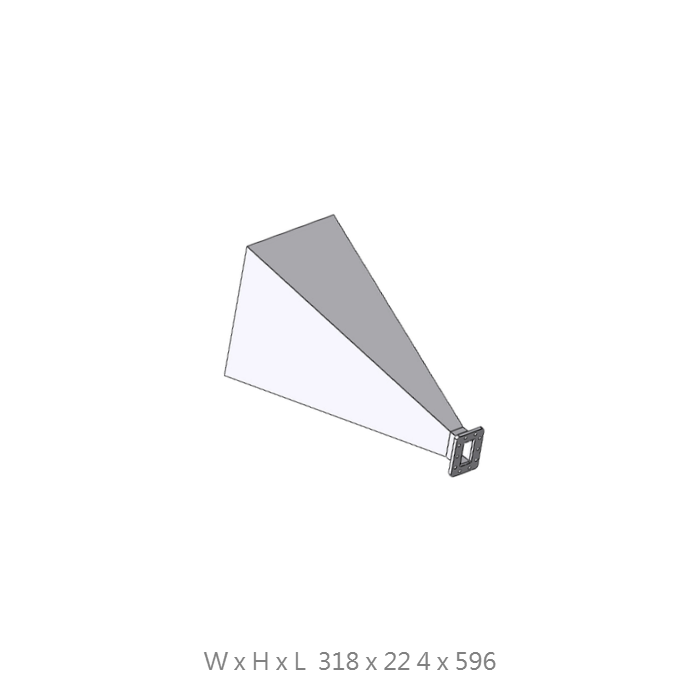

| Physical Dimensions (W x H x L) | 318 x 224 x 596 mm |
| Net Weight | 2100 g / 2.1 kg (Precision Rigid Geometry Build) |
| Waveguide Flange Configuration | Standard CPR 229F/G Layout (Precision UDR Style Compatible Interface) |
| Body Material Profile | High-Grade Aerospace Aluminum Alloy Structure |
| Signal Polarization Class | Linear (Vertical or Horizontal Deployment Capable) |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
800W High-Power Domination
Robustly engineered structural core effortlessly manages up to 800 Watts of continuous wave (CW) power loads, providing a highly resilient radiator for intensive Signal Security operations and tactical high-power signal management platforms.
Precision Signal Integrity
Maintains an exceptionally low VSWR of 1.25 across the entire 3.3–4.9 GHz band, neutralizing return loss anomalies to ensure maximum energy transfer and highly predictable, repeatable laboratory measurement results.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under strict industrial quality control standards, ensuring absolute flange coplanarity, exact interior launcher tolerances, and reproducible measurement stability metrics.
Industrial-Grade Aluminum Build
Meticulously CNC-machined from aerospace-grade aluminum alloy blocks to realize superior thermal dissipation and absolute structural rigidity, ensuring maximum environmental durability in demanding antenna ranges.
Standardized UDR Interface
Equipped with a precision flat CPR 229F/G waveguide flange layout format, enabling secure, direct mechanical coupling without an adapter to maximize power transfer efficiency and eliminate harmful boundary signal leakage in mission-critical systems.
Get a Quote / Custom Antenna Solutions
Contact our technical engineering division today to request official quote documents, individual certified calibration data logs, certified individual V.S.W.R plot sheets, or customized waveguide flange adaptations.
