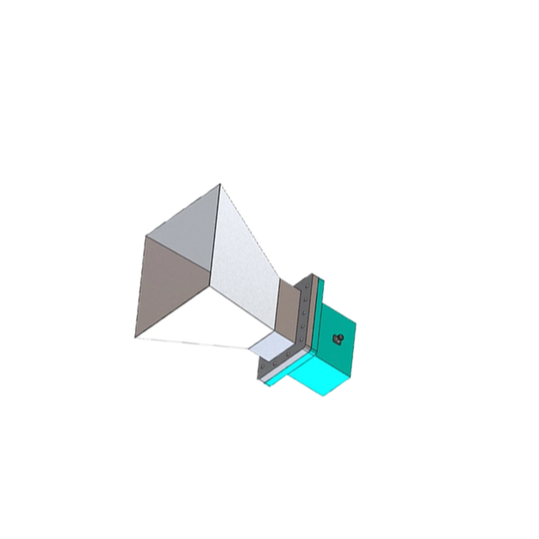

WR770 Standard Gain Horn Antenna

Frequency: 970MHz to 1450MHz
Size(mm): 506x681x832mm
Waveguide Type: WR770
Connector: N-Female (SUS-303)


Waveguide Type: WR-770
Frequency: 0.97 GHz to 1.45 GHz
Waveguide Coaxial Adapter Model: WC-770-UDR-NF
Waveguide input Model: WI-770-UDR-10
Connector: N-Female(SUS-303)
V.S.W.R: 1.3
Gain: 10 dBi
Wieght(g):6800
Size(mm): 289x389x562

Waveguide Type: WR-770
Frequency: 0.97 GHz to 1.45 GHz
Waveguide Coaxial Adapter Model: WC-770-UDR-NF
Waveguide input Model: WI-770-UDR-15
Connector: N-Female(SUS-303)
V.S.W.R: 1.3
Gain: 15 dBi
Wieght(g):8900
Size(mm): 523x691x785
