Description & Specification

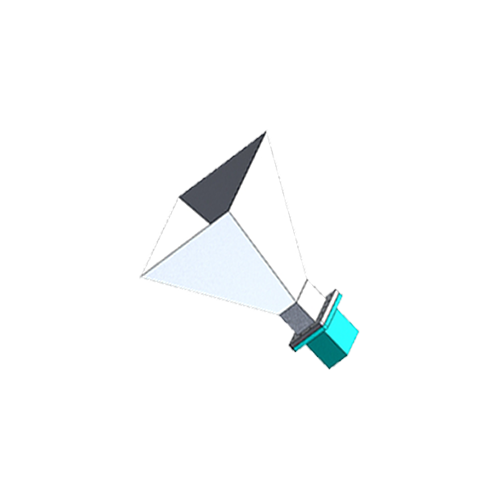

WR-770 Standard Gain Horn Antenna
Model: HS-770-UDR-20A-NF | 970 - 1450 MHz | 20 dBi | 2000W Max
The HS-770-UDR-20A-NF is a high-performance WR-770 Waveguide Horn Antenna specifically engineered for precision measurements and high-power operations within the 970 MHz to 1450 MHz range. Optimized for Signal Defense systems and professional communication dominance, it ensures consistent 20 dBi gain and exceptional stability. Its robust 2000W power handling and controlled beamwidth make it an essential radiator for EMI/EMC testing, antenna calibration, and professional Signal Security infrastructure.
Electrical & RF Performance
| Waveguide Standard | WR-770 |
| Frequency Range | 970 MHz - 1450 MHz |
| Standard Gain | 20 dBi |
| Maximum Power Handling | 2000 Watts |
| Polarization | Linear (Vertical or Horizontal) |
Mechanical & Physical Specs
| Dimensions (WxHxL) | 506 x 681 x 832 mm |
| Net Weight (N.W.) | 8.9 KG |
| Connector Type | N-Female (SUS-303 Stainless Steel) |
| Manufacturing Origin | Taiwan Design & Made in Taiwan |
Extreme High-Power Integrity
Engineered to withstand up to 2000 Watts continuous power, ensuring unwavering stability and interference mitigation in professional Signal Defense operations.
WR-770 Waveguide Precision
Features a standardized WR-770 waveguide interface to ensure low-loss propagation and superior mechanical survival in mission-critical field environments.
Superior Signal Security
The precision aluminum alloy construction ensures low VSWR and high structural rigidity, maintaining unwavering stability in professional communication networks.
Stainless Steel Interconnect
Equipped with a precision-machined SUS-303 N-Female connector to prevent oxidation and ensure stable impedance during frequent field deployments.
Get a Quote / Custom Antenna Solutions
Contact us for specialized gain configurations, alternative connector types, or integrated mounting adapters for tactical dominance.
