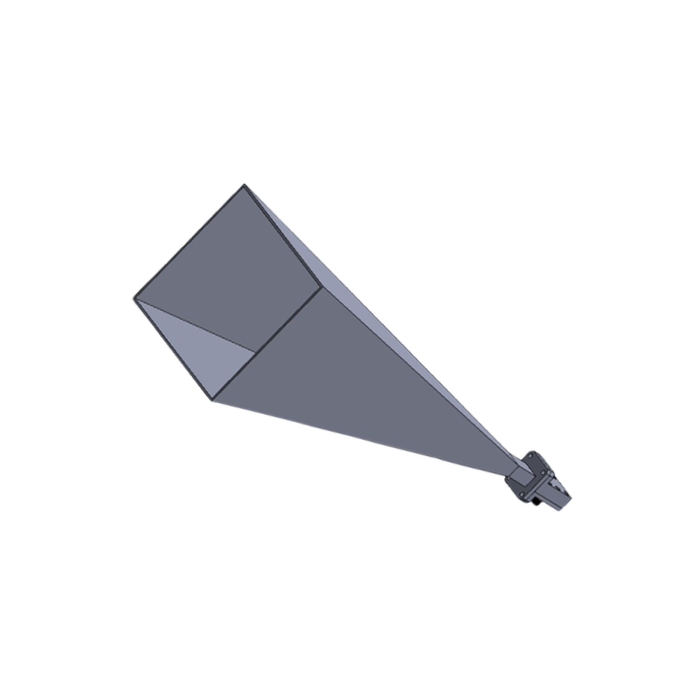

WR-62 Standard Gain Horn Antenna with SMA Adapter
Model: HS-062-UBR-25A-SF | 12.4 - 18.0 GHz | 25 dBi | 250W
The HS-062-UBR-25A-SF is a high-performance Ku-Band Horn Antenna professionally integrated with a precision waveguide-to-coaxial adapter. Operating within the 12.4 GHz to 18.0 GHz spectrum, this system delivers a high 25 dBi gain and excellent return loss (VSWR 1.25). Precision-manufactured from high-grade aluminum with a robust SMA-Female interface and standardized UG-419/U Flange, it is an essential instrument for EMI/EMC Testing, satellite communication research, and antenna gain measurement, ensuring superior Signal Integrity for mission-critical deployments.
Electrical & RF Performance
| Waveguide Standard | WR-62 (R140) |
| Frequency Range | 12.4 GHz to 18.0 GHz |
| Standard Gain | 25 dBi |
| Maximum Power Handling | 250 Watts (CW) |
| V.S.W.R (Max) | 1.25 : 1 |
| Body Material | High-Grade Aluminium |
Mechanical & Physical Specs
| Waveguide Flange | UG-419/U or UG-541A/U (UBR Style) |
| Coaxial Connector | SMA-Female |
| Customization Options | Waterproof Radome, Tripod Mount, PTZ Control |
| Origin | Made in Taiwan (FT-RF) |
Ku-Band Precision Patterns
Optimized for the 12.4-18.0 GHz band, delivering the boresight accuracy and gain consistency required for high-fidelity antenna calibration and laboratory testing.
High-Gain (25 dBi) Radiator
Designed for focused signal transmission and reception, providing the link margin necessary for advanced satellite and terrestrial microwave research.
Lightweight Aluminum Build
Precision-machined aluminum ensures structural rigidity while maintaining a compact form factor, ideal for mounting on tactical masts or precision positioners.
Customizable Infrastructure
Fully adaptable with options for specialized radomes, PTZ control functions, and custom color coatings to meet specific environmental or mission requirements.
Get a Quote / Custom RF Solutions
Contact us for specialized PTZ control, waterproof builds, or custom mounting interfaces.
