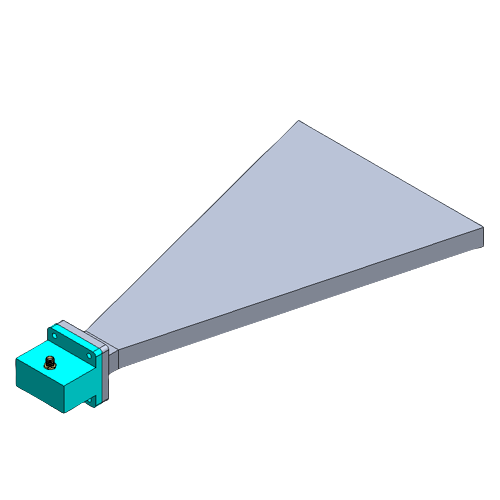

WR-112 H-Plane Sectoral Horn Antenna with SMA Adapter
Model: HS-112-UBR-10H-SF | 7.05 - 10.0 GHz | 10 dBi | 220W

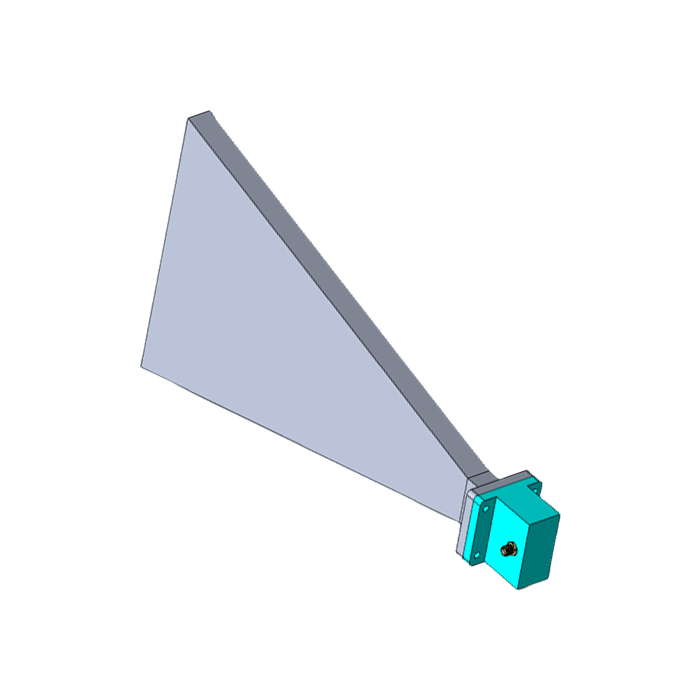

The HS-112-UBR-10H-SF is a high-precision Sectoral Horn Antenna expertly flared in the H-plane to provide a massive E-plane coverage of 106°. Operating within the 7.05 GHz to 10.0 GHz X-Band spectrum, this antenna system integrates a precision waveguide-to-coaxial adapter with a durable Stainless Steel SMA-Female interface. Precision-manufactured from high-grade aluminum, it ensures exceptional return loss (VSWR 1.25) and manages power loads up to 220W, making it an essential radiator for EMI/EMC Testing, wide-angle field generation, and advanced Signal Defense operations.
Technical Specifications
Electrical & RF Performance
| Waveguide Standard | WR-112 (R84) |
| Antenna Type | H-Plane Sectoral Horn |
| Frequency Range | 7.05 GHz to 10.0 GHz |
| Standard Gain | 10 dBi |
| Maximum Power Handling | 220 Watts (CW) |
| V.S.W.R (Max) | 1.25 : 1 |
| -3dB Beamwidth (H / E Plane) | 15° / 106° |
Mechanical & Physical Specs

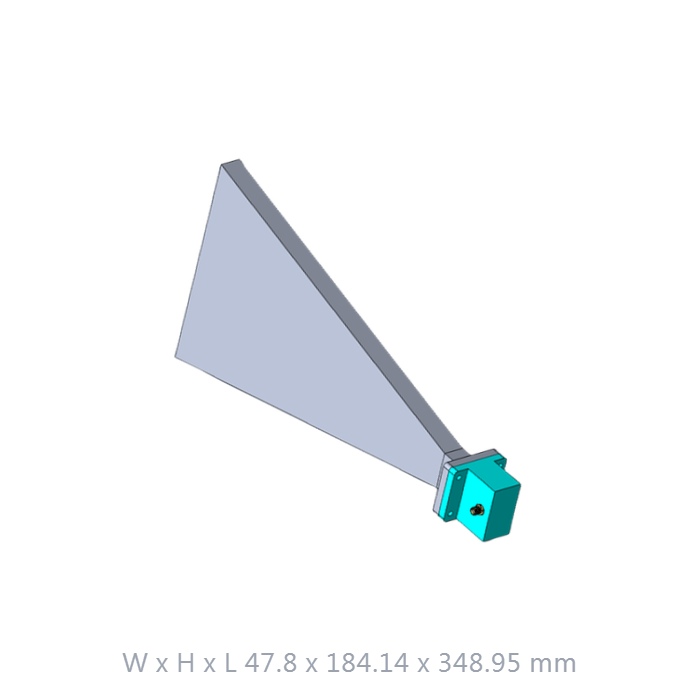

| Dimensions (WxHxL) | 47.8 x 184.14 x 348.95 mm |
| Net Weight | 530 g |
| Waveguide Flange | UBR Style |
| Coaxial Connector | SMA-Female (Stainless Steel / SUS) |
| Material | High-Grade Aluminum |
| Origin | Made in Taiwan (FT-RF) |
Key Tactical Features
Wide E-Plane Coverage
The H-plane flare design provides an expansive 106° sectoral coverage in the E-plane, ideal for broad-area illumination in EMC susceptibility testing or multi-point surveillance.
Heavy-Duty SUS Interface
Equipped with a high-durability stainless steel SMA interface, ensuring reliable electrical contact and structural wear resistance for repeated laboratory use.
X-Band Signal Integrity
Optimized for the 7.05-10.0 GHz band, ensuring exceptional gain consistency and minimal signal leakage in mission-critical environments.
Customizable Infrastructure
Available with options for waterproof builds, PTZ control functions, and specialized mounting designs to meet specific outdoor tactical requirements.
Get a Quote / Custom RF Solutions
Contact us for specialized PTZ control, waterproof structures, or custom mounting interfaces.
