Waveguide to Coax Adapters (WC)

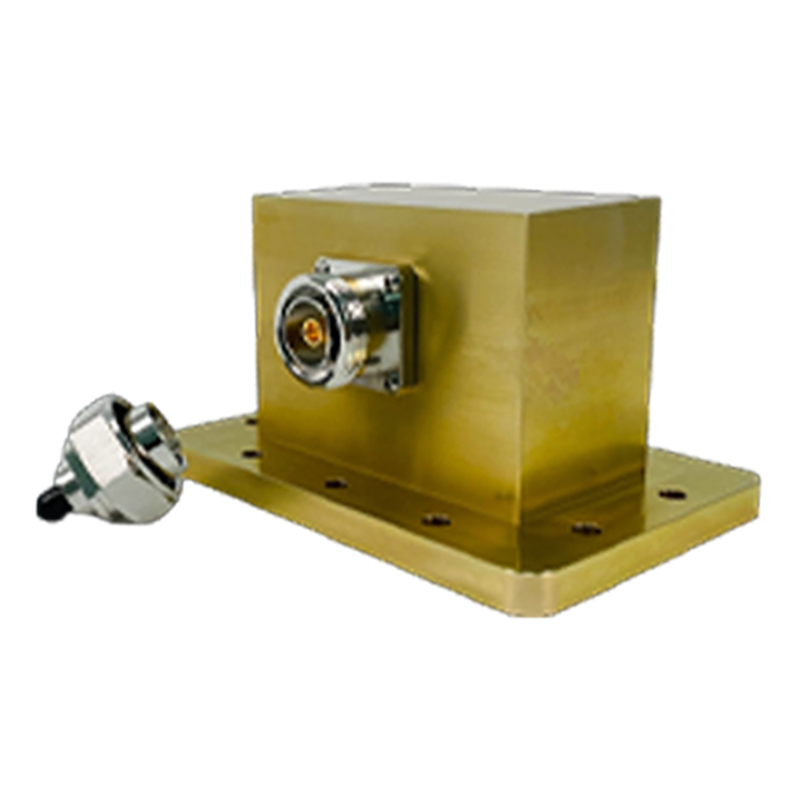

The FT-RF Waveguide to Coax Adapters (WC Series) deliver high-efficiency conversion between rectangular waveguide propagation modes and standard 50 Ω coaxial transmission lines. Featuring precision-engineered N-type and SMA connectors, this series spans frequencies from 320 MHz up to 40 GHz while maintaining superior low VSWR performance and minimal insertion loss.
These adapters serve as vital interconnect solutions for bridging microwave waveguide systems with coaxial RF instrumentation, attenuators, switches, and couplers. They are widely deployed across satellite ground station terminals, terrestrial microwave links, and high-precision laboratory test benches.
*Custom waveguide flange options (UG/UBR/FBP), right-angle/end-launch configurations, and high-frequency millimeter-wave adapters available upon request.
⚡ Next-Gen Engineering Highlights
Low VSWR Interconnects
Optimized internal impedance matching transitions minimize reflections and ensure exceptional RF energy transfer efficiency.
Broadband Frequency Span
Full band waveguide coverage spanning 320 MHz to 40 GHz across WR28 through WR770 standardized waveguide sizes.
Precision Coaxial Interfaces
Equipped with high-durability SMA-Female or N-Female precision coax connectors for robust repeatability in measurement setups.
Rugged Mechanical Construction
Precision-machined high-grade aluminum/brass with corrosion-resistant plating for reliable performance in harsh environments.
Key Operational Applications:
| Key Technical Parameter | WC Series Specification Overview |
|---|---|
| Frequency Coverage | 320 MHz – 40 GHz (Full Standard Waveguide Bands) |
| Coaxial Interface Options | Precision SMA-Female or N-Type Female 50 Ω Interfaces |
| Impedance & VSWR | 50 Ω Nominal / Low VSWR (< 1.25:1 Typical) |
| Primary Function | Mode Conversion Between Waveguide & Coaxial Systems |
| Supported Waveguide Models |
320 MHz – 40 GHz Coverage SMA & N-Type Coaxial Feeds WR28 to WR770 Waveguides
🛠️ Tailored Engineering & Customization
We provide specialized configurations to ensure seamless integration into your waveguide setups:
- Custom Flange Styles: Precision CPR, UG, UBR, and custom alignment pin options.
- High Power Options: Expanded CW power handling capabilities for transmitter feeds.
- End-Launch Configurations: In-line coaxial launches for tight physical spaces.
📐 Recommended Testing Accessories
Enhance your measurement setup with compatible mounting and RF equipment:
WC-062-UBR-E1-SF
WR62 Waveguide to Coaxial Adapter, 12.4G to 18GHz, End-Lauch Adapter Flange
View Details
Made in Taiwan
| Frequency Range: | 12.4 - 18.0 GHz |
| Waveguide: | WR-62 (UG-2664/U) |
| Connector: | SMA-Female |
| Stock: | 2 |
| 2026/06/09 | |
NEW
Made in Taiwan
| Frequency Range: | 8.2 GHz - 12.4 GHz |
| Waveguide Type: | WR-90 (X-Band) |
| Flange / Connector: | UG-39/U / SMA-F |
| Stock: | 18 |
| 2026/06/09 | |
WC-340-716F-A1
WR340 Waveguide Coaxial Adapter Flange: UDR, 2.2GHZ to 3.3GHz, 716-Female Connector
View Details
Made in Taiwan
| Frequency Range: | 2.2 GHz - 3.3 GHz |
| Waveguide Type: | WR-340 / High Power |
| Connector Port: | 7/16-DIN Female |
| Max Power Handling: | 1000 Watts |
| 2026/06/11 | |
WC-340-UDR-NF
WR340 Waveguide Coaxial Adapter. UDR Flange, 2.2GHz to 3.3GHz, N-Female Connector
View Details
Made in Taiwan
| Frequency Range: | 2.2 GHz - 3.3 GHz |
| Waveguide Type: | WR-340 Standard |
| Flange / Connector: | UDR / N-Female |
| Max Power: | 300 Watts |
| Stock: | 4 |
| 2026/06/09 | |
WC-2300-UDR-NF
WR2300 Waveguide Coaxial Adapter Flange UDR, 320 MHz to 490 MHz, N-Female Connector
View Details
Made in Taiwan
| Frequency Range: | 320 MHz - 490 MHz |
| Waveguide Type: | WR-2300 (Large Scale) |
| Flange / Interface: | UDR / N-Female |
| Application: | RF System Integration |
| Stock: | 0 |
| 2026/06/11 | |
WC-2100-UDR-NF
WR2100 Waveguide Coaxial Adapter, 350 MHz to 530 MHz, N-Female Connector, UDR Flange
View Details
Made in Taiwan
| Frequency Range: | 350 MHz - 530 MHz |
| Waveguide Type: | WR-2100 (Large Scale) |
| Flange / Interface: | UDR / N-Female |
| Application: | Broadcasting & Radar |
| Stock: | 0 |
| 2026/06/11 | |
WC-1800-UDR-NF
WR1800 Waveguide to Coaxial Adapter Flange: UDR, 410 MHz to 620 MHz, N-Female connector
View Details
Made in Taiwan
| Frequency Range: | 450 MHz - 630 MHz |
| Waveguide Type: | WR-1800 (UHF Scale) |
| Flange / Interface: | UDR / N-Female |
| Application: | High-Power RF Systems |
| Stock: | 0 |
| 2026/06/10 | |
WC-1500-A-NF
WR1500 490 MHz to 750 MHz N-Female Waveguide Coaxial Adapter Flange:type01(Aluminum)
View Details
Made in Taiwan
| Frequency Range: | 490 MHz - 750 MHz |
| Waveguide Type: | WR-1500 (UHF Scale) |
| Flange / Interface: | Type01 / N-Female |
| Application: | Broadcast & Radar Systems |
| Stock: | 0 |
| 2026/06/15 | |
WC-975-UDR-NF
WR975 Waveguide Coaxial Adapter, frequency from 0.75 GHz to 1.15 GHz, N-Female Connector, UDR Flange
View Details
Made in Taiwan
| Frequency Range: | 750 - 1150 MHz |
| Waveguide: | WR-975 (UDR Flange) |
| Peak Power: | 1000 Watts (CW) |
| Stock: | Contact us |
| 2026/06/15 | |
WC-510-UDR-NF
WR510 Waveguide to Coaxial Adapter, 1.45GHz to 2.2GHz, N-Female connector, UDR Flange
View Details
Made in Taiwan
| Frequency Range: | 1.45 GHz - 2.2 GHz |
| Waveguide Type: | WR-510 / UDR |
| Flange / Connector: | UDR / N-Female |
| Stock: | 0 |
| 2026/06/15 | |
WC-430-UDR-NF
WR430 Waveguide to Coaxial Adapter, from 1.7GHz to 2.6GHz, N-Female connector, UDR Flange
View Details
Made in Taiwan
| Frequency Range: | 1.7 GHz - 2.6 GHz |
| Waveguide Type: | WR-430 (Standard) |
| Flange / Interface: | UDR / N-Female |
| Stock: | 0 |
| 2026/06/15 | |
WC-284-UDR-NF
WR284 2.6GHz to 3.95GHz N-Female Waveguide Coaxial Adapter Flange: type01 (Aluminum)
View Details
Made in Taiwan
| Frequency Range: | 2.6 GHz - 3.95 GHz |
| Waveguide / Flange: | WR-284 / UDR |
| Connector: | N-Female |
| Stock: | 3 |
| 2026/06/09 | |
