WC-2300-UDR-NF Waveguide to Coaxial Adapter
20KG Science Grade Titan | Extreme WR-2300 Power Transition | 320 MHz – 490 MHz
The WC-2300-UDR-NF is the undisputed heavyweight champion of the RF adapter world. Custom-engineered for the massive WR2300 waveguide standard, it operates efficiently at the intersection of VHF and UHF bands (320 MHz to 490 MHz). This infrastructure-class unit is designed for high-energy physics, linear accelerators, plasma research, and extreme-range over-the-horizon radar systems. Weighing 20kg and rated for an astounding 5000 Watts (5kW CW) of continuous wave power handling, its colossal aluminum body ensures exceptional thermal capacity and structural rigidity required for mission-critical scientific and industrial transmission lines. Expertly developed and manufactured in Taiwan, it maintains pure Signal Integrity with an ultra-stable maximum VSWR profile of 1.3 : 1.
Electrical Specifications
| Frequency Range | 320 MHz to 490 MHz (VHF / UHF Band) |
| V.S.W.R (Max) | 1.3 : 1 |
| Maximum Power Handling | 5000 Watts (5kW CW) |
Env. & Mechanical Specifications
| Waveguide Size Standard | WR-2300 (R3) |
| Flange Type | UDR (Standard Rectangular) |
| Connector Type | N-Female Interface |

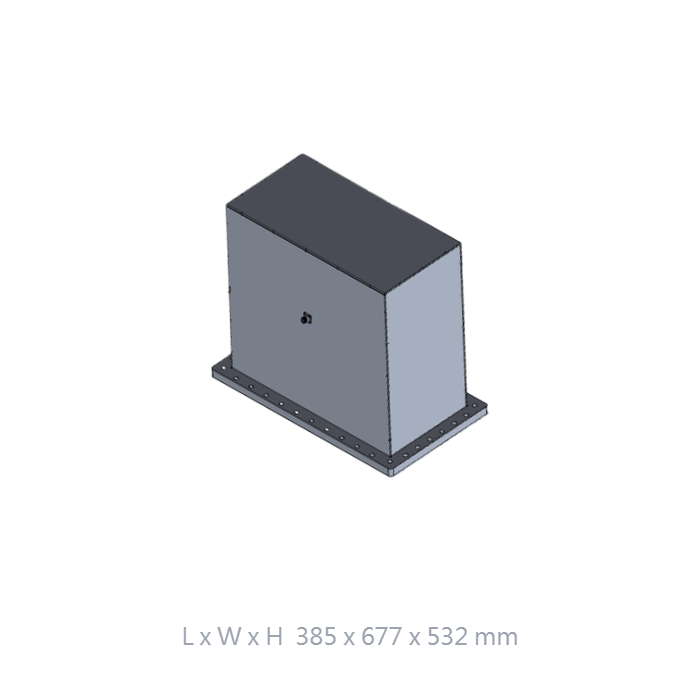

| Dimensions (W x H x L) | 385 x 677 x 532 mm |
| Net Weight | 20,000 g (20 kg Heavy Duty) |
| Body Material | Aerospace-Grade Machined Aluminum |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
5kW Extreme Power
The highest power rating in its class, capable of managing 5000 Watts continuous wave (CW) throughput safely for high-energy research and transmitter feeds.
WR2300 Mega-Scale
Precisely engineered for the enormous standardized R3 waveguide profile, enabling highly efficient transmission of long-wavelength signals across the VHF/UHF boundary.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under strict quality control standards, ensuring consistent performance parameters across severe laboratory configurations.
20KG Industrial Mass
A colossal 20kg aerospace-grade aluminum layout provides unmatched thermal sink stability and superior mechanical vibration dampening for static framework integration.
Get a Quote / Customization
Due to the extraordinary physical size and structural weight (20kg), please contact our engineering team for custom flange drilling configurations or specialized freight logistics handling.
