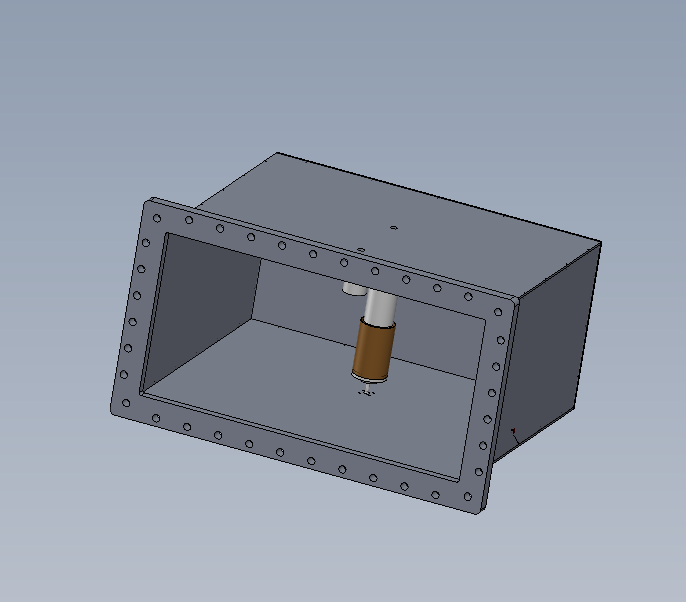

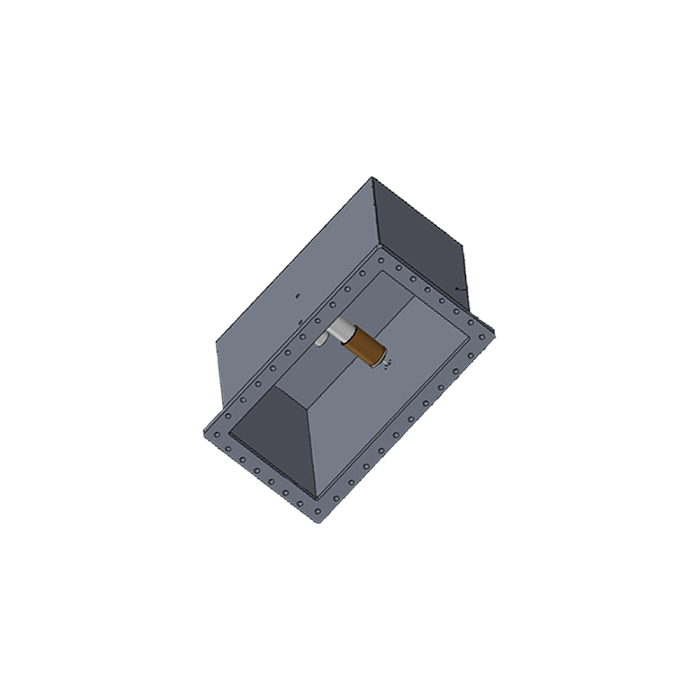

WC-2300-UDR-716F Waveguide to Coaxial Adapter
7/16 DIN 5kW High-Power Interface | Infrastructure Class WR-2300 | 320 MHz – 490 MHz
The WC-2300-UDR-716F is a massive, heavy-duty Waveguide to Coaxial Adapter professionally engineered for the WR-2300 standard. Operating within the 320 MHz to 490 MHz UHF band, this infrastructure-class 20kg component is essential for high-power broadcast transmitters, long-range radar sub-systems, and scientific particle accelerator applications. Featuring a robust 7/16 DIN Female connector with a standardized UDR waveguide flange configuration, it safely manages up to 5000 Watts (5kW CW) of continuous wave power while ensuring stable, low-loss transmission with superior Signal Integrity and a maximum VSWR profile of 1.3 : 1. Expertly designed and manufactured in Taiwan, it is built to satisfy the most demanding high-power industrial and scientific measurement standards.
Electrical & RF Performance
| Frequency Range | 320 MHz to 490 MHz (UHF Band) |
| V.S.W.R (Max) | 1.3 : 1 |
| Maximum Power Handling | 5000 Watts (5kW CW) |
| Impedance | 50 Ohm |
Mechanical & Construction
| Waveguide Standard | WR-2300 / R4 / WG1 |
| Waveguide Flange | UDR Style (Universal) |
| Coaxial Connector Type | 7/16 DIN Female (Low PIM) |

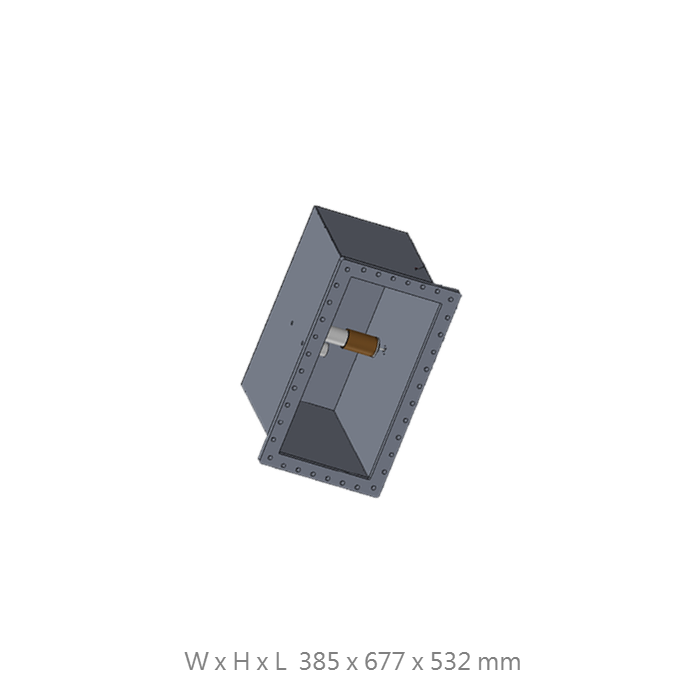

| Dimensions (W x H x L) | 385 x 677 x 532 mm |
| Net Weight | 20,000 g (20 kg Heavy Duty) |
| Body Material | Aerospace-Grade Machined Aluminum |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
5kW High-Power Domination
Engineered to handle extreme continuous power levels, making it the definitive choice for main transmission lines in regional broadcasting stations and high-intensity long-range radar systems.
Low PIM 7/16 DIN Interface
Equipped with a precision 7/16 DIN interface, offering vastly superior power handling and significantly lower intermodulation distortion (PIM) compared to standard coaxial configurations.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under strict quality controls, providing dependable structural flatness and enduring phase consistency.
Industrial Heavy-Duty Build
With a net weight of 20kg and substantial physical dimensions, this adapter ensures maximum mechanical stability and unwavering durability in demanding industrial environments.
Request a Professional Quote
Contact our engineering team for custom flange drilling patterns, heavy cargo logistics adjustments, alternative high-power connector options, or alternative waveguide lengths.
