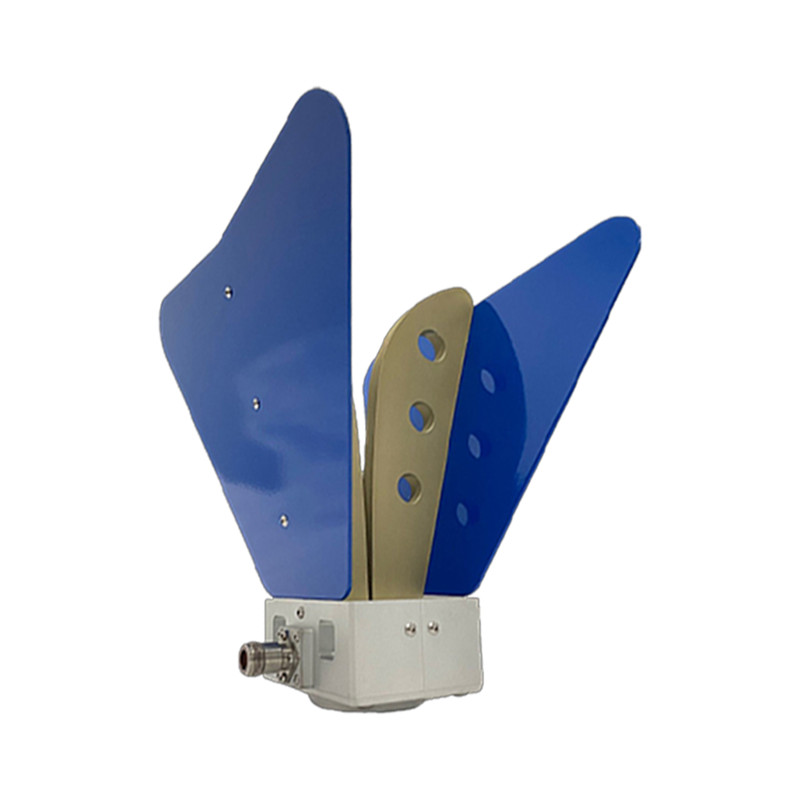

Open Boundary Double Ridged Horn Antenna
- Select
Precision RF Component
Standard Gain Horn Antenna
FT-RF premium horn antennas are engineered for mission-critical electromagnetic testing and satellite communications. Utilizing high-grade aluminum and precision-machined waveguides, our series ensures maximum Signal Integrity and ultra-low VSWR performance.
Stock Status: Limited Inventory - Ships within 3-5 working days
| Core Parameters | Technical Specifications |
|---|---|
| Frequency Range | 8.2 GHz to 12.4 GHz |
| Nominal Gain | 20 dBi |
| Maximum Power | 50 Watts (CW) |
| Dimensions | Precision Waveguide WR-90 |
| Connector Type | SMA-Female / N-Female Optional |
Rugged Construction
Designed for both laboratory environments and outdoor field testing with anti-corrosion coating.
Signal Integrity
Optimized internal waveguide surfaces minimize reflections and ensure stable radiation patterns.
Inquiry Now: info-tw@ft168.com.tw
ISO 9001:2015 Certified Manufacturing | Professional R&D Support
Made in Taiwan
| Frequency Range: | 700 MHz - 8 GHz |
| Antenna Type: | Double-Ridged Horn |
| Nominal Gain: | 2 dBi - 13 dBi |
| Connector: | N-Female |
Made in Taiwan
| Frequency Range: | 700 MHz - 18 GHz |
| Model: | HB-07M18G-NF |
| Nominal Gain: | 2 dBi - 18 dBi |
| Connector: | N-Female |
Made in Taiwan
| Frequency Range: | 800 MHz - 8 GHz |
| Model: | HB-08M08G-NF |
| Nominal Gain: | 3 dBi - 15 dBi |
| Connector: | N-Female (SUS) |
Made in Taiwan
| Frequency Range: | 800 MHz - 18 GHz |
| Antenna Type: | Double-Ridged Horn |
| Nominal Gain: | 3 dBi - 14 dBi |
| Connector: | N-Female |
