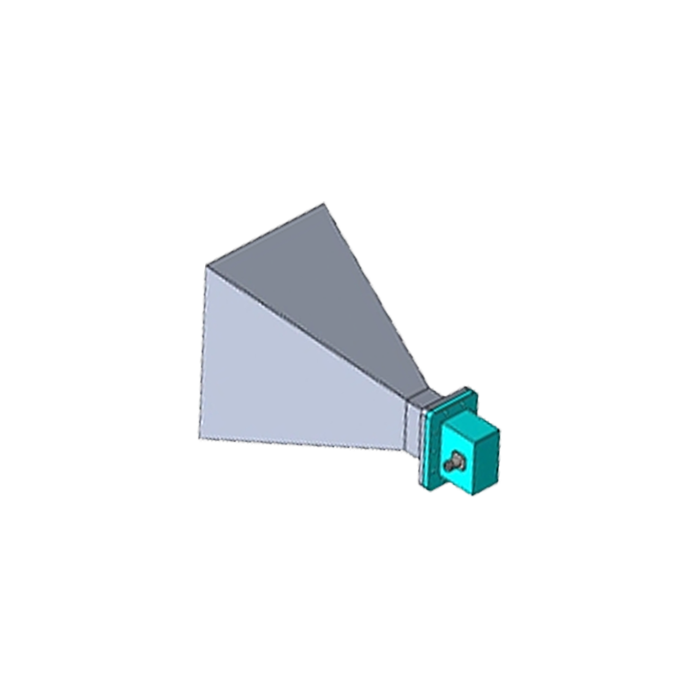

WR-340 (2.2 GHz to 3.3 GHz) 15dbi Waveguide Standard Horn N-Female Antenna, Flange: UDR

WR-340 (2.2 GHz to 3.3 GHz) 15dbi Waveguide Standard Horn N-Female Antenna, Flange: UDR

Model No: HS-340-UDR-15A-NF

Mechanical Drawing: Download

  • Waveguide: WR-340
  • Frequency: 2.2 GHz to 3.3 GHz
  • Gain: 15 dBi
Quantity:
INQUIRY

  • Description & Specification

  • Model: HS-340-UDR-15A-NF
  • Waveguide: WR-340
  • Frequency: 2.2 GHz to 3.3 GHz
  • Gain: 15 dBi
  • Max Power (W): 600W
  • -3dbi beamwidth H-plane: 32 deg
  • -3dbi beamwidth E-Plane: 32 deg
  • Size (mm): 309x238x472
  • Weight (g): 2200
  • Waveguide Flange: UDR
  • V.S.W.R: 1.25
  • Body Material: Aluminium
  • Connector: N-Female
