WR650 Waveguide Antenna

The WR650 Waveguide Input or Output Horn Antennas (without waveguide adapter) are intended for use in emissions and immunity testing from
Each antenna is linearly polarized and has a constant antenna factor, uniform gain, and low VSWR.
The antenna's only power-limiting component is the waveguide to coaxial adapter, which can be removed if high fields are desired.


WR650 Waveguide Input Horn Antenna frequency from 1.14 GHz to 1.73 GHz, 10dbi Gain, without waveguide adapter
WI-650-UDR-10

WR650 Waveguide Input Horn Antenna frequency from 1.14 GHz to 1.73 GHz, 10dbi Gain, without waveguide adapter

View Details
  • Original Model No.: WI-650-A1-10
  • Waveguide: WR-650
  • Frequency:1.15 to 1.72 GHz
  • Gain:10 dbi
WR650 Waveguide Input Horn Antenna frequency from 1.14 GHz to 1.73 GHz, 15dbi Gain, without waveguide adapter
WI-650-UDR-15

WR650 Waveguide Input Horn Antenna frequency from 1.14 GHz to 1.73 GHz, 15dbi Gain, without waveguide adapter

View Details
  • Original Model No.: WI-650-A1-15
  • Waveguide: WR-650
  • Frequency: 1.15 to 1.72 GHz
  • Gain: 15 dbi
  • Max Power(W):1000W

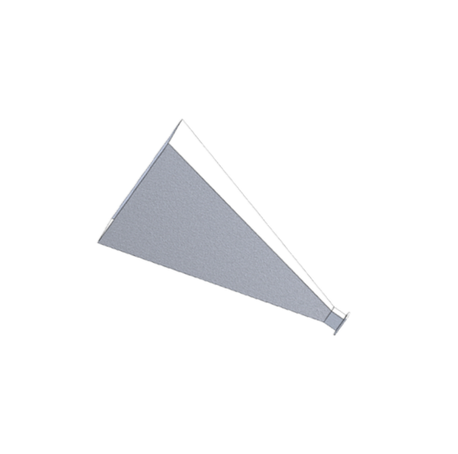

WR650 Waveguide Input Horn Antenna frequency from 1.14 GHz to 1.73 GHz, 20dbi Gain, without waveguide adapter
WI-650-UDR-20

WR650 Waveguide Input Horn Antenna frequency from 1.14 GHz to 1.73 GHz, 20dbi Gain, without waveguide adapter

View Details
  • Waveguide: WR-650
  • Frequency:1.15 to 1.72 GHz
  • Gain:20
  • Max Power(W):1000W
WR650 Waveguide to Coax Adapter, UDR Flange, 1.14 GHz to 1.73 GHz, SMA-Female Connector
WC-650-UDR-SF

WR650 Waveguide to Coax Adapter, UDR Flange, 1.14 GHz to 1.73 GHz, SMA-Female Connector

View Details
  • Waveguide: WR-650
  • Frequency: 1.14 GHz to 1.73 GHz
  • Max Power: 600W
