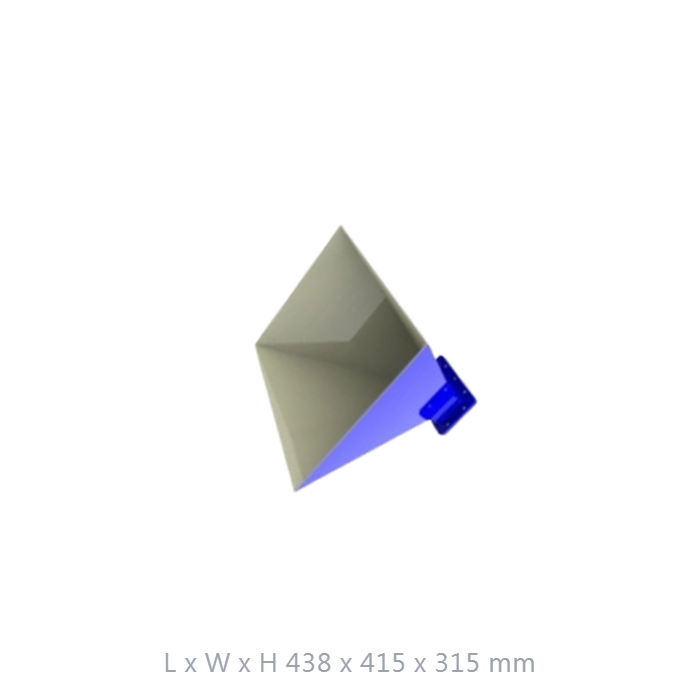

WR650 Waveguide Input Horn Antenna frequency from 1.14 GHz to 1.73 GHz, 15dbi Gain, without waveguide adapter

WR650 Waveguide Input Horn Antenna frequency from 1.14 GHz to 1.73 GHz, 15dbi Gain, without waveguide adapter

Model No: WI-650-UDR-15

Mechanical Drawing: Download

  • Original Model No.: WI-650-A1-15
  • Waveguide: WR-650
  • Frequency: 1.15 to 1.72 GHz
  • Gain: 15 dbi
  • Max Power(W):1000W
Quantity:
INQUIRY

  • Description

  • Specification

Application:

  • WR650 Waveguide Input Horn Antenna frequency from 1.14 GHz to 1.73 GHz
  • EMI/EMC testing
  • Antenna gain measurements.

Feature:

  • Meet international standards
  • Good appearance design

Custom design: (Please contact us: info-tw@ft168.com.tw)

  • Waterproof structure
  • PTZ Controlling function
  • Tripod or antenna mounting design
  • Customize Color

Electrical Specifications

Frequency Range

1.14GHz to 1.73GHz

V.S.W.R

1.3 :1 (avg)

Max Power

1000W

Radiation

Directional

Gain

14-16 dBi

Polarization

Vertical or Horizontal

Vertical Beam-width

28 Deg

Horizontal Beam-width

30 Deg

Antenna Design

 Waveguide Input Horn Antenna

Flange

UG417A/U

Waveguide

WR650 | WG6 | R14

Mechanical Specifications

Size

 415x315x438mm

Antenna Weight

3450

Accessories

N/A

Application

Indoor

Parts Material

Aluminum

Storage Temperature

-20 to +120

Operating Temperature

-20 to +80

Operating Humidity

10%~70% non-condensing

Storage Humidity

5%~50% non-condensing

Safety, Emission and other

RoHS
