Description & Specification

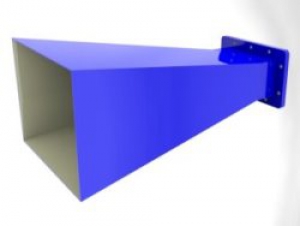

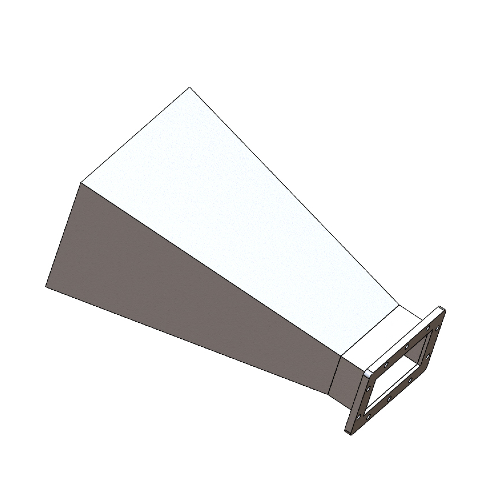

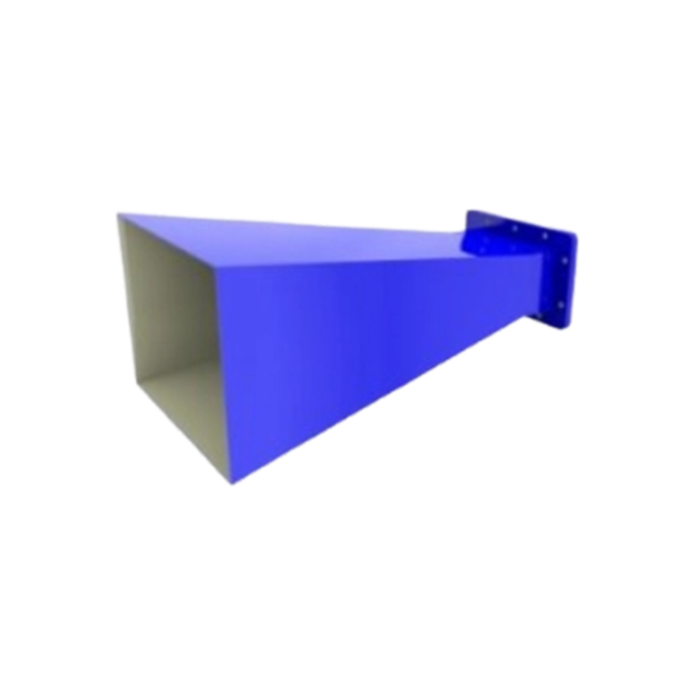

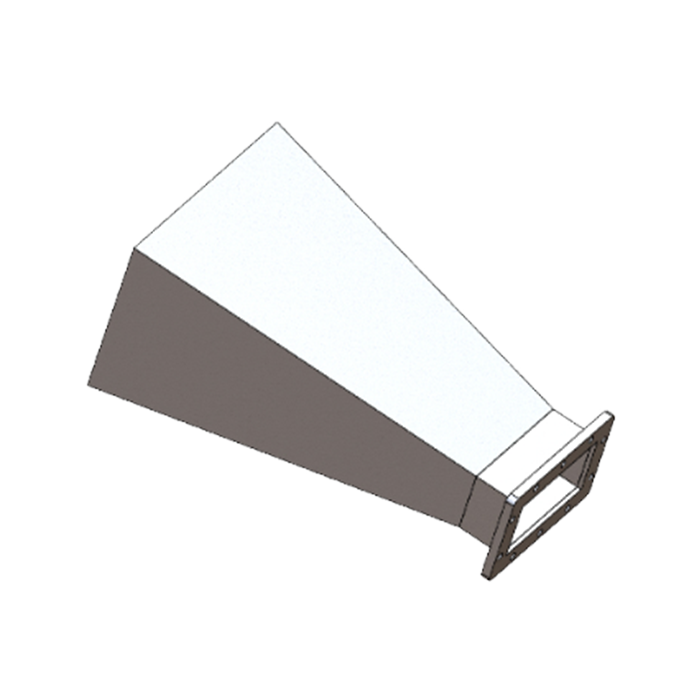

1.15 GHz to 1.72 GHz WR-650 Standard Gain Horn Antenna
Model: WI-650-UDR-10 | 10 dBi Gain | 1000W CW Power
The WI-650-UDR-10 is a high-performance Standard Gain Horn Antenna professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for strict compliance with the WR-650 standard. Operating within the 1.15 GHz to 1.72 GHz spectrum, this antenna delivers a consistent and precision-calibrated 10 dBi gain. Featuring a Direct Waveguide Input with a standardized UDR flange, it ensures low-loss power transfer for high-energy applications up to 1000 Watts (CW). Manufactured from high-grade structural aluminum alloy via precision CNC machining in Taiwan, it exhibits exceptional electromechanical longevity and excellent pattern stability. It stands as an essential instrument for EMI/EMC testing, antenna gain characterization, and precision radar calibration setups demanding uncompromised performance parameters.
Electrical & RF Performance
| Frequency Range | 1.15 to 1.72 GHz |
| Waveguide Standard | WR-650 / R14 / WG6 Layout Architecture |
| Nominal Gain | 10 dBi |
| V.S.W.R (Max) | 1.3 : 1 |
| -3dB Beamwidth (H-Plane) | 58° |
| -3dB Beamwidth (E-Plane) | 56° |
| Maximum Power Handling | 1000 Watts (CW) |
| Impedance | 50 Ohm |
Mechanical & Construction Data
| Dimensions (W x H x L) | 235 x 315 x 551 mm |
| Waveguide Flange | UDR Style Flange Layout |
| Net Weight | 2800 g (Heavy-Duty Robust Build) |
| Body Material | High-Grade Machined Aluminum |
| Input Interface | Direct Waveguide (No Adapter) |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Broad Band Precision
Optimized for the 1.15-1.72 GHz band, delivering the boresight accuracy and gain flatness required for advanced microwave link analysis and professional Signal Defense research.
Direct Waveguide Integration
Designed with a direct WR-650 interface for ultra-low-loss power transfer, eliminating transition losses associated with adapters in high-precision measurement setups.
1000W High-Power Stability
Robustly machined from premium aluminum to handle high 1000W CW power loads while maintaining structural integrity during intensive laboratory or field operations.
Compact Mechanical Footprint
Features a highly compact aperture design, making it ideal for space-constrained measurement chambers and portable scanning infrastructures.
Contact FT-RF Engineering Team
Contact our engineering team for specialized gain calibration data, custom mounting solutions, or technical support regarding high-gain broadband setups.
