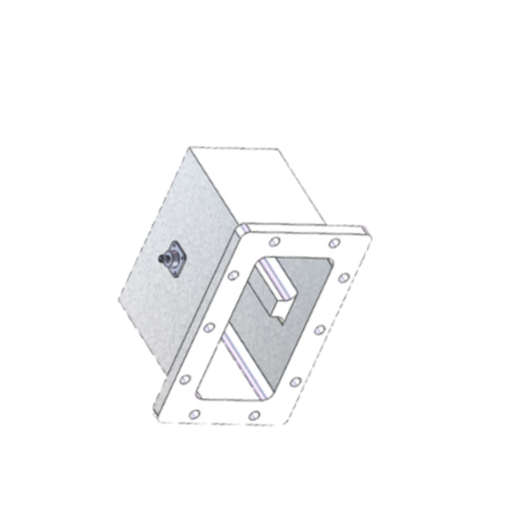

| Frequency Range | 1.14 GHz to 1.73 GHz (L-Band Spectrum) |
| V.S.W.R (Max Profile) | ≤ 1.25 : 1 |
| Maximum Power Handling | 600 Watts (CW Continuous Wave) |
| Nominal Impedance | 50 Ohms |
| Waveguide Size Standard | EIA WR-650 (R14 / WG6 Layout) |
| Waveguide Flange Designation | UDR Style Flange (UG417A/U Style Compatible Layout) |
| Coaxial Connector Interface | SMA-Female Interface Premium Port |

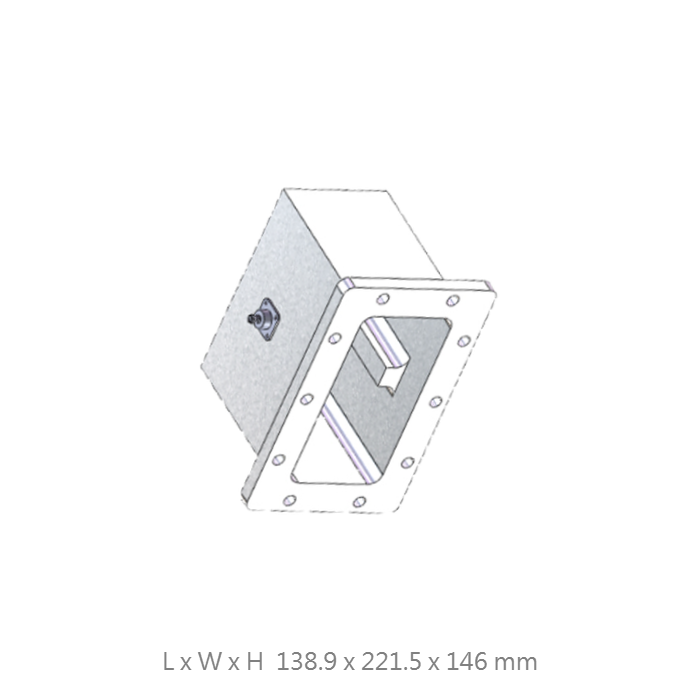

| Physical Dimensions (L x W x H) | 138.9 x 221.5 x 146 mm |
| Net Weight | 2200 g (2.2 kg Industrial Heavy-Duty Architecture Build) |
| Body Material Profile | High-Grade Precision Machined Aluminum |
| Connector Interface Material | Premium Wear-Resistant Stainless Steel (SUS) |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
Perfectly matched for use with WR-650 standard gain horn antennas, ensuring optimal mechanical and electrical mode matching during broadband L-band measurements.
Engineered to handle robust continuous wave power loads up to 600W CW reliably without thermal breakdown, making it a primary component for high-intensity L-band radiators and transmitters.
Precision designed and manufactured in Taiwan under strict industrial quality control parameters, ensuring consistent internal launcher dimensions, absolute flat positioning alignment, and calibration constancy.
Fully compliant with international rectangular WR-650 and UG417A/U layouts, ensuring seamless mechanical and electrical compatibility with global industrial RF hardware assemblies.
Utilizes a high-durability stainless steel (SUS) SMA-Female interface for superior corrosion resistance, uncompromised signal shielding, and exceptional mechanical longevity in tactical deployments.
Contact our technical engineering team today to request certified individual V.S.W.R plot metrics, alternative custom flange drilling patterns, specialized waterproof structures, or custom color coatings.
