  • WR2100 Waveguide Input Antenna (WI Series)

WR2100 Waveguide Input Antenna (WI Series)

WI Series • VHF Band (350 – 530 MHz)

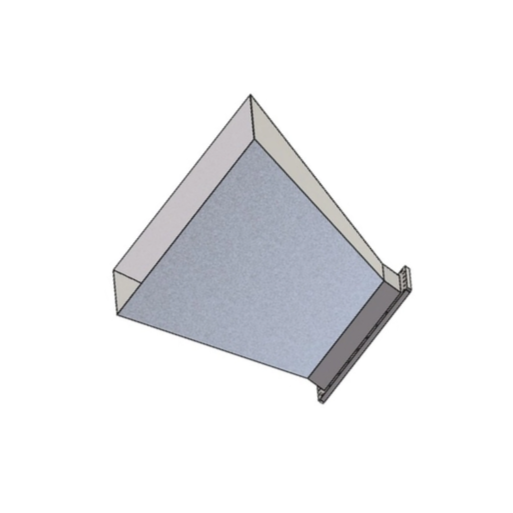

FT-RF WR2100 Waveguide Input Antenna



FT-RF WR2100 Waveguide Input Antenna delivers direct WR2100 rectangular flange feeds across low-frequency VHF/UHF EMC chamber calibration and high-power radiated immunity setups (350 MHz to 530 MHz).

FT-RF WR2100 Waveguide Input Antenna

Manufactured from high-strength structural aluminum, WR2100 horns provide exceptional physical stability under high continuous power handling while ensuring highly repeatable measurement results.

🛠️ Engineering & Customization Options

Tailored structural designs and custom bracket options:

  • Custom Dimensions: Tailored flare lengths & holes.
  • Phase-Matched Sets: Gain and phase matched pairs.
  • Rigging Mounts: Crane eyes & heavy-duty brackets.
Direct Support: info-tw@ft168.com.tw
Parameter Technical Specifications
Frequency Range 350 MHz to 530 MHz (VHF Band)
Input Interface Direct WR2100 Waveguide Flange Feed
Available Gain 10 dBi, 15 dBi, 20 dBi
Flange Configuration CPR2100F Cover Flange
Certifications ISO 9001:2015 / RoHS Compliant
We provide professional ODM, OEM, and R&D services to meet your specific technical requirements.
For further technical details or customized solutions, please contact us for details.
Back to WI Series Main Page
WR-2100 350 MHz to 500 MHz 10dbi Waveguide Horn Antenna, UDR Flange without Adapter NEW
WI-2100-UDR-10

WR-2100 350 MHz to 500 MHz 10dbi Waveguide Horn Antenna, UDR Flange without Adapter

View Details
FT-RF
Frequency Range: 350 - 500 MHz
Antenna Type: Standard Horn Antenna
Nominal Gain: 10 dBi Typical
Waveguide Size: WR-2100 (UDR / 5000W)
Stock: 0
