WR51 Standard Gain Horn Antenna

WR51 15 to 22 GHz 20dbi Standard Gain Waveguide Horn Antenna, 20 dbi
HS-051-UBR-20A-KF

WR51 15 to 22 GHz 20dbi Standard Gain Waveguide Horn Antenna, K-Female Connector

View Details
  • Waveguide Type: WR-51
  • Frequency: 15GHz to 22GHz<
  • Waveguide Coaxial Adapter Model: WC-51-UBR-KF
  • Waveguide input Model: WI-51-UBR-15
  • Connector: K-Female
  • V.S.W.R: 1.25
  • Gain: 20 dBi
  • Wieght(g):
  • Size(mm):
WR42 18GHz to 26.5GHz 10dbi Stand Gain Waveguide Horn Flange Type:01 Antenna
HS-051-UBR-15A-KF

WR51 15 GHz to 22 GHz 15dbi Standard Gain Waveguide Horn Antenna, UBR Flange, K-Female Connector

View Details
  • Waveguide Type: WR-51
  • Frequency: 15GHz to 22GHz
  • Waveguide Coaxial Adapter Model: WC-51-UBR-KF
  • Waveguide input Model: WI-51-UBR-15
  • Connector: K-Female
  • V.S.W.R: 1.25
  • Gain: 15 dBi
  • Wieght(g): 75
  • Size(mm): 35x45x93

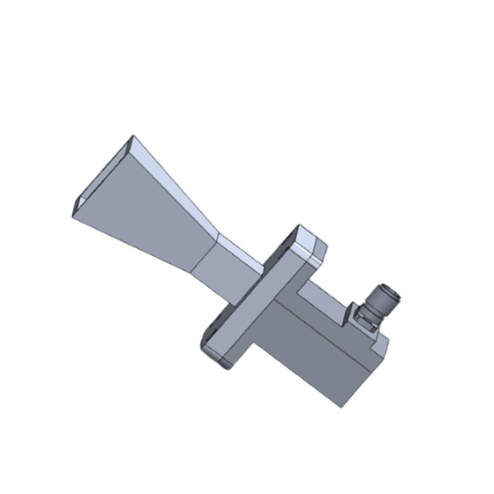

WR51 Standard Gain Waveguide Horn Antenna, 15 GHz to 22 GHz, 10dbi, K-Female Connector
HS-051-UBR-10A-KF

WR51 Standard Gain Waveguide Horn Antenna, 15 GHz to 22 GHz, 10dbi, K-Female Connector

View Details
  • Waveguide Type: WR-51
  • Frequency: 15GHz to 22GHz
  • Waveguide Coaxial Adapter Model: WC-51-UBR-KF
  • Waveguide input Model: WI-42-UBR-25
  • Connector: K-Female
  • V.S.W.R: 1.25
  • Gain: 10 dBi
  • Wieght(g): 75
  • Size(mm): 35.65x33.3x75
