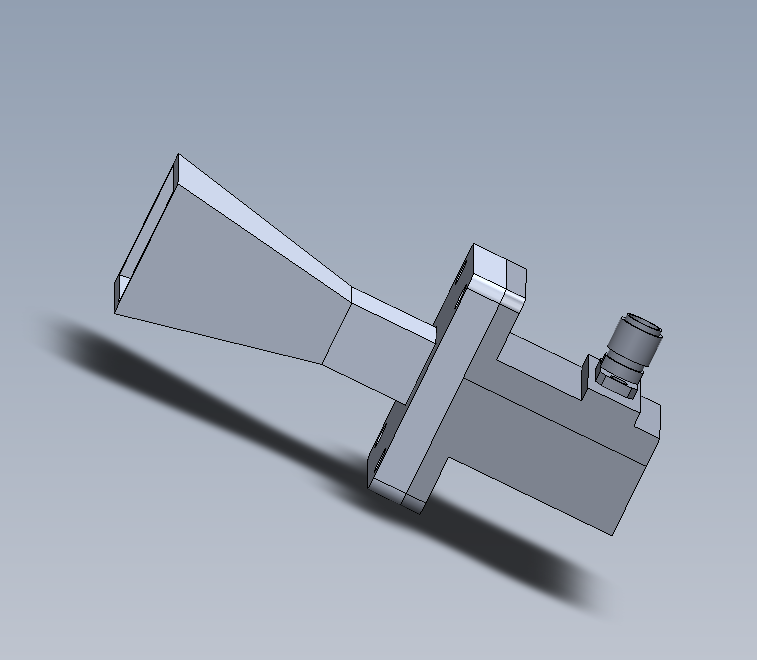

Ku-Band Standard Gain Horn
WR-51 Waveguide | 15 GHz – 22 GHz | 10 dBi
The HS-051-UBR-10A-KF is a high-precision standard gain horn antenna professionally engineered for Ku-band microwave applications. Operating across the 15 GHz to 22 GHz frequency range, it features a standardized WR-51 waveguide interface with a UBR flange. Delivering a stable nominal gain of 10 dBi, it is an essential instrument for Signal Integrity verification, antenna gain calibration, and professional laboratory setups where mechanical structural reliability and electrical accuracy are paramount.
Technical Specifications
Electrical RF Performance
| Frequency Range | 15 GHz - 22 GHz (Ku-Band) |
| Antenna Type | Standard Gain Horn |
| Nominal Gain | 10 dBi |
| V.S.W.R | 1.25 : 1 (Typical) |
| -3dB Beamwidth | Horizontal: 54° | Vertical: 54° |
| Maximum Input Power | 200 Watts |
Mechanical & Interface Data
| Connector Type | Stainless Steel 2.92mm-Female (K) |
| Waveguide / Flange | WR-51 / UBR |

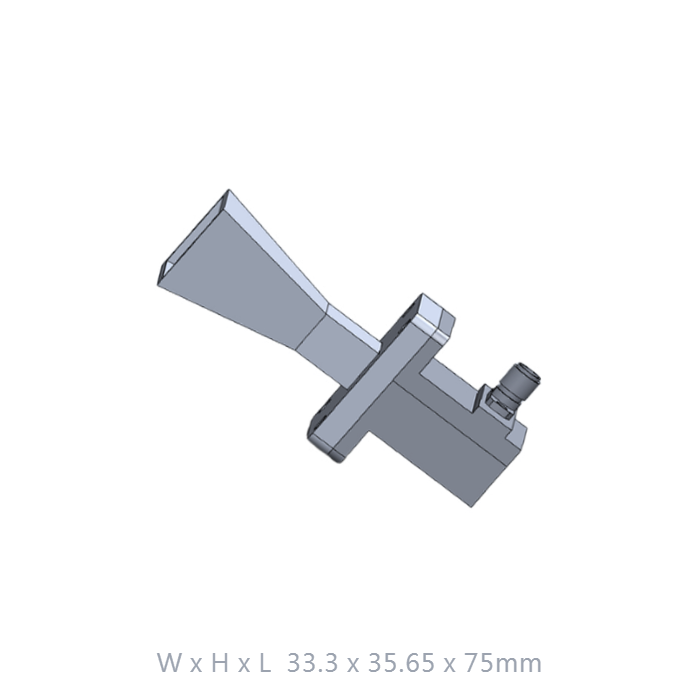

| Dimensions (L x W x H) | 75 x 33.3 x 35.65 mm |
| Antenna Weight | 75 g (Precision Aluminum Alloy) |
| Manufacturing Origin | Taiwan Design & Made in Taiwan |
Professional Tactical Features
Ku-Band Precision Beam
Engineered for the 15-22 GHz spectrum, providing highly stable electrical performance and minimal losses for critical Signal Integrity measurements in microwave systems.
Superior Gain Consistency
Delivers a uniform gain profile for high-accuracy antenna calibration, making it an ideal reference device for measuring the gain of secondary RF systems.
Stainless Steel K Interface
Equipped with a high-durability stainless steel 2.92mm (K) connector to ensure reliable mating cycles and low-loss performance in rigorous laboratory environments.
Custom Engineering Flexibility
Available for specialized modifications including waterproof structures, PTZ control integration, and customized color finishes to meet specific project requirements.
Inquire About Ku-Band Solutions
Contact our engineering team for specialized gain calibration data, consolidated performance databases, or technical support regarding high-frequency measurement setups.
