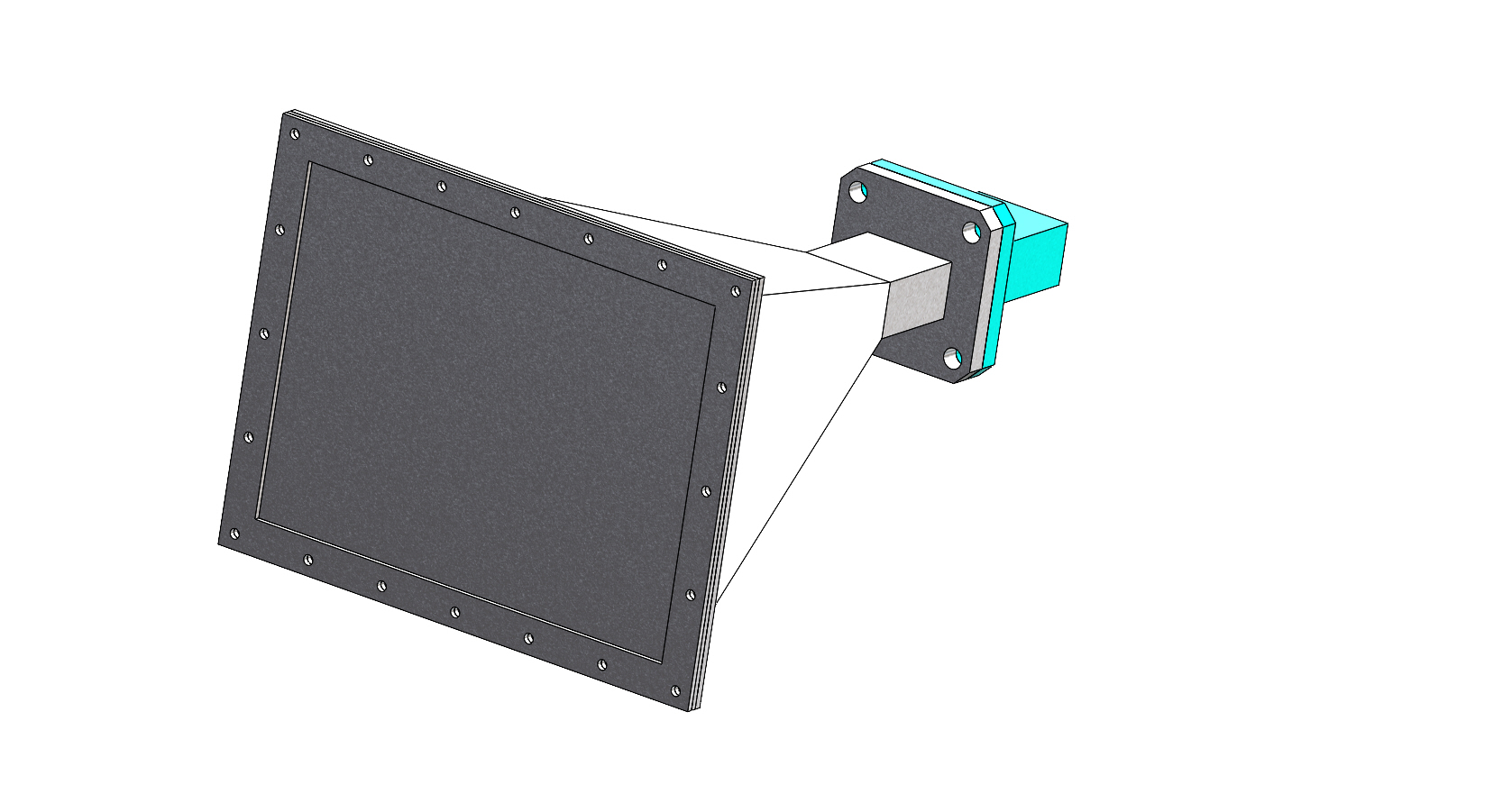

12.4 GHz to 18 GHz WR-62 Standard Gain Horn Antenna
Model: HS-062-20-R-SF | 20 dBi Gain | Ku-Band Precision
The HS-062-20-R-SF is a high-precision WR-62 Waveguide Horn Antenna professionally engineered for Ku-Band microwave applications within the 12.4 GHz to 18 GHz spectrum. Optimized for professional Signal Security operations and high-fidelity laboratory testing, it delivers a consistent 20 dBi gain profile. Featuring a ruggedized aluminum body and a precision SMA-Female connector, this antenna ensures unwavering Signal Integrity and stability for advanced Signal Defense deployments and radar system measurements.
Technical Specifications
Electrical Performance
| Waveguide Standard | WR-62 (WG18 / R140) |
| Frequency Range | 12.4 - 18 GHz (Ku-Band) |
| Nominal Gain | 20 dBi |
| V.S.W.R (Max) | 1.25 : 1 |
| 3dB Beamwidth (H/E Plane) | 19° / 18° |
| Maximum Power Handling | 250 Watts (CW) |
| Impedance | 50 Ohm |
Mechanical & Construction

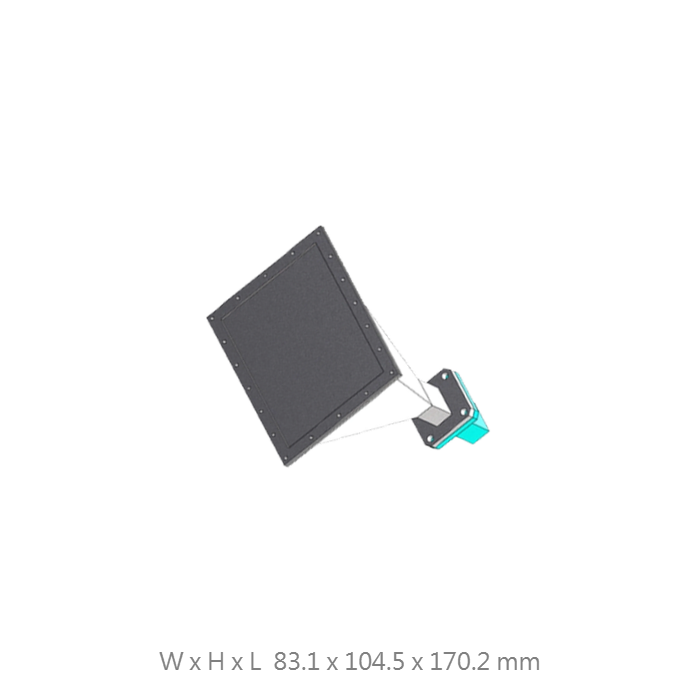

| Dimensions (W x H x L) | 83.1 x 104.5 x 170.2 mm |
| Net Weight | 170 g (Precision Design) |
| Flange Compatibility | UG-419/U or UG-541A/U |
| Body Material | Premium Grade Aluminum |
| Connector Type | SMA-Female |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Key Tactical & Lab Features
Precision Signal Integrity
Optimized internal transition geometry ensures minimal signal reflection and low insertion loss across the entire Ku-Band spectrum for repeatable lab results.
Ruggedized Thermal Build
Manufactured from premium aluminum to ensure superior heat dissipation and maximum structural stability during long-term field or laboratory deployments.
Ku-Band Spectrum Security
Engineered to support Signal Defense infrastructure, providing a reliable reference radiator for interference mitigation and professional signal management.
Standardized Flange Interface
Fully compatible with UG-419/U and UG-541A/U flanges for secure mechanical integration into existing professional microwave sub-systems.
Request a Professional Quote
Contact our engineering team to obtain individual calibration data, VSWR plots, or customized waveguide flange requirements.
