Description & Specification
WR-112 Standard Gain Horn Antenna with SMA Adapter
Model: HS-112-UBR-10A-SF | 7.05 - 10.0 GHz | 10 dBi | 220W
The HS-112-UBR-10A-SF is a high-precision Standard Gain Horn Antenna professionally integrated with a low-loss waveguide-to-coaxial adapter. Operating within the 7.05 GHz to 10.0 GHz X-Band spectrum, this compact antenna provides a consistent 10 dBi gain and excellent return loss (VSWR 1.25). Precision-manufactured from high-grade aluminum with a durable Stainless Steel SMA-Female interface, it is an essential instrument for EMI/EMC Testing and antenna gain measurement, ensuring superior Signal Integrity for mission-critical RF deployments.
Technical Specifications
Electrical & RF Performance
| Waveguide Standard | WR-112 (R84) |
| Frequency Range | 7.05 GHz to 10.0 GHz |
| Standard Gain | 10 dBi |
| Maximum Power Handling | 220 Watts (CW) |
| V.S.W.R (Max) | 1.25 : 1 |
| -3dB Beamwidth (H / E Plane) | 52° / 50° |
Mechanical & Physical Specs

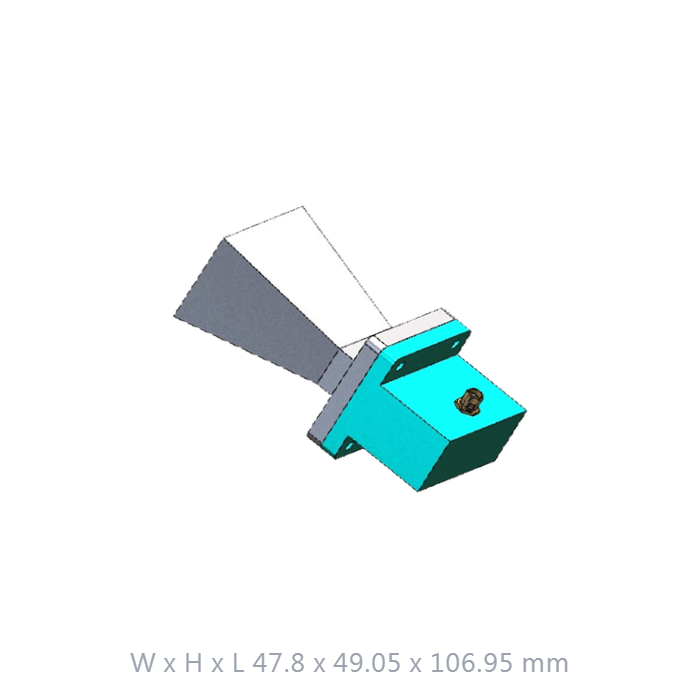

| Dimensions (WxHxL) | 47.8 x 49.05 x 106.95 mm |
| Net Weight | 195 g |
| Waveguide Flange | UBR Style |
| Coaxial Connector | SMA-Female (Stainless Steel / SUS) |
| Material | High-Grade Aluminum |
| Origin | Made in Taiwan (FT-RF) |
Key Tactical Features
X-Band Signal Integrity
Optimized for the 7.05-10.0 GHz band, delivering the boresight accuracy and gain consistency required for high-fidelity antenna calibration.
Heavy-Duty SUS Interface
Equipped with a high-durability stainless steel SMA interface, ensuring reliable electrical contact and structural wear resistance for repeated lab use.
Ultra-Compact Radiator
Weighing only 195g, this compact horn antenna ensures minimal load on precision laboratory positioners while maintaining high structural rigidity.
Customizable Infrastructure
Available with options for waterproof builds, PTZ control functions, and specialized mounting designs for diverse tactical field requirements.
Get a Quote / Custom RF Solutions
Contact us for specialized PTZ control, waterproof structures, or custom mounting interfaces.
