C/X-Band Precision Standard Gain Horn
WR-112 Waveguide | 7.05 GHz – 10 GHz | 10 dBi Gain
The HS-112-UBR-10A-NF is a high-precision standard gain horn antenna professionally engineered for broadband microwave measurements and laboratory calibration within the C and X-band spectrum. Operating from 7.05 GHz to 10 GHz, it features a standardized WR-112 waveguide interface and high-durability Stainless Steel N-Female connector. Delivering a stable 10 dBi gain with optimized beam symmetry, this compact antenna is an essential component for Signal Integrity verification, antenna gain calibration, and professional EMI/EMC testing where traceable accuracy and mechanical reliability are paramount.
Technical Specifications
Electrical RF Performance
[Image of standard gain horn antenna radiation pattern]
| Frequency Range | 7.05 GHz - 10 GHz |
| Antenna Type | Standard Gain Horn |
| Nominal Gain | 10 dBi |
| V.S.W.R | 1.25 : 1 (Typical) |
| -3dB Beamwidth | H-Plane: 52° | E-Plane: 50° |
| Maximum Power Handling | 260 Watts |
Mechanical & Interface Data
| Connector Type | N-Female (Stainless Steel / SUS) |
| Waveguide / Flange | WR-112 / UBR Architecture |

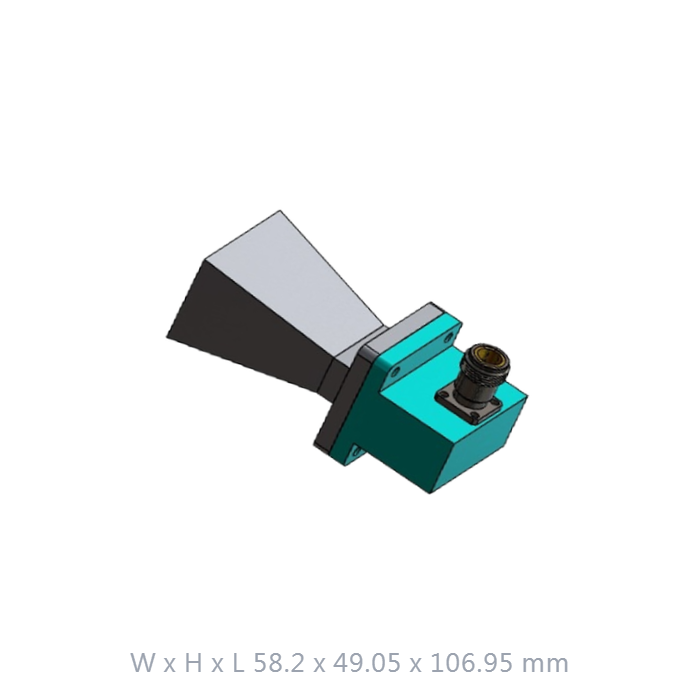

| Dimensions (WxHxL) | 58.2 x 49.05 x 106.95 mm |
| Net Weight | 210 g |
| Body Material | Industrial Grade Aluminum Alloy |
| Manufacturing Origin | Taiwan Design & Made in Taiwan |
Professional Tactical Features
Broadband Precision Integrity
Designed specifically for the 7.05-10 GHz spectrum, providing highly stable electrical performance and low loss for critical Signal Integrity measurements.
Industrial SUS Interface
Equipped with a precision stainless steel (SUS) N-Female connector to ensure reliable mating cycles and standardized connectivity with professional RF test equipment.
Compact Structural Design
Ultra-lightweight aluminum alloy construction (210g) ensures exceptional mechanical rigidity and thermal stability during continuous laboratory duty cycles.
Advanced Customization
Available for specialized modifications including waterproof structures, PTZ control integration, tripod mounting, and custom color finishes.
Inquire About Custom Solutions
Contact our engineering team for specialized gain data, waterproof mounting options, or technical support regarding broadband measurement setups.
