Comprehensive RF Adapter & Connector Portfolio
Precision engineered interconnect solutions for DC to 67 GHz applications.
1. Precision Millimeter Wave & High-Frequency Adapters
| Product Description | Interface Configuration |
|---|---|
| 1.85mm to 2.92mm Precision Adapter | Male to Female (Series 7) |
| 2.4mm Precision Series | Bulkhead, Right-Angle, Flange, M/F Adapters (Series 49-56) |
| 2.92mm (K) Precision Series | Bulkhead, Right-Angle, Flange, M/F Adapters (Series 41-48) |
| 3.5mm Precision Series | Bulkhead, Flange, M/M, M/F Adapters (Series 66-69) |
2. Standard SMA & N-Type Coaxial Adapters
| Product Description | Interface Configuration |
|---|---|

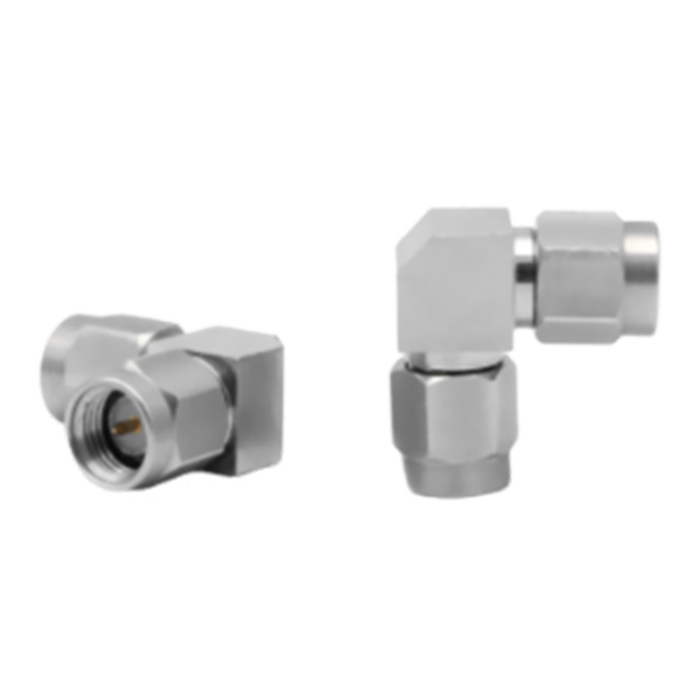

| SMA to SMA In-Series | M/M, F/F, M/F, Right-Angle, Bulkhead (Series 2, 12-26, 61-63) |
| N to N In-Series | M/M, F/F, Bulkhead (Series 3-5, 40, 64-65) |
| Between-Series: SMA to N | Male/Female Cross-Configurations (Series 8-11) |
| Specialized: 2.92mm to SMA | Male to Male (Series 6) |
3. RF Connectors & Cable Termination (Crimp/Clamp)
| Model / Series | Termination Type & Cable Match |
|---|---|
| N-Type Connectors (Series 31-39) | Bulkhead, Flange, Crimp/Clamp (RG316, RG142, LMR400) |
| SMA / RP-SMA Connectors (Series 27-30) | Male Clamp, Right-Angle, Reverse Polarity Options |
Precision RF Adapter Millimeter Wave Signal Integrity Coaxial Interconnect SMA N-Type 2.92mm FT-RF Global
| Frequency: | DC~18GHz |
| VSWR: | ≤1.20:1 |
| Impedance: | 50Ω |
| Durability: | 500 cycles |
| Temperature: | -55℃～+165℃ |
| Frequency: | DC～18GHz |
| VSWR: | ≤1.20:1 |
| Impedance: | 50Ω |
| Durability: | 500 Cycles |
| Temperature: | -55℃～+165℃ |
| Frequency: | DC～18GHz |
| VSWR: | ≤1.20:1 |
| Impedance: | 50Ω |
| Durability: | 500 Cycles |
| Temperature: | -55℃～+165℃ |
| Frequency: | DC~18GHz |
| VSWR: | ≤1.20:1 |
| Impedance: | 50Ω |
| Durability: | 500 Cycles |
| Temperature: | -55℃～+165℃ |
| Frequency: | DC~26.5GHz |
| VSWR: | ≤1.20:1 |
| Impedance: | 50Ω |
| Durability: | 500 Cycles |
| Temperature: | -55℃～+165℃ |
| Frequency: | DC～40GHz |
| VSWR: | ≤1.20:1 |
| Impedance: | 50Ω |
| Durability: | 500 Cycles |
| Temperature: | -55℃～+165℃ |
| Model: | SMA/N-KKG |
| Frequency: | DC~18GHz |
| VSWR: | ≤1.20:1 |
| Durability: | 500 cycles |
| Model: | AD-00NM0SAF18-AA |
| Frequency: | DC~18GHz |
| VSWR: | ≤1.20:1 |
| Durability: | 500 cycles |
| Frequency: | DC~18GHz |
| VSWR: | ≤1.20:1 |
| Durability: | 500 cycles |
| Frequency Range: | DC - 18 GHz |
| V.S.W.R: | ≤ 1.20 : 1 |
| Connectors: | SMA Male to N Male |
| Durability: | 500 Cycles |
| Model: | SMA-KKYG |
| Frequency: | DC~18GHz |
| VSWR: | ≤1.20:1 |
| Durability: | 500 cycles |
| Frequency: | DC~6GHz |
| VSWR: | ≤1.15:1 |
| Impedance: | 50Ω |
| Durability: | 500 cycles |
