Description & Specification

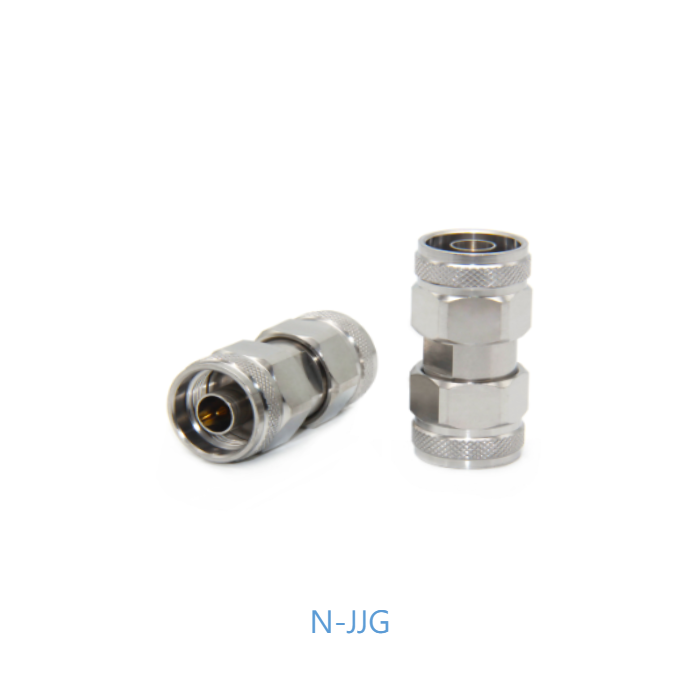

DC to 18 GHz, N-Type Male to N-Type Male Precision Adapter
The N-JJG is a high-performance Industrial Grade coaxial adapter designed for seamless signal transition and precision coupling up to 18 GHz. Engineered for laboratory excellence and Signal Integrity, it provides an ultra-stable 50 Ohm interface with minimal signal loss and reflection (V.S.W.R ≤ 1.20 : 1). Made in Taiwan with passivated stainless steel and high-grade alloys, this adapter is a critical component for high-frequency RF testing, microwave instrumentation, and advanced Signal Management across professional wireless deployments.
Technical Specifications
| Frequency Range | DC to 18 GHz |
| V.S.W.R | ≤ 1.20 : 1 |
| Impedance | 50 Ohm |
| Connector Interface | N-Male to N-Male |
| Durability | 500 Mating Cycles |
| Operating Temperature | -55°C to +165°C |
| Body Material | Passivated Stainless Steel / High-Grade Alloy |
| Dielectric Withstand Voltage | 1000 V |
Professional Tactical Features
Broadband Precision Signal Integrity
Ensures ultra-low VSWR across the 18 GHz spectrum, providing reliable measurements for Ku-band satellite and Wi-Fi 6E Signal Integrity testing.
Extreme Thermal Stability
Specifically engineered to operate from -55°C to +165°C, providing robust Signal Management in aerospace, defense, and environmental chambers.
Made in Taiwan Excellence
Precision-machined in Taiwan with passivated stainless steel for maximum EMI/RFI shielding and superior phase-stable performance.
