WR34 Waveguide Adapter (WC Series)
- Select
WC Series • K-Band (22.0 – 33.0 GHz)

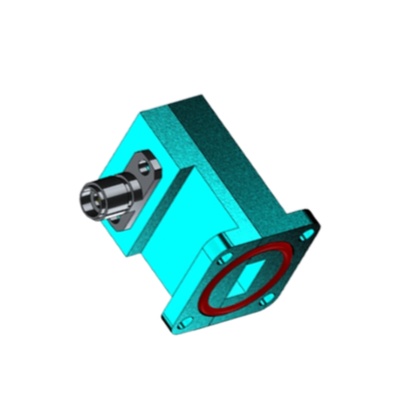

FT-RF WR34 Waveguide to Coaxial Adapter
FT-RF WR34 Waveguide to Coaxial Adapters deliver low insertion loss and high-efficiency mode transition across K-Band (22.0 GHz to 33.0 GHz). Built from passivated aluminum with precision 2.92mm / SMA coaxial interfaces and FBP260 flanges, they ensure exceptional return loss performance and clean Signal Integrity.
Manufactured with strict mechanical tolerances, these adapters convert TE10 waveguide modes to 50 Ω coaxial transmission lines cleanly and reliably. They serve as essential interconnects for SatCom ground terminals, microwave links, and high-frequency laboratory measurement setups.
🛠️ Engineering & Customization Options
Tailored structural designs and custom launch options:
- Custom Flange Styles: CPR, UBR, or FBP alignment pins.
- High-Power CW Options: Enhanced power handling feeds.
- In-Line Launchers: End-launch designs for tight spaces.
Direct Support: info-tw@ft168.com.tw
| Parameter | Technical Specifications |
|---|---|
| Frequency Range | 22.0 GHz to 33.0 GHz (K-Band) |
| Coaxial Interface | 2.92mm / SMA Female (50 Ω Nominal) |
| VSWR Performance | < 1.25 : 1 Typical |
| Flange Configuration | FBP260 / UG-1530/U Cover Flange |
| Certifications | ISO 9001:2015 / RoHS Compliant |
FT-RF
| Frequency Range: | 22.0 - 33.0 GHz |
| Antenna Type: | Waveguide to Coaxial Adapter |
| Nominal Gain: | Standard (WR34) |
| Waveguide Size: | WR-34 (R260 / 2.92mm K-F) |
| Stock: | 0 |
| 2026/06/11 | |
WC-34-UBR-E1-KF
WR34 Waveguide to Coaxial Adapter 22 GHz to 33 GHz, Flange: UBR, End-Launch K-Female Connector
View Details
FT-RF
| Frequency Range: | 22.0 - 33.0 GHz |
| Antenna Type: | Waveguide to Coaxial Adapter |
| Nominal Gain: | 250 Watts (CW) |
| Waveguide Size: | WR-34 (UG-1530/U / 2.92mm K-F) |
| Stock: | 6 |
| 2026/06/09 | |
FT-RF
| Frequency Range: | 22.0 - 33.0 GHz |
| Antenna Type: | Waveguide to Coaxial Adapter |
| Nominal Gain: | 250 Watts (CW) |
| Waveguide Size: | WR-34 (Ka-Band / K-F) |
| Stock: | 2 |
| 2026/06/09 | |
