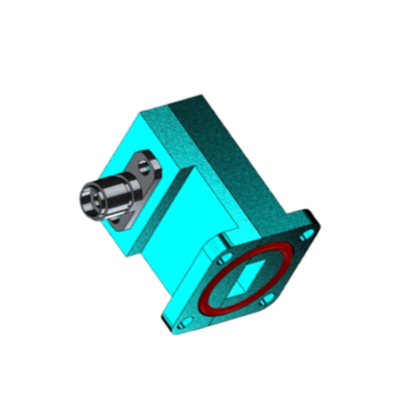

22 GHz to 33 GHz WR-34 Waveguide to Coaxial Adapter
Model: WC-34-PBR-KF | K-Female Connector | 250W Max Power
The WC-34-PBR-KF [cite: 107] is a high-performance Waveguide to Coaxial Adapter professionally engineered for precision Ka-Band operations within the 22 GHz to 33 GHz spectrum[cite: 108]. Optimized for professional Signal Security operations and mission-critical microwave links. Featuring a precision-machined aluminum body and robust 250W power handling[cite: 108], it ensures low insertion loss and unwavering stability for advanced Signal Defense deployments and high-frequency laboratory measurements.
Technical Specifications
Electrical Performance
| Frequency Range | 22 - 33 GHz |
| Waveguide Standard | WR-34 / R260 / WG21 |
| V.S.W.R (Max) | 1.25 : 1 |
| Maximum Power Handling | 250 Watts (CW) |
| Impedance | 50 Ohm |
Mechanical & Construction

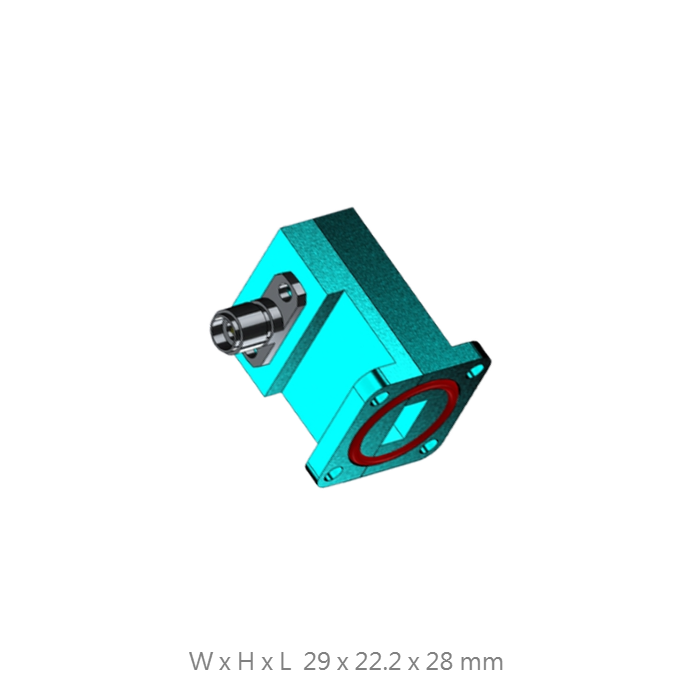

| Dimensions (W x H x L) | 29 x 22.2 x 28 mm |
| Flange Type | PBR 260 / UG-1530/U Compatible |
| Body Material | High-Grade Aluminum |
| Connector Type | 2.92mm K-Female (Stainless Steel) |
| Net Weight | 20 g |
| Manufacturing Origin | Taiwan Design / Made in Taiwan |
Key Tactical & Lab Features
250W High-Power Domination
Engineered with superior thermal management to handle massive continuous power loads up to 250W[cite: 108], ideal for high-intensity laboratory testing and signal management.
Precision Signal Integrity
Optimized internal transition geometry ensures a maximum V.S.W.R of 1.25[cite: 111], delivering minimal signal reflection across the entire 22-33 GHz operating spectrum.
Tactical Signal Security
Designed to support Signal Defense infrastructure, providing a reliable link for interference mitigation and professional Ka-Band surveillance.
Industrial Aluminum Build
Machined from high-grade aluminum [cite: 112] to ensure structural rigidity and maximum stability in demanding millimeter-wave deployments.
Request a Professional Quote
Contact our engineering team to obtain individual V.S.W.R plots, customized flange requirements, or integrated RF sub-assembly solutions.
