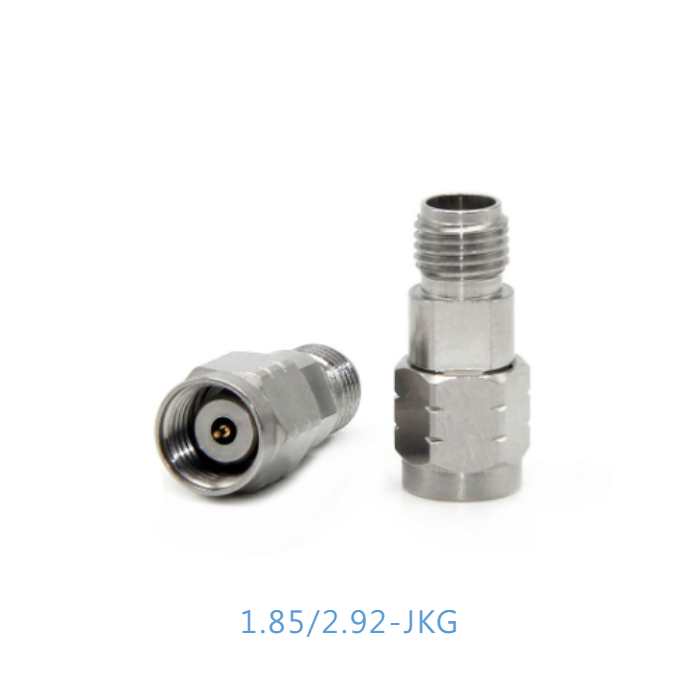

1.85mm Male to 2.92mm Female Adapter

1.85mm Male to 2.92mm Female Adapter

Model No: 1.85/2.92-JKG

Product Datasheet: Download

Model: 1.85/2.92-JKG
Frequency: DC~40GHz
VSWR: ≤1.20:1
Durability: 500 cycles

Quantity:
INQUIRY

  • Description & Specification

Item

Spec.

Frequency

DC～40GHz

VSWR

≤1.20:1

Durability

500 Cycles

Impedance

50Ω

Insulation Resistance

≥5000MΩ

Dielectric Withstand Voltage

1000V

Temperature

-55℃～+165℃
