Description & Specification

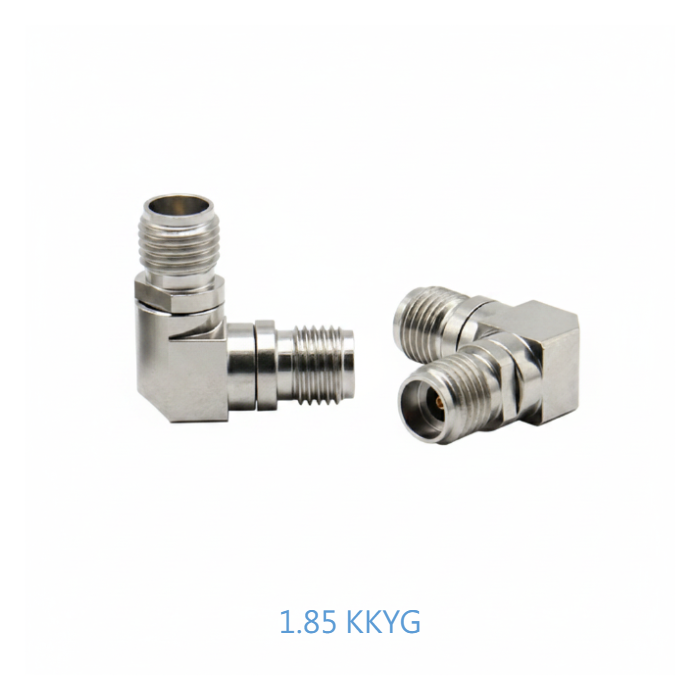

1.85mm Ultra-Precision Adapter
Model: 1.85-KKYG | DC - 67 GHz | Female to Female
The 1.85-KKYG is a high-performance millimeter-wave adapter designed for seamless signal transition and precision coupling up to 67 GHz. Engineered for laboratory excellence, it provides an ultra-stable 50 Ohm interface with minimal signal loss and reflection. This adapter is a critical component for high-frequency RF testing, V-band satellite systems, and advanced defense deployments where Signal Integrity must be maintained across extreme environmental ranges.
Core Electrical Specifications
| Frequency Range | DC to 67 GHz |
| V.S.W.R | ≤ 1.30 : 1 |
| Impedance | 50 Ohm |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Withstand Voltage | 1000 V |
Mechanical & Environmental Parameters
| Connector Interface | 1.85mm Female to 1.85mm Female |
| Durability | 500 Mating Cycles |
| Operating Temperature | -55°C to +165°C |
| Body Material | Stainless Steel / Passivated |
| Manufacturing Origin | Taiwan Design & Made in Taiwan |
Key Tactical & Lab Features
V-Band Excellence
Ensures stable VSWR of ≤ 1.30 across the entire 67 GHz spectrum, providing reliable measurements for high-capacity millimeter-wave and 6G testing.
Extreme Thermal Stability
Specifically engineered to operate between -55°C and +165°C, making it suitable for aerospace, defense, and high-stress environmental chambers.
High Durability Standard
Built to exceed 500 mating cycles without performance degradation, ensuring long-term reliability in laboratory and high-speed production environments.
Superior Signal Integrity
Features a precision-machined air dielectric interface to eliminate signal distortion and ensure phase-stable performance at ultra-high frequencies.
