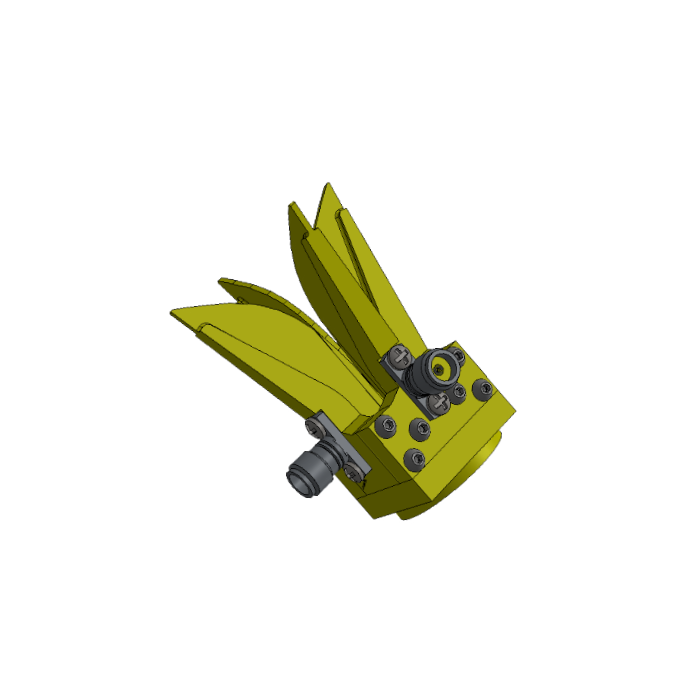

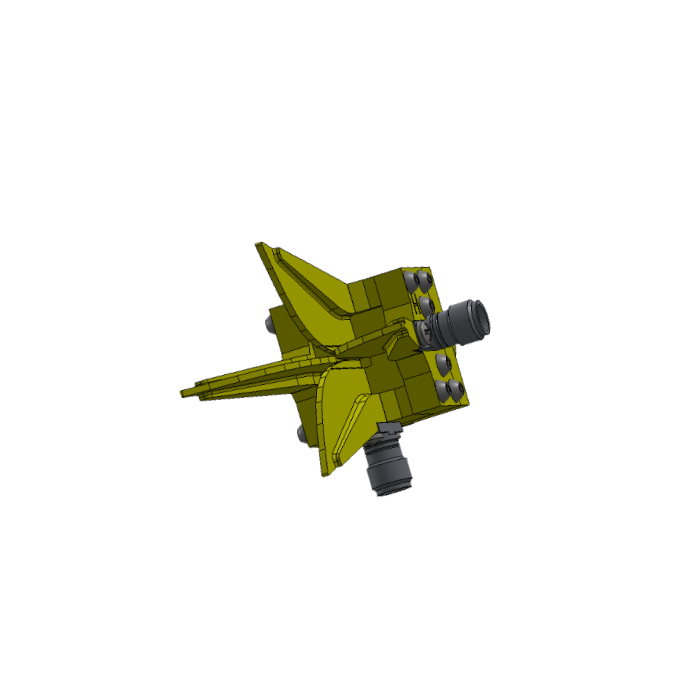

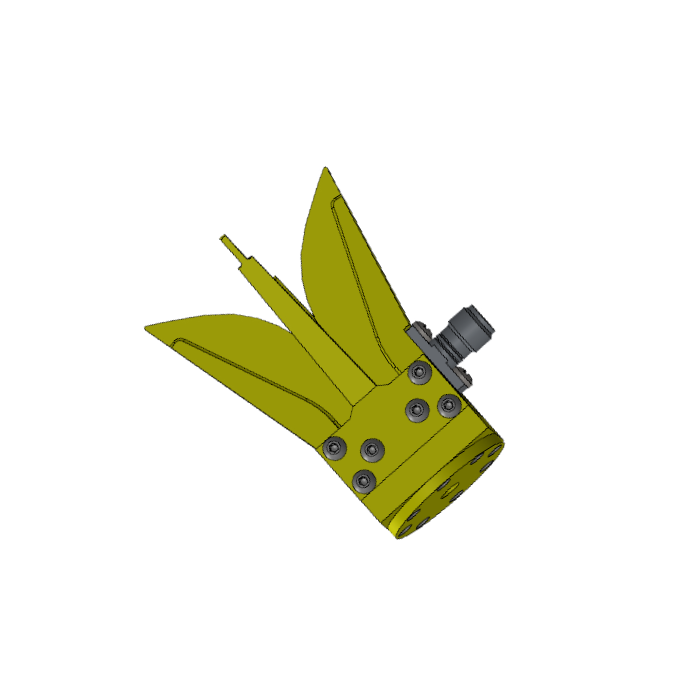

10 to 70GHz Open Quad-Ridge Horn antenna 1.85mm- Female
High-Performance Quad-Ridge | 10-70 GHz Ultra-Wideband | Model: HR-1070GS-VF
The HR-1070GS-VF is a high-precision Open Quad-Ridge Horn Antenna designed for millimeter-wave applications from 10 GHz to 70 GHz. Featuring an open-boundary design and dual-polarized capabilities, it provides exceptional bandwidth and stable radiation characteristics for advanced RF testing, 5G research, and satellite communication measurements.
Technical Specifications
| Frequency Range | 10 GHz to 70 GHz |
| Antenna Type | Open Quad-Ridge Horn |
| Connector Style | 1.85mm-Female |
| Impedance | 50 Ohm |
| Origin | Made in Taiwan |
| Mounting Hole | M3x0.45 (5mm depth) / M4x0.7 (6mm depth) |
| Polarization | Dual Linear / Quad-Ridge |
| Material | Precision Machined Aluminum |
Mechanical & Environmental Specifications

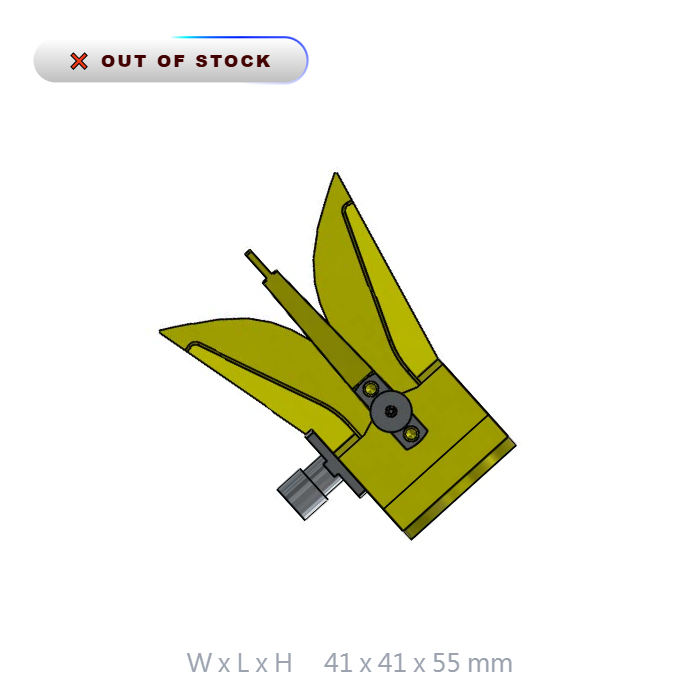

| Dimensions (W x L x H) | 41 x 41 x 55 mm |
| Connector Interface | 1.85mm-Female |
| Mounting Spacing | 20.00 mm |
| Design Standard | Open-Boundary Quad-Ridge |
| Application | 5G/6G Testing, mmWave Measurements, Radar Systems |
Key Reference Features
Millimeter-Wave Ultra-Wideband
Provides continuous coverage from 10 GHz to 70 GHz, supporting high-frequency testing for next-generation wireless standards.
Open Quad-Ridge Architecture
Optimized open-boundary design minimizes internal reflections and ensures stable gain and beamwidth across the entire operating band.
Dual-Polarization Capability
The quad-ridge structure supports dual-linear polarization, making it ideal for complex signal analysis and MIMO antenna characterization.
Precision 1.85mm Interface
Equipped with a high-grade 1.85mm-Female connector to maintain signal integrity and low VSWR at frequencies up to 70 GHz.
For detailed gain charts, VSWR plots, or custom mounting configurations, please contact our technical sup
