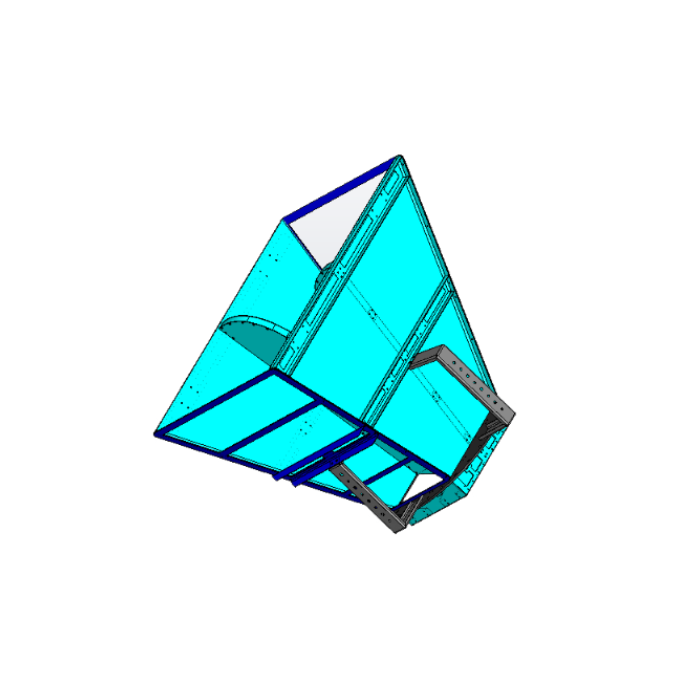

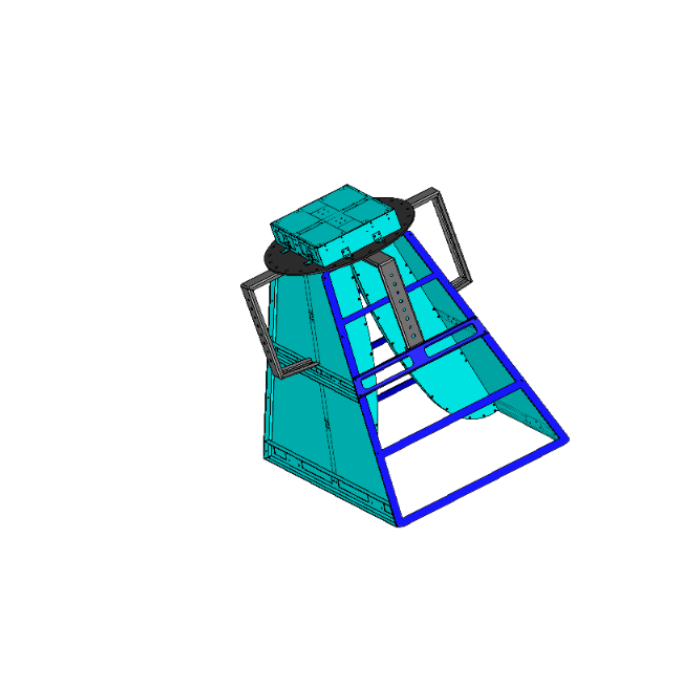

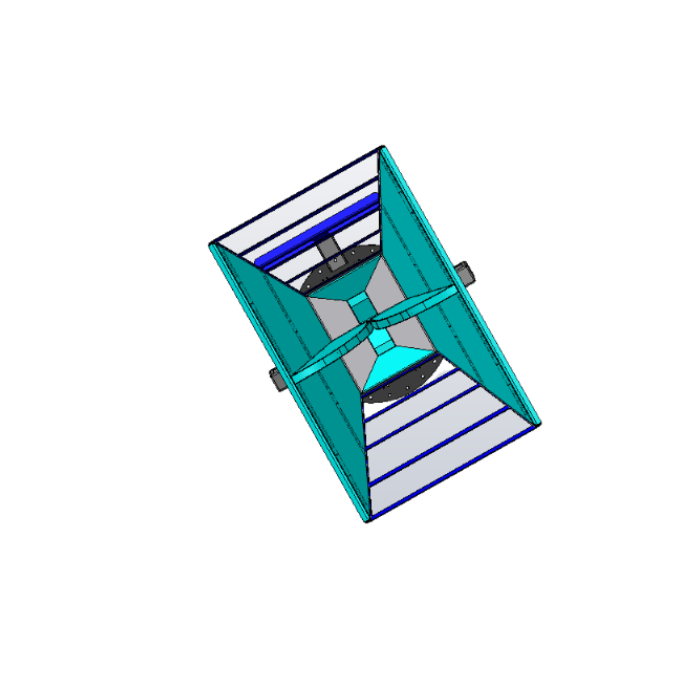

250 MHz to 12 GHz N-Female Double Ridged Broadband Waveguide Horn Antenna
High Power Handling | Professional Grade | Model: HA-025M12G-NF
The HA-025M12G-NF is a high-performance Double Ridged Waveguide Horn Antenna expertly designed for professional RF testing across an extensive 250 MHz to 12 GHz frequency range. This laboratory-grade antenna provides high gain characteristics (2 to 14 dBi) and handles up to 600W (CW), making it an essential tool for EMC/EMI testing, anechoic chamber measurements, and signal monitoring. Engineered in Taiwan, it features a ruggedized construction with a high-precision N-Female connector.
Technical Specifications
| Frequency Range | 250 MHz to 12 GHz |
| Gain | 2 to 14 dBi |
| MAX Power (CW) | 600W |
| Peak Power | 1 KW |
| Connector Style | N-Female (SUS) |

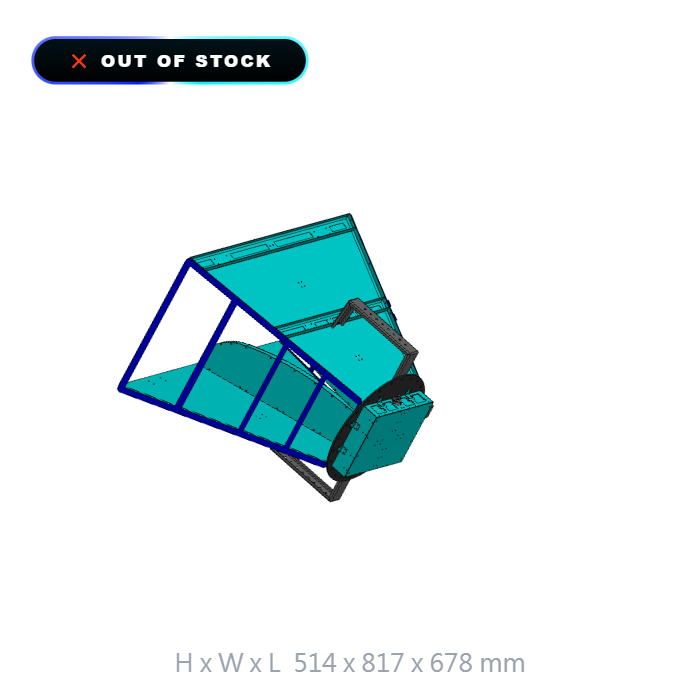

| Dimensions (H x W x L) | 514 x 817 x 678 mm |
| Weight | 9 kg |
| Origin | Made in Taiwan |
Wideband Coverage
Delivers consistent performance across a broad spectrum from 250 MHz to 12 GHz for versatile RF analysis.
High Power Stability
Supports up to 600W continuous wave power, ideal for immunity testing and high-power laboratory setups.
Precision Taiwanese Build
Manufactured with high-grade materials and rigorous quality control for long-term durability and signal integrity.
Optimized geometry ensures pure radiation patterns for critical measurements in advanced RF environments.
