Description & Specification
2 to 18GHz Double Ridged Broadband Waveguide Horn Antenna
High-Gain Directional | Ultra-Wideband | Model: HA-0218G2-SF
The HA-0218G2-SF is a precision-engineered Double Ridged Waveguide Horn Antenna designed for high-performance RF testing across an extensive 2 to 18 GHz frequency range. This laboratory-grade antenna provides stable gain and consistent directional characteristics, making it an essential tool for EMC/EMI testing, anechoic chamber measurements, and signal monitoring.
Technical Specifications
| Frequency Range | 2 GHz to 18 GHz |
| Antenna Type | Double Ridged Broadband Horn |
| Connector Style | SMA-Female |
| Impedance | 50 Ohm |
| Origin | Made in Taiwan |
| Mounting Hole | Φ 6.00 mm (20.00 mm spacing) |
| Weight | 498.85 g |
| Polarization | Linear |
Mechanical & Environmental Specifications

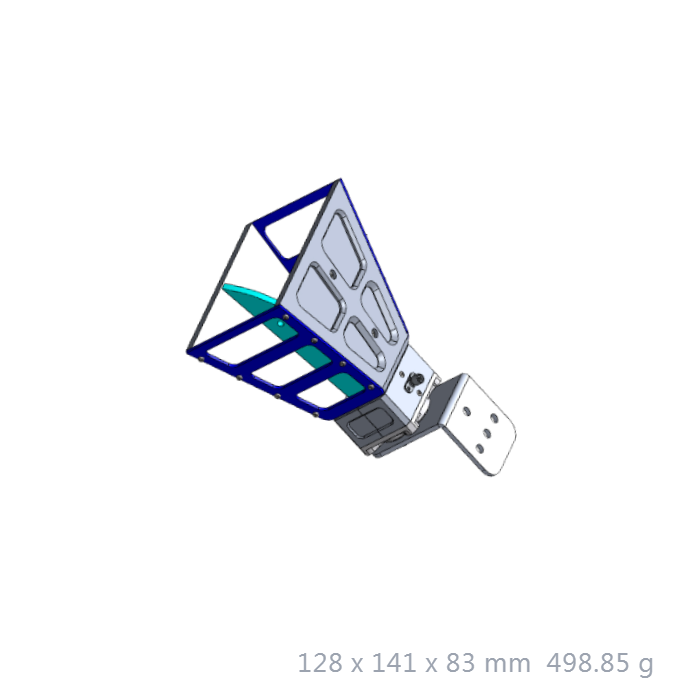

| Dimensions (W x L x H) | 128 x 141 x 83 mm |
| Connector Interface | SMA-Female |
| Material | Ruggedized Metal Construction |
| Mounting | Φ 6.00 mm (20.00 mm spacing) |
| Application | EMC/EMI Testing, Anechoic Chambers |
Key Reference Features
Ultra-Wideband Coverage
Covers a continuous range from 2 GHz to 18 GHz, suitable for diverse wireless communication and radar testing applications.
Precision Double Ridge
Engineered with a double-ridged waveguide structure to maintain stable radiation patterns and gain throughout the entire band.
Rugged Lab-Grade Build
Constructed for durability in both laboratory and field environments, ensuring consistent long-term performance.
Professional RF Interface
Equipped with a high-quality SMA-Female connector to ensure low insertion loss and reliable measurement repeatability.
For custom mounting solutions, specific gain calibration data, or ruggedized enclosures, please contact our engineering team.
