700MHz to 18GHz Double Ridged Broadband Waveguide Horn Antenna N-Female
FT-RF Horn Antenna
10 out of
10
-
Description & Specification

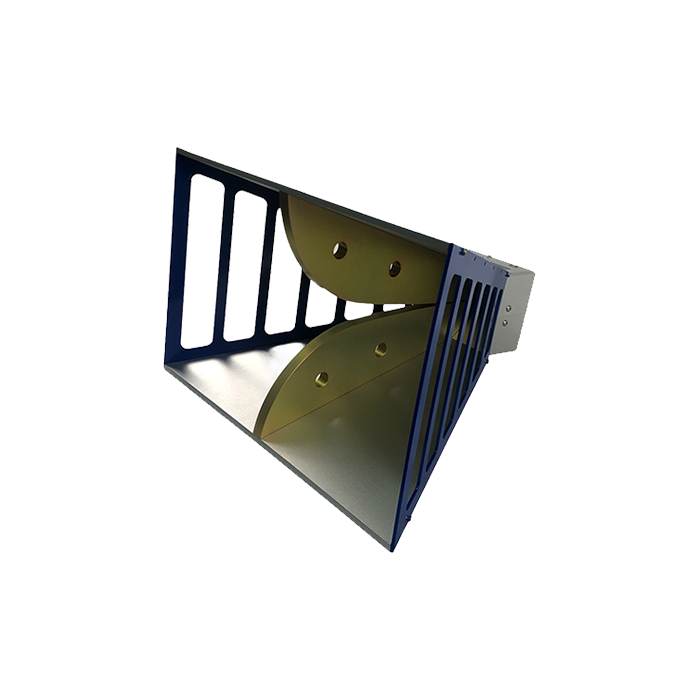

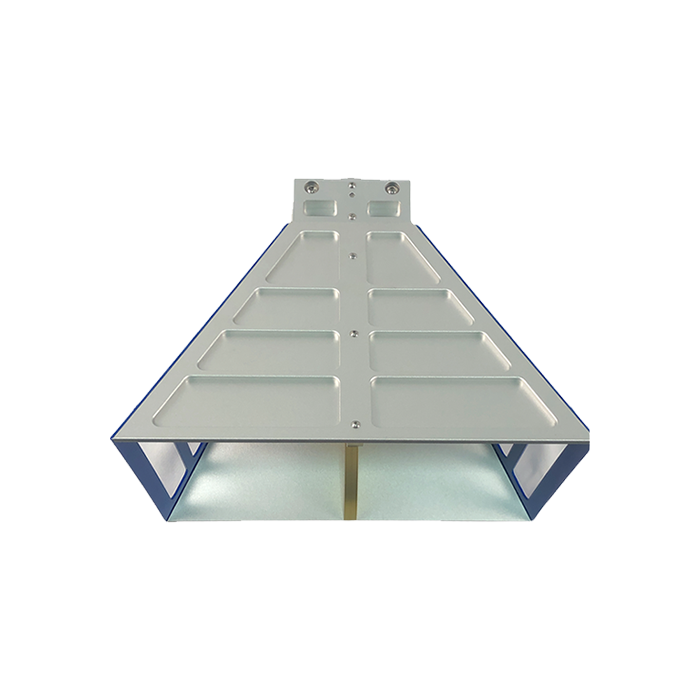

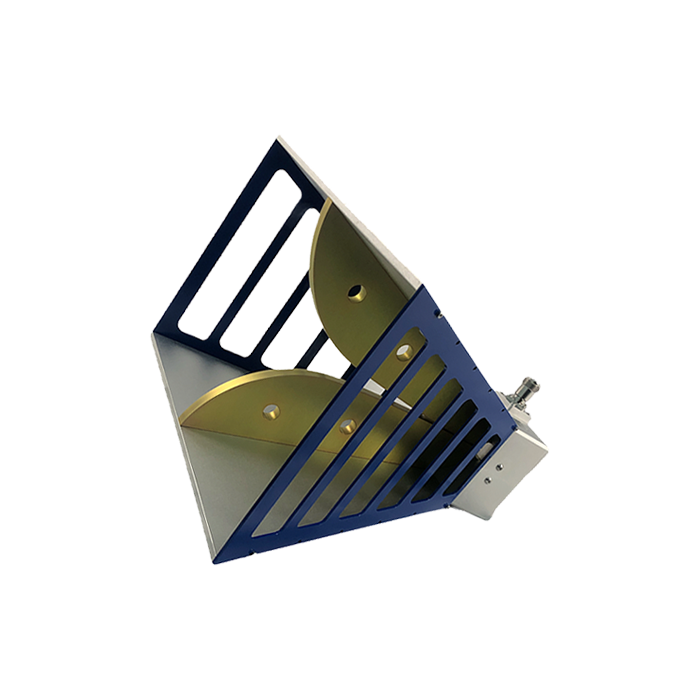

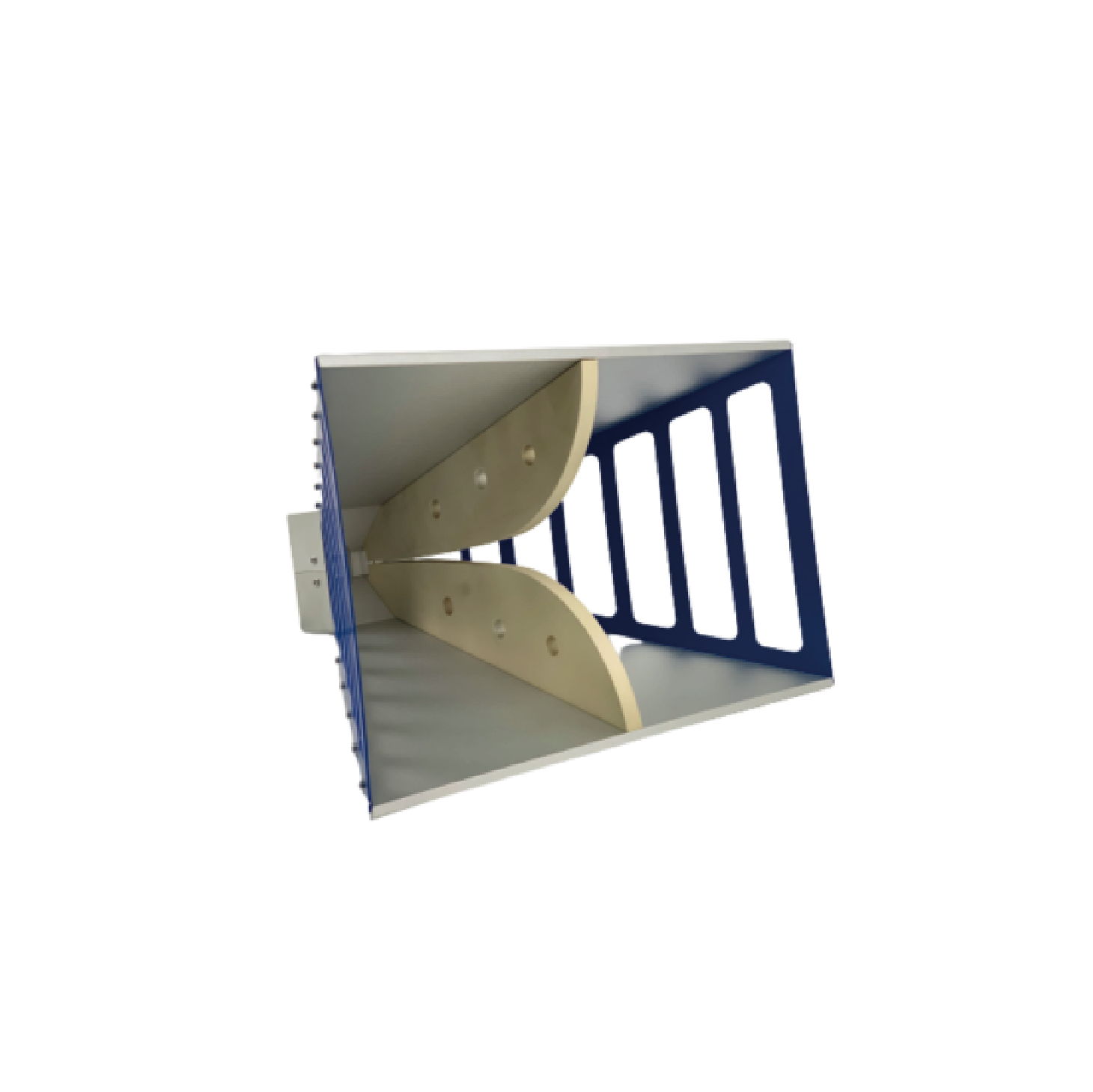

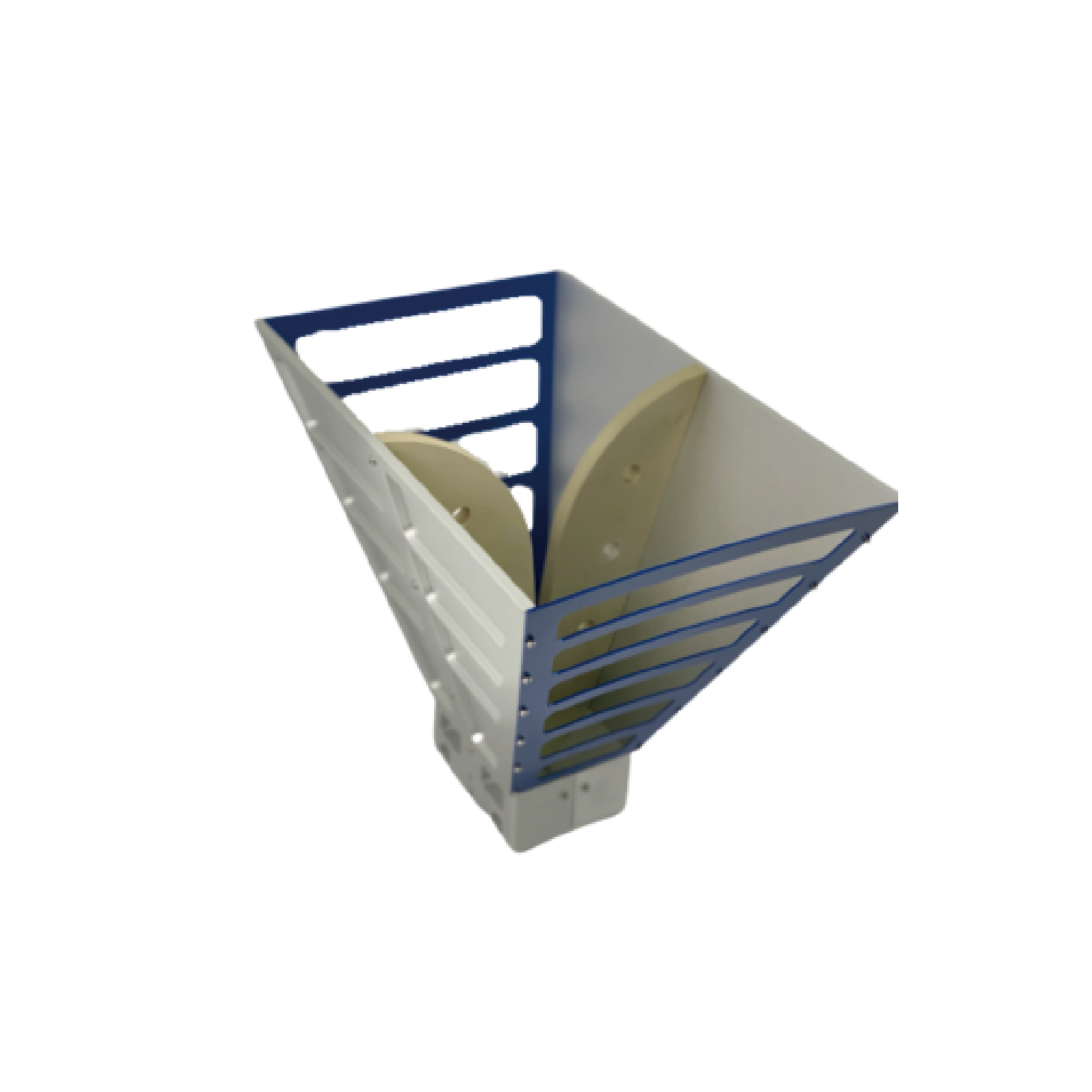

HA-07M18G-NF Broadband Antenna
700MHz to 18GHz Double-Ridge Waveguide Horn Antenna
Engineered for the rigorous demands of modern RF testing, the HA-07M18G-NF is a premier double-ridged horn antenna delivering seamless coverage from 700 MHz to 18 GHz. Constructed from 6061 aerospace-grade aluminum and terminated with a robust stainless steel N-Female connector, this antenna combines lightweight durability with precision electrical performance.
Its exceptional power handling, low VSWR, and consistent gain make it the definitive solution for critical EMC/EMI testing, spectrum monitoring, and antenna measurement applications.
Technical Specifications
Electrical Specifications
| Frequency Range | 700MHz – 18000MHz |
| VSWR (MAX) | 2:1 |
| Antenna Type | Double-Ridge Horn |
| Radiation | Directional |
| Gain (avg) | 4-18 dBi |
| Polarization | Vertical or Horizontal |
| Maximum Power | 500 Watts (Peak) |
| Vertical Beamwidth (AVG) | 47° |
| Horizontal Beamwidth (AVG) | 38° |
| Impedance | 50 Ohm |
| Connector | N-Female (Stainless Steel) |
Mechanical Specifications

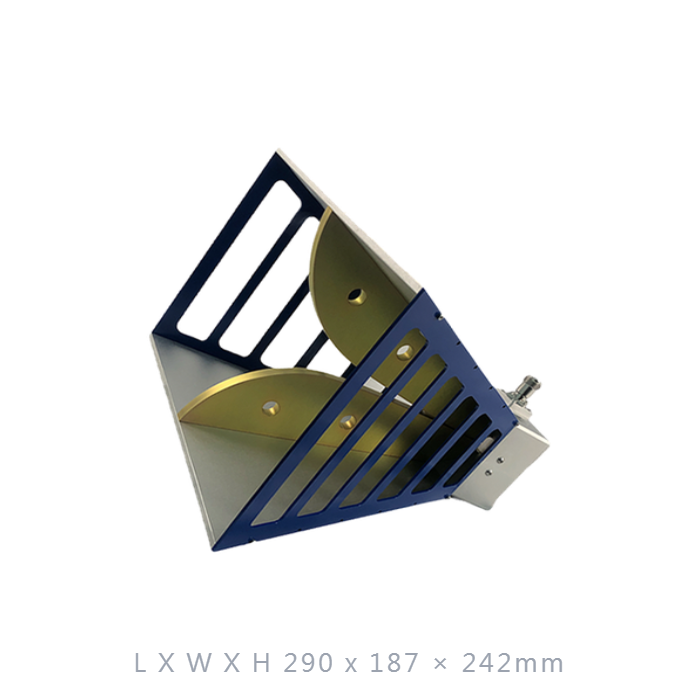

| Length | 290mm |
| Width × Height | 187 × 242mm |
| Parts Material | 6061 Aluminum Alloy |
| Application | Indoor |
| Operating Temperature | -10 to +60°C |
| Storage Temperature | -20 to +80°C |
| Operating Humidity | 10%~70% non-condensing |
| Storage Humidity | 5%~50% non-condensing |
| Mounting | L Type Aluminum Bracket Included |
| Compliance | RoHS, WEEE, CE, FCC |
Key Features
High Power & Protection
500W (Peak) with DC Short lightning protection
500W (Peak) with DC Short lightning protection
Stable Performance
Low VSWR, Uniform Gain, Consolidated performance database
Low VSWR, Uniform Gain, Consolidated performance database
Durable Construction
6061 Aluminum alloy, Taiwan Design & Made in Taiwan
6061 Aluminum alloy, Taiwan Design & Made in Taiwan
Customization Options
Optional LM-301 non-metallic tripod, various surface finishes
Optional LM-301 non-metallic tripod, various surface finishes
