Description & Specification

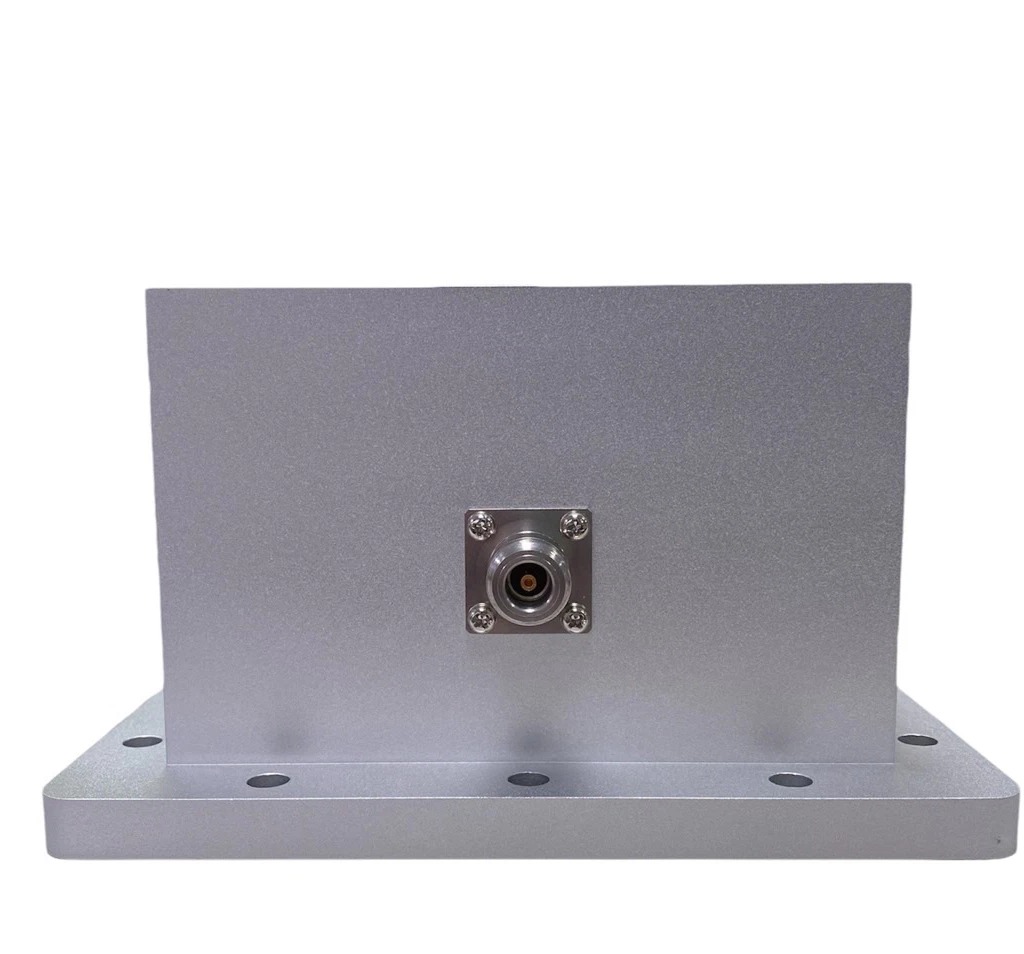

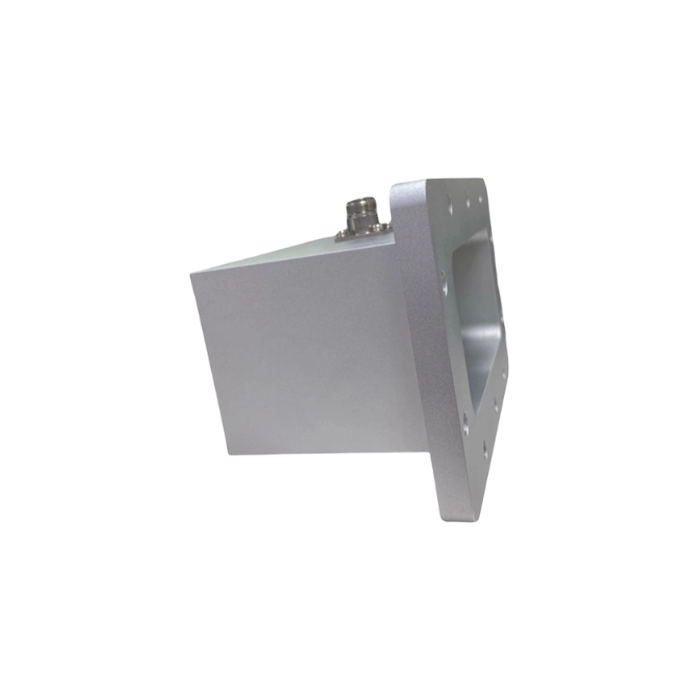

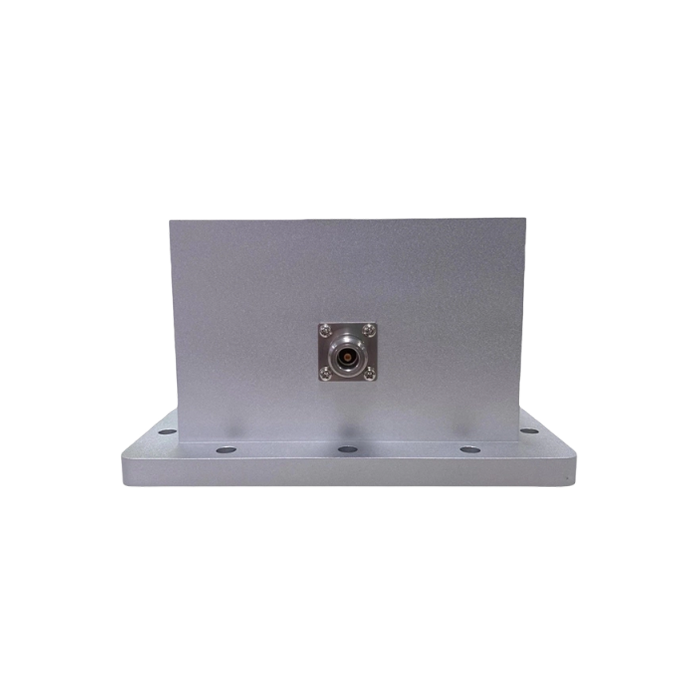

WR-510 Waveguide to Coaxial Adapter
Precision L-Band Transition | Standard UDR Flange Layout | 1.45 GHz – 2.2 GHz
The WC-510-NF-A1 is a high-precision microwave Waveguide to Coaxial Adapter professionally engineered for strict adherence to the rectangular WR-510 architectural standard. Operating continuously across the 1.45 GHz to 2.2 GHz L-Band spectrum, this premium transition component ensures stable electromechanical coupling and maximum energy transfer with a low maximum V.S.W.R profile of 1.3 : 1. Manufactured from high-grade aluminum alloy in Taiwan, this robust 1.5 kg adapter features a standardized rectangular UDR Style flange interface mated to a precision coaxial N-Female connector port, safely managing continuous wave power loads up to 300 Watts (CW). This smart layout achieves an optimal balance between low weight and rugged endurance, making it the definitive choice for satellite communications, radar system calibration, antenna measurement arrays, wireless testing chambers, and high-fidelity laboratory verification setups.
Electrical & RF Performance
| Frequency Range | 1.45 to 2.2 GHz (L-Band Continuous) |
| V.S.W.R (Max Profile) | ≤ 1.3 : 1 |
| Maximum Power Handling | 300 Watts (CW Continuous Wave) |
| Nominal Impedance | 50 Ohms |
Mechanical & Construction Data
| Waveguide Size Standard | EIA WR-510 (R18 / WG8 Layout) |
| Waveguide Flange Designation | UDR Style Flange Standard Layout (CPR-510 Flange Compatible) |
| Coaxial Connector Interface | N-Female Interface Premium Port |

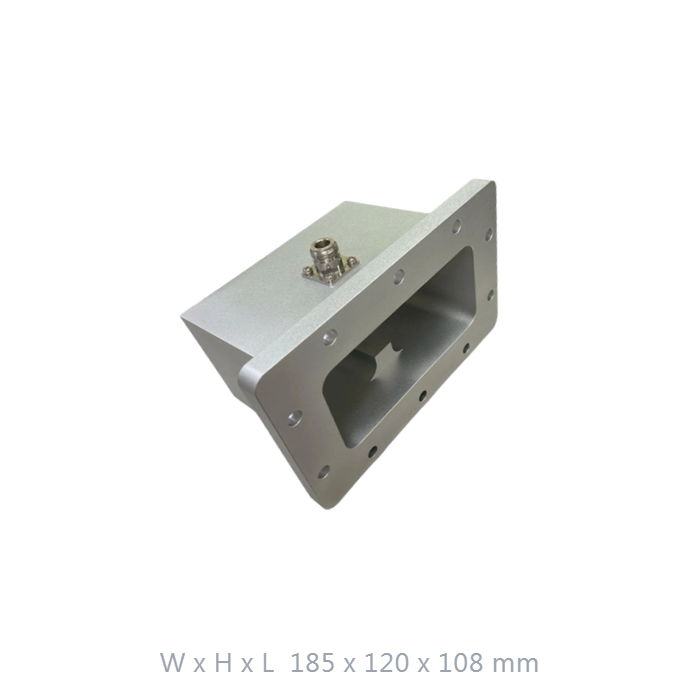

| Physical Dimensions (W x H x L) | 185 x 120 x 108 mm |
| Net Weight | 1500 g (1.5 kg Mid-Weight Infrastructure Build) |
| Body Material Profile | High-Grade Machined 6061 Aluminum Alloy |
| Connector Interface Material | Premium Wear-Resistant Stainless Steel |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
Low VSWR 1.3
Precision-engineered internal transitions optimize signal path geometry, minimizing impedance mismatches and return loss to deliver high signal fidelity up to a maximum VSWR of 1.3.
Stainless Steel Connector
Equipped with a ruggedized, stainless steel N-Female interface port that resists thread wear and ensures consistent electrical bonding through high mating cycles.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under strict industrial quality control standards, ensuring outstanding mechanical flat tolerances and enduring calibration constancy.
Compact 1.5kg Design
Significantly lighter than larger WR770 or WR975 configurations, enabling streamlined integration into localized L-Band layouts without overloading positioners.
300W CW Power Capacity
Provides an uncompromised continuous wave power handling rating of 300 Watts, serving as a reliable driver interface for mid-power transmitter and transceiver stages.
Get a Quote / Custom RF Solutions
Contact our technical engineering team today to request certified individual V.S.W.R plots, alternative custom flange drilling patterns, specialized waterproof architectures, or custom color coatings.
