WR-510 Waveguide to Coaxial Adapter
Precision L/S-Band Transition | Standard PDR Flange Layout | 1.45 GHz – 2.2 GHz
The WC-510-PDR-NF is a high-precision microwave Waveguide to Coaxial Adapter professionally engineered for strict adherence to the rectangular WR-510 architectural standard. Operating continuously across the 1.45 GHz to 2.2 GHz L/S-Band spectrum, this premium transition component ensures stable electromechanical coupling and maximum energy transfer with a low maximum V.S.W.R profile of 1.3 : 1. Manufactured from high-grade aluminum alloy in Taiwan, this robust 1.65 kg adapter features a standardized rectangular PDR Style flange interface mated to a precision coaxial N-Female connector port, safely managing continuous wave power loads up to 300 Watts (CW). This layout makes it the definitive choice for satellite communications, radar system calibration, antenna measurement arrays, wireless testing chambers, and high-fidelity laboratory verification setups.
Electrical & RF Performance
| Frequency Range | 1.45 to 2.2 GHz (L/S-Band Continuous) |
| V.S.W.R (Max Profile) | ≤ 1.3 : 1 |
| Maximum Power Handling | 300 Watts (CW Continuous Wave) |
| Nominal Impedance | 50 Ohms |
Mechanical & Construction Data
| Waveguide Size Standard | EIA WR-510 (R18 / WG8 Layout) |
| Waveguide Flange Designation | PDR Style Flange Standard Layout |
| Coaxial Connector Interface | N-Female Interface Premium Port |

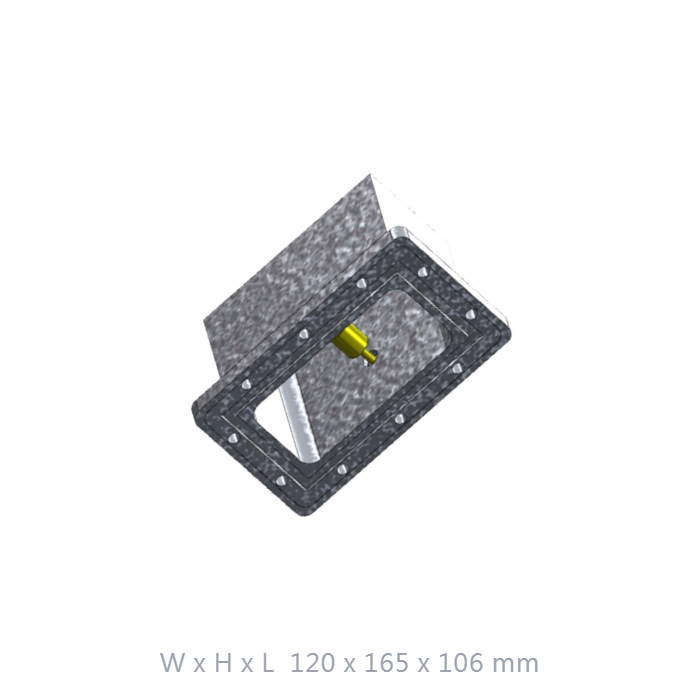

| Physical Dimensions (W x H x L) | 120 x 165 x 106 mm |
| Net Weight | 1650 g (1.65 kg Heavy-Duty structural Architecture) |
| Body Material Profile | High-Grade Precision Machined Aluminum |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
L/S-Band Precision Transition
Optimized internal transition geometry effectively eliminates mode reflections, ensuring minimal signal leakage and clean mapping flatness across the full 1.45–2.2 GHz operating spectrum.
Heavy-Duty Aluminum Build
Precision-machined from 1.65kg of high-grade aluminum to ensure exceptional structural stiffness and highly effective thermal dissipation during constant high-power signal transitions.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under strict industrial quality control standards, ensuring outstanding mechanical flat tolerances and enduring calibration constancy.
Professional N-Female Interface
Equipped with a high-durability, precision-aligned coaxial N-Female connector port, ensuring reliable electrical contact stability and long-term wear resistance for repeatable laboratory duty cycles.
Standardized PDR Flange
Features a specialized PDR waveguide flange for secure mechanical coupling, ensuring stable power transitions and repeatable, uncompromised test results in severe RF testing configurations.
Get a Quote / Custom RF Solutions
Contact our technical engineering team today to request certified individual V.S.W.R plots, alternative custom flange drilling patterns, specialized waterproof architectures, or custom color coatings.
