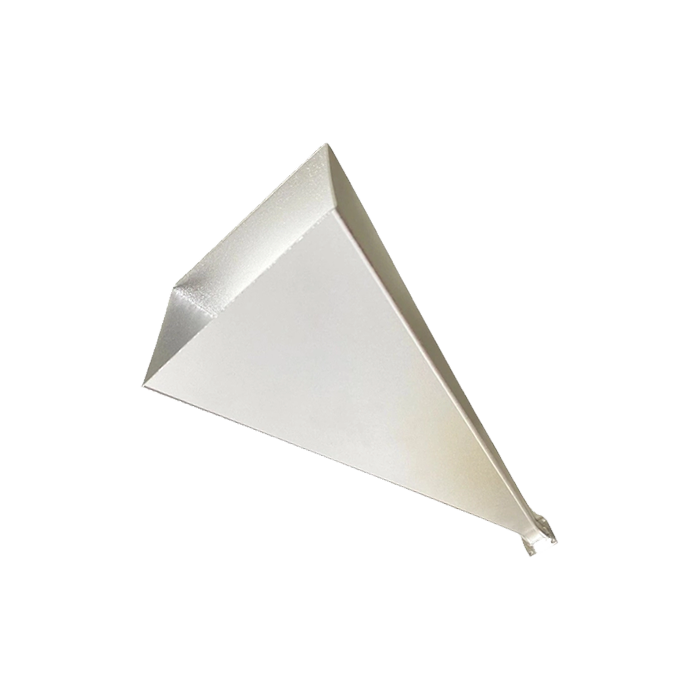

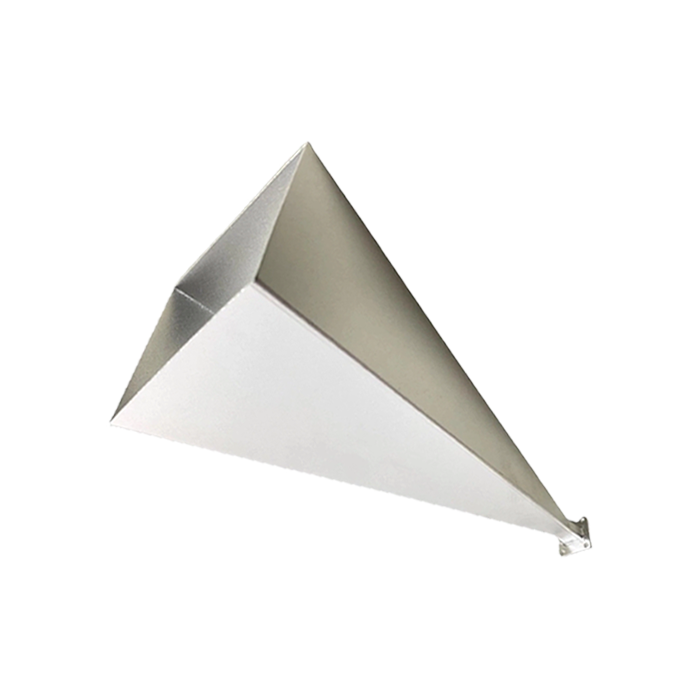

| Frequency Range Class | 18.0 GHz to 26.5 GHz (Continuous K-Band Optimization) |
| Waveguide Size Type | EIA WR42 Geometry Layout Profile |
| Nominal Gain (Typical) | 25 dBi |
| V.S.W.R Profile (Max) | ≤ 1.3 : 1 (Precision Minimal Reflection Performance) |
| Maximum Power Handling | 500 Watts (CW Continuous Wave Thermal Threshold) |
| -3dB Beamwidth (H-Plane) | 20° (Focused Horizon Profiling) |
| -3dB Beamwidth (E-Plane) | 19° (Narrow Focused Vertical Path) |

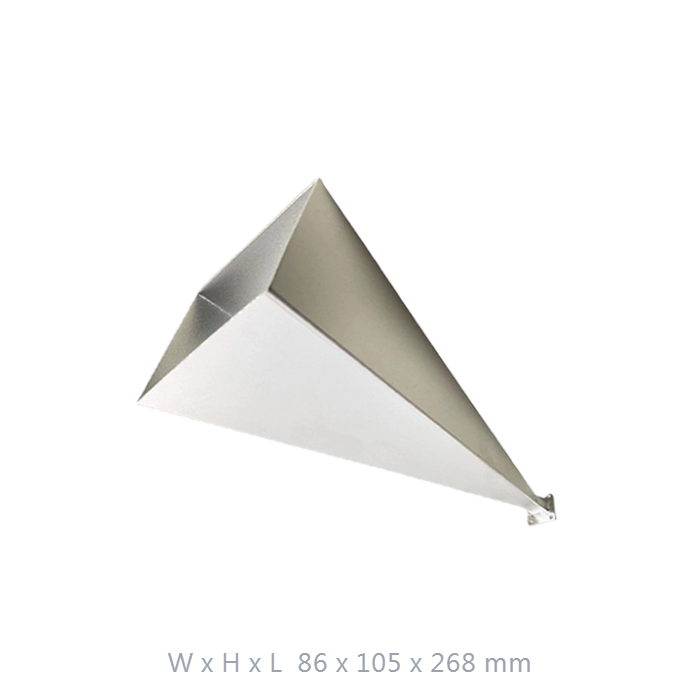

| Physical Dimensions (W x H x L) | 86 x 105 x 268 mm |
| Net Weight Profile | 220 g (Precision Rigid Mechanical Footprint) |
| Waveguide Connection Flange | Standardized UG-419/U (UBR Style Flange Interface Layout) |
| Structural Body Material | High-Grade Aerospace-Grade Aluminum Alloy Core |
| Environmental Protection | Rugged Waterproof Structure Layout Coating |
| Mounting Options | Tripod or Antenna Mounting System Compatible |
| Operating Temperature Bounds | -10°C to +60°C |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Industrial Grade) |
Optimized 25 dBi gain layout for high-accuracy EMI/EMC compliance testing and precise far-field anechoic antenna measurements.
Engineered with an advanced waterproof enclosure sealing to safeguard electrical transmission stability in intensive outdoor range environments.
Features structural compatibility with programmatic PTZ controlling functions for streamlined automated antenna pattern orientation arrays.
Meticulously calculated to meet stringent global standards for exact waveguide standard profiles and flat high-frequency RF trace validation curves.
Lightweight yet remarkably durable aluminum body architecture for superior heat dissipation, structural longevity, and minimal mast loading.
Contact our technical engineering division today to request official quote sheets, individual certified calibration charts, bespoke mechanical mounting designs, custom colors, or technical drawings.
