WR42 18 GHz to 26.5 GHz 10dBi Waveguide Horn Antenna without Adapter, UBR UG-419/U Flange

Model No: WI-42-UBR-10

Made in Taiwan
Frequency Range: 18.0 to 26.5 GHz
Standard Gain: 10 dBi
Waveguide Type: WR-42 (K-Band)
Max Power (W): 500 Watts
Stock: 35
2026/06/09
📐 VIEW DRAWING
Quantity:
INQUIRY

18.0 GHz to 26.5 GHz WR-42 K-Band Standard Gain Horn Antenna

10 dBi Precision Calibration | Direct Waveguide Input | Model: WI-42-UBR-10
The WI-42-UBR-10 is a high-precision, calibration-grade K-Band Standard Gain Horn Antenna professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for the WR-42 standard waveguide setups. Operating within the high-frequency spectrum across the continuous 18.0 GHz to 26.5 GHz frequency range, this premium antenna delivers a highly stable and precision-calibrated nominal gain profile of 10 dBi combined with an exceptionally low maximum V.S.W.R threshold of 1.3 : 1. Featuring a Direct Waveguide Input equipped with a standardized UG-419/U (UBR Style) flange interface layout, it ensures optimal structural impedance coplanarity and ultra-low-loss power transfer, safely managing continuous wave power loads up to 500 Watts (CW). Precision CNC machined from high-grade structural aluminum alloy in Taiwan, the calculated internal horn geometry produces highly clean and symmetric 54° radiation envelopes across both horizontal and vertical planes. It stands as the definitive choice for laboratory antenna characterization, specialized communication setups, industrial EMI/EMC compliance validation scanning, satellite research grids, and mission-critical high-power testing arrays demanding uncompromised performance parameters.



Electrical & RF Performance
Frequency Range Class 18.0 GHz to 26.5 GHz (Continuous K-Band Spectral Optimization)
Waveguide Standard Size EIA WR-42 / R220 / WG20 Layout Geometry
Nominal Gain (Typical) 10 dBi
V.S.W.R Profile (Max) ≤ 1.3 : 1 (Precision Minimal Reflection Performance)
Maximum Power Handling 500 Watts (CW Continuous Wave Thermal Limit)
-3dB Beamwidth (H-Plane) 54° (Symmetric Pattern Optimization)
-3dB Beamwidth (E-Plane) 54° (Symmetric Pattern Optimization)
Nominal System Impedance 50 Ohms
Mechanical & Environmental Data

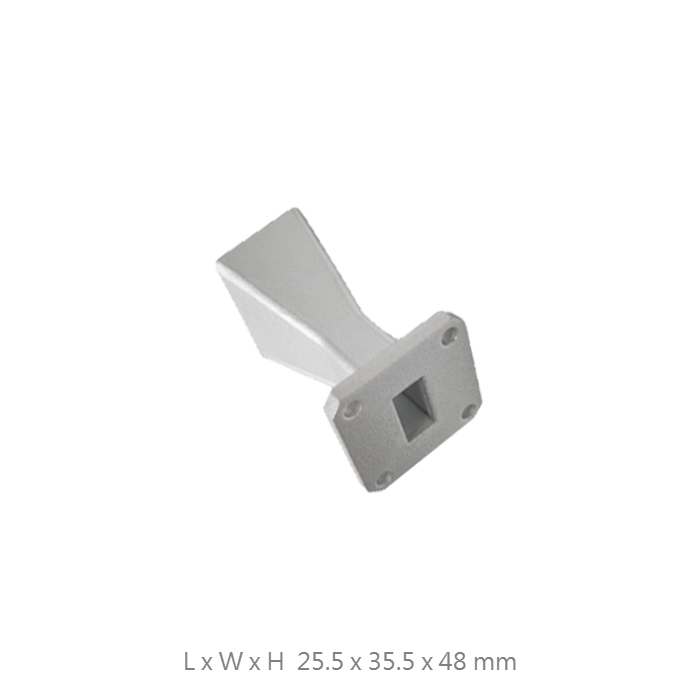

Physical Dimensions (W x H x L) 25.5 x 35.5 x 48 mm
Net Weight Profile 15 g (Ultra-Lightweight Mechanical Footprint)
Waveguide Connection Flange Standardized UG-419/U (UBR Style Flange Interface Layout)
Structural Body Material High-Grade Precision Machined Aluminum
Manufacturing Origin Taiwan Design & Made in Taiwan (FT-RF Professional Grade)



Symmetric Beam Precision

Equipped with matched 54° E/H plane beamwidths, providing the ultra-stable radiation pattern necessary for repeatable laboratory measurements and professional antenna characterization.

Direct Waveguide Integration

Designed with a direct WR-42 interface for ultra-low-loss power transfer, eliminating transition losses associated with coaxial adapters in high-precision setups.

500W High-Power Stability

Robustly machined from premium aluminum to handle high 500W CW power loads while maintaining structural integrity during high-intensity Signal Defense testing missions.

Millimeter-Wave Optimized

Fine-tuned for the 18-26.5 GHz spectrum, meeting rigorous international standards for professional RF measurement and next-generation satellite communication infrastructures.

Contact FT-RF Engineering Team

Contact our technical engineering division today to request official quote sheets, individual certified radiation patterns, specialized tripod mounting interfaces, or customized millimetric RF solutions.
