WR42 18 GHz to 26.5 GHz 10dBi H-Plane Sectoral Waveguide Horn Antenna, UBR UG-419/U Flange without Adapter

Model No: WI-42-UBR-10H

Made in Taiwan
Frequency Range: 18.0 - 26.5 GHz
Waveguide size / Flange: EIA WR-42 / Standard UG-419/U
Antenna Gain / Style: 10 dBi / H-Plane Sectoral
Max CW Power / Beam: 500 Watts / 12°×110° Fan-Beam
Lead Time: 📩 info-tw@ft168.com.tw
Stock: 0
2026/06/18
Quantity:
INQUIRY

18.0 GHz to 26.5 GHz WR-42 K-Band H-Plane Sectoral Horn Antenna

Fan-Beam Radiation Pattern | Direct Waveguide Input | Model: WI-42-UBR-10H
The WI-42-UBR-10H is a high-precision WR-42 H-Plane Sectoral Horn Antenna professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for specialized wide-vertical illumination environments. Operating within the high-frequency K-Band spectrum across the continuous 18.0 GHz to 26.5 GHz band, this premium antenna is expertly flared in the H-plane to deliver a distinct, highly predictable Fan-Beam radiation pattern profile (12° H-plane x 110° E-plane) combined with a calibrated nominal gain of 10 dBi. Featuring a Direct Waveguide Input interface with a standardized UG-419/U (UBR Style) flange mating face, it ensures flawless structural impedance coplanarity and ultra-low-loss power transfer, safely managing continuous wave power loads up to 500 Watts (CW). Precision CNC machined from high-grade structural aluminum alloy in Taiwan, it exhibits exceptional electromechanical longevity, an ultra-lightweight 45g profile, and excellent pattern isolation metrics combined with a maximum V.S.W.R threshold of 1.3 : 1. It stands as the definitive choice for broad-area environmental scanning, automated antenna characterization ranges, industrial EMI/EMC compliance validation scanning, next-generation satellite tracking networks, and mission-critical Signal Defense verification setups demanding uncompromised millimeter-wave performance parameters.



Electrical & RF Performance
Frequency Range Class 18.0 GHz to 26.5 GHz (Continuous K-Band Spectral Optimization)
Waveguide Standard Size EIA WR-42 / R220 / WG20 Layout Geometry
Nominal Gain (Typical) 10 dBi
V.S.W.R Profile (Max) ≤ 1.3 : 1 (Precision Minimal Reflection Performance)
Maximum Power Handling 500 Watts (CW Continuous Wave Thermal Limit)
-3dB Beamwidth (H-Plane) 12° (Narrow Focused Horizon Profile)
-3dB Beamwidth (E-Plane) 110° (Expansive Sector Fan-Beam Optimization)
Nominal System Impedance 50 Ohms
Mechanical & Environmental Data

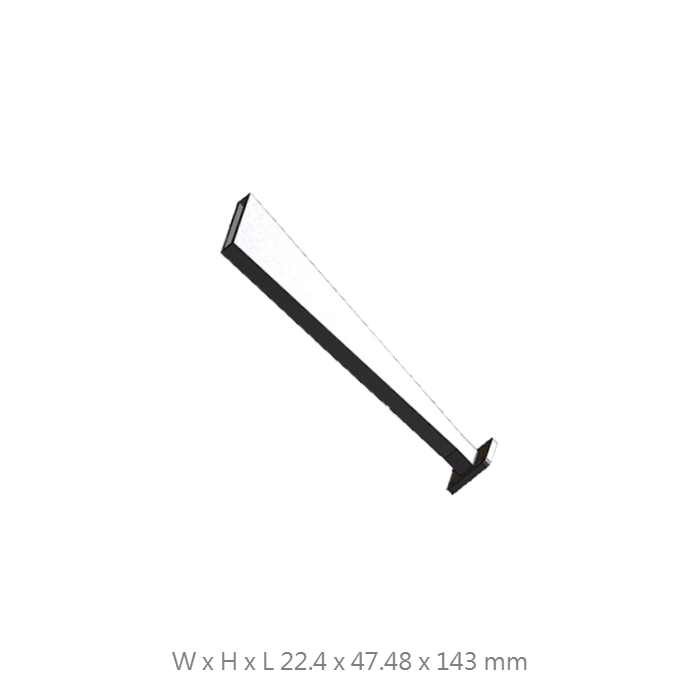

Physical Dimensions (W x H x L) 22.4 x 47.48 x 143 mm
Net Weight Profile 45 g (Ultra-Lightweight Precision Footprint)
Waveguide Connection Flange Standardized UG-419/U (UBR Style Flange Interface Layout)
Structural Body Material High-Grade Precision Machined Aluminum
Manufacturing Origin Taiwan Design & Made in Taiwan (FT-RF Professional Grade)



Expansive E-Plane Coverage

Specialized sectoral flare yields a massive 110° beamwidth in the vertical plane, ideal for broad-area illumination in millimeter-wave susceptibility testing and wide-vertical surveillance setups.

Direct Millimeter-Wave Integration

Designed with a direct WR-42 interface for ultra-low-loss power transfer, eliminating transition losses associated with coaxial adapters in high-precision millimetric setups.

500W Continuous Stability

Robustly machined from premium aluminum to handle high 500W CW power loads while maintaining structural integrity during high-intensity Signal Defense testing missions.

Precision Pattern Stability

Optimized for the 18.0-26.5 GHz band, ensuring gain flatness and pattern stability required for professional satellite link characterization and localized monitoring fields.

Contact FT-RF Engineering Team

Contact our technical engineering division today to request official quote sheets, individual certified radiation patterns, specialized PTZ control integration, or customized waterproof builds.
