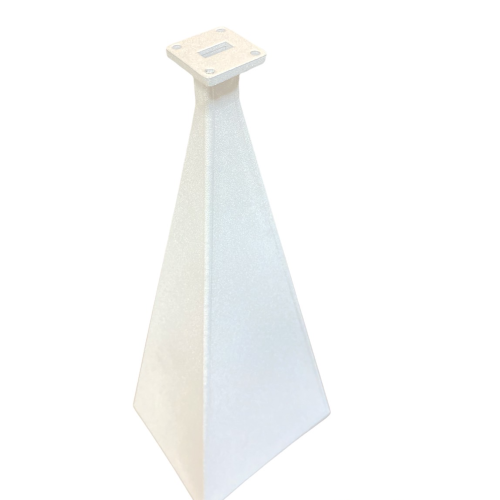

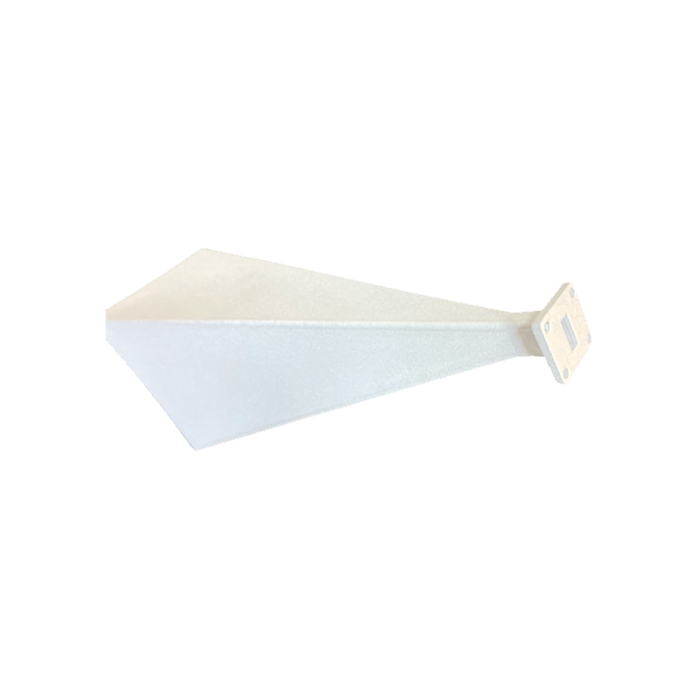

WR42 Waveguide Horn Antenna without adapter, 18 GHz to 26.5 GHz, 15dBi, Flange: UBR UG-419/U

Model No: WI-42-UBR-15

Made in Taiwan
Frequency Range: 18.0 to 26.5 GHz
Standard Gain: 15 dBi
Waveguide Type: WR-42 (K-Band)
Max Power (W): 500 Watts
Stock: 48
2026/06/09
Quantity:
INQUIRY

18.0 GHz to 26.5 GHz WR-42 K-Band Standard Gain Horn Antenna

15 dBi Precision Gain | Direct Waveguide Input | Model: WI-42-UBR-15
The WI-42-UBR-15 (Original Model: WI-42-A1-15) is a high-precision K-Band Standard Gain Horn Antenna professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for the WR-42 waveguide standard. Operating across the continuous high-frequency spectrum of 18.0 GHz to 26.5 GHz, this premium antenna delivers a highly stable and precision-calibrated nominal gain profile of 15 dBi combined with an exceptionally low maximum V.S.W.R threshold of 1.3 : 1. Featuring a Direct Waveguide Input interface with a standardized UG-419/U (UBR Style) flange layout, it ensures optimal structural impedance coplanarity and ultra-low-loss power transfer, safely managing continuous wave power loads up to 500 Watts (CW). Precision CNC machined from high-grade structural aluminum alloy in Taiwan, the calculated internal horn geometry produces highly clean and symmetric 30° radiation envelopes across both horizontal and vertical planes. It stands as the definitive choice for laboratory antenna characterization, specialized 5G evaluation architectures, industrial EMI/EMC compliance validation scanning, satellite research grids, and mission-critical tactical testing arrays demanding uncompromised performance parameters.



Electrical & RF Performance
Frequency Range Class 18.0 GHz to 26.5 GHz (Continuous K-Band Spectral Optimization)
Waveguide Standard Size EIA WR-42 / R220 / WG20 Layout Geometry
Nominal Gain (Typical) 15 dBi
V.S.W.R Profile (Max) ≤ 1.3 : 1 (Precision Minimal Reflection Performance)
Maximum Power Handling 500 Watts (CW Continuous Wave Thermal Limit)
-3dB Beamwidth (H/E Plane) 30° / 30° (Symmetric Design Optimization)
Nominal System Impedance 50 Ohms
Mechanical & Environmental Data

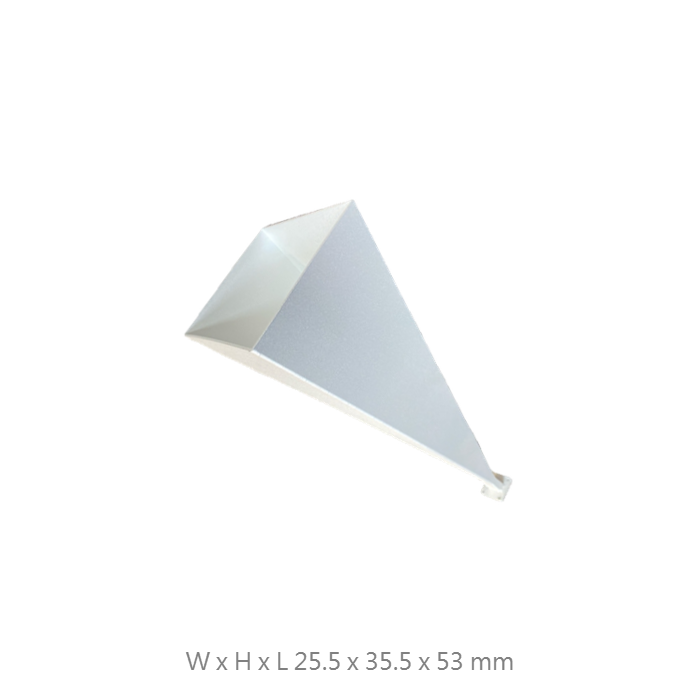

Physical Dimensions (W x H x L) 25.5 x 35.5 x 53 mm
Waveguide Connection Flange Standardized UG-419/U (UBR Style Flange Interface Layout)
Input Interface Launcher Direct Waveguide Input (No Coaxial Adapter Loss)
Structural Body Material High-Grade Precision Machined Aluminum
Manufacturing Origin Taiwan Design & Made in Taiwan (FT-RF Professional Grade)



K-Band Pattern Stability

Optimized for the 18.0-26.5 GHz spectrum, delivering the boresight accuracy and symmetric beamwidth required for repeatable laboratory measurements and professional antenna characterization.

Direct Waveguide Integration

Designed with a direct WR-42 interface for ultra-low-loss power transfer, eliminating transition losses associated with coaxial adapters in high-precision millimetric setups.

500W High-Power Handling

Robustly machined from premium aluminum to handle high 500W CW power loads while maintaining structural integrity during high-intensity Signal Defense testing missions.

Adaptive Deployment

Supports custom mounting designs, including PTZ control functions, waterproof builds, and specialized tripod adapters for mobile Signal Management and monitoring sub-systems.

Contact FT-RF Engineering Team

Contact our technical engineering division today to request official quote sheets, individual certified radiation patterns, specialized waterproof builds, or customized tripod mounting solutions.
