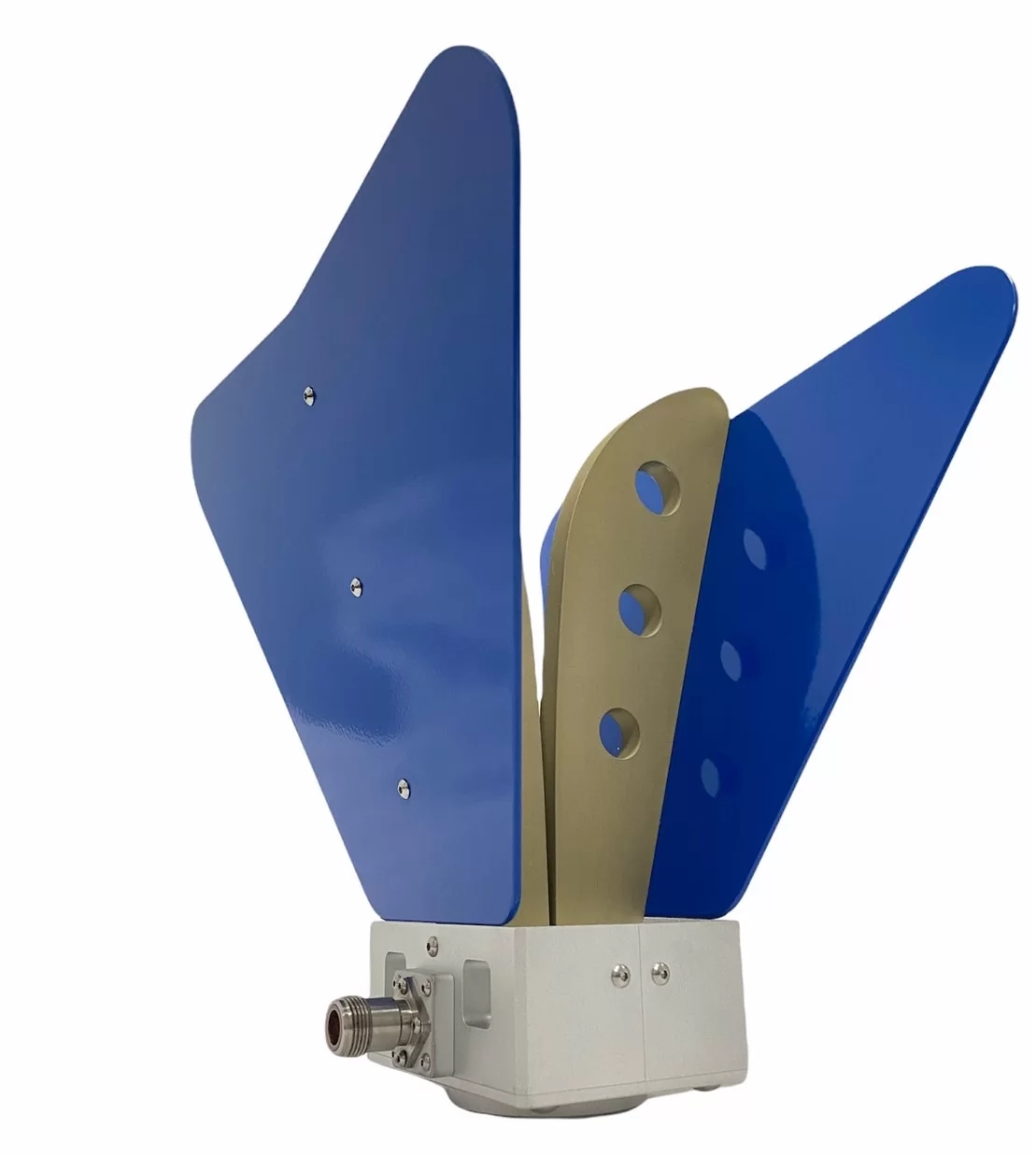

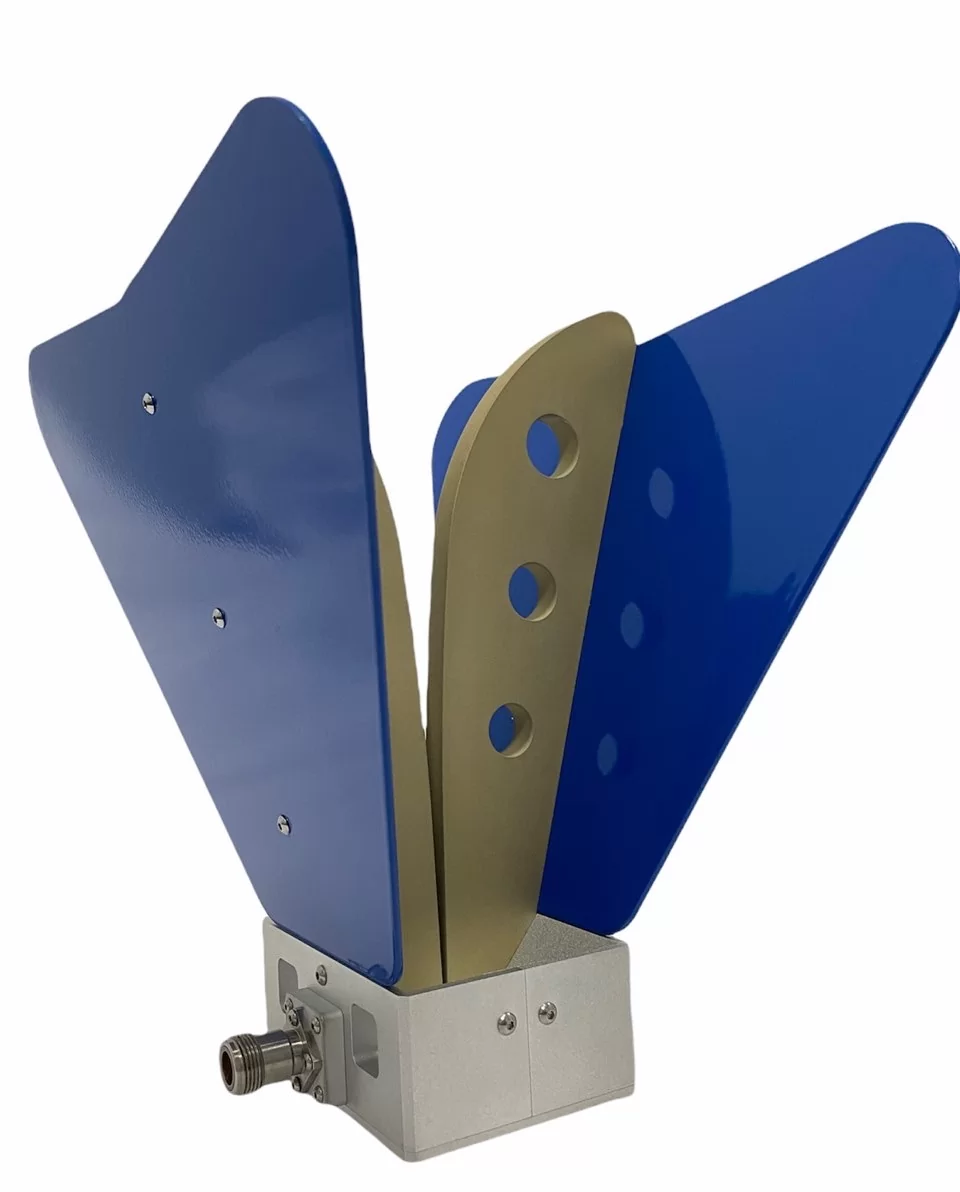

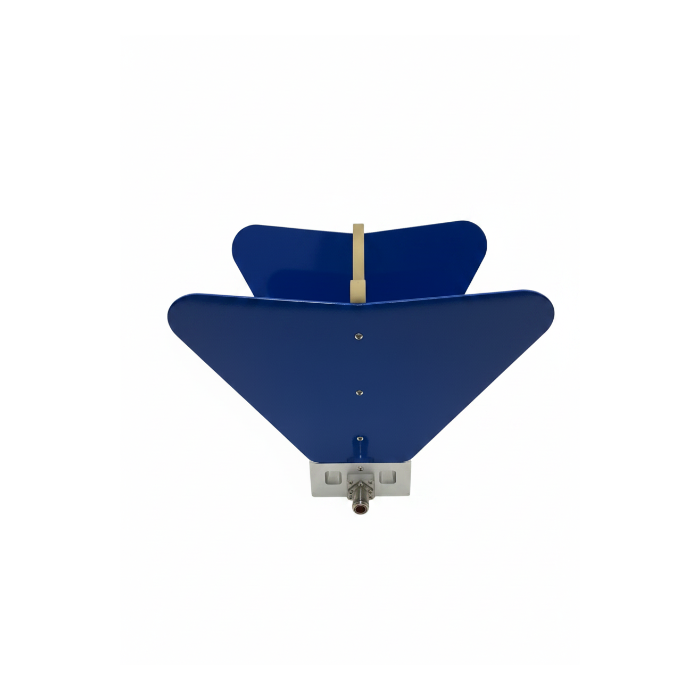

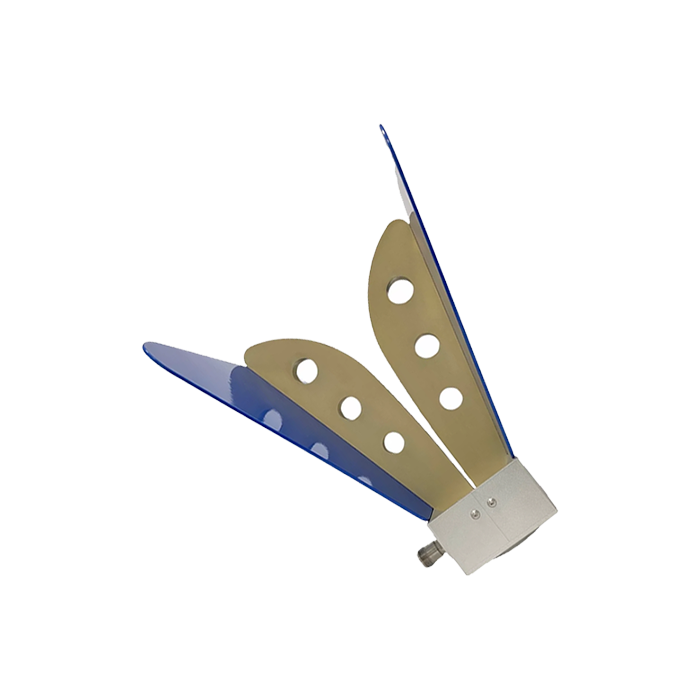

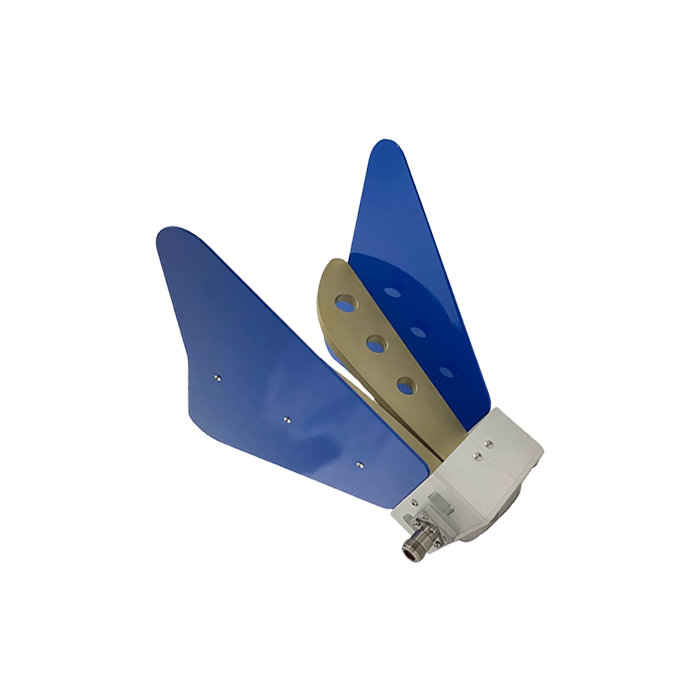

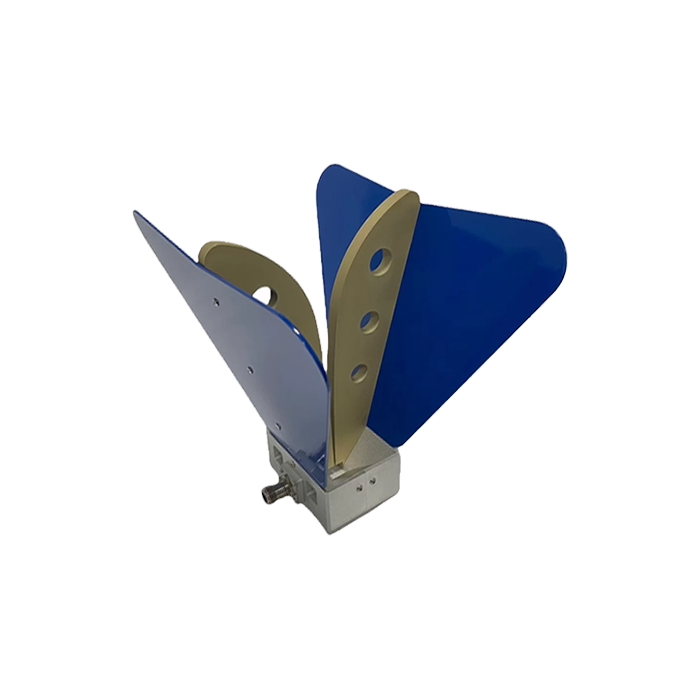

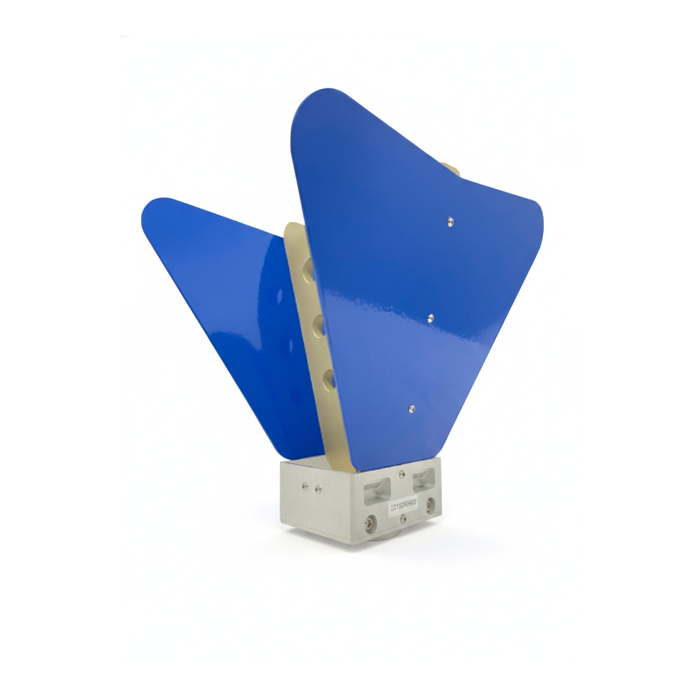

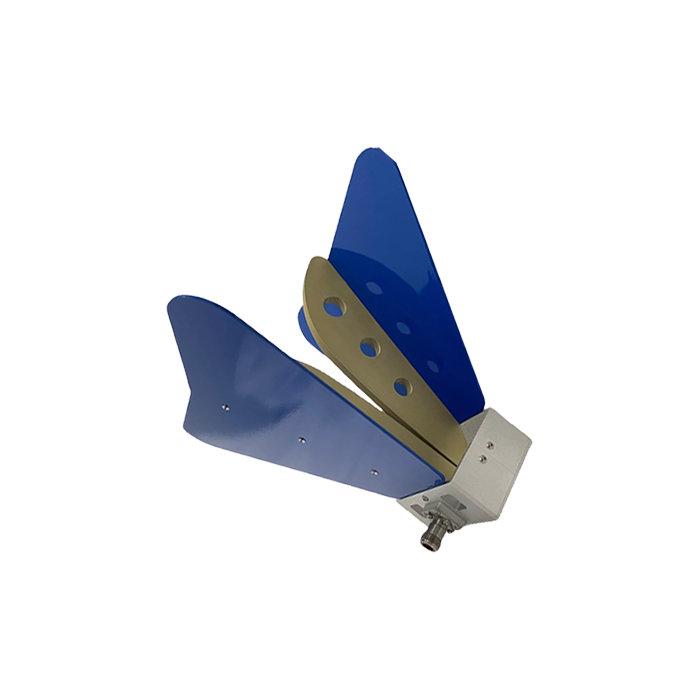

700MHz to 18GHz Open Boundary Double Ridge Broadband Horn Antenna
Broadband Precision | 2 dBi to 18 dBi Gain | Model: HB-07M18G-NF
The HB-07M18G-NF is a high-performance Open Boundary Double Ridge Broadband Horn Antenna professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) in Taiwan. Operating across the continuous 700MHz to 18GHz frequency spectrum, it provides directional gain profiling from 2 dBi to 18 dBi with low average VSWR of 2.0:1 and high power handling of 300W (Cont) / 500W (Peak). Constructed from durable 6061 aluminum alloy with a lightweight net weight of 1.5 kg and fitted with a high-precision Stainless Steel N-Female connector, this antenna supports integrated DC Short lightning protection. It serves as an essential measurement standard for EMC/EMI laboratory compliance, wideband surveillance, and precision RF testing.
Technical Specifications
| Frequency Range | 700MHz - 18GHz |
| Antenna Type | Open Boundary Double Ridge Horn |
| Nominal Gain | 2 dBi to 18 dBi |
| VSWR | 2.0:1 avg |
| Power Handling | 300W (Cont) / 500W (Peak) |
| Antenna Factor | 25 - 44 dB/m |
| Impedance / Lightning Protection | 50 Ω / DC Short Protection |
Mechanical & Physical Data

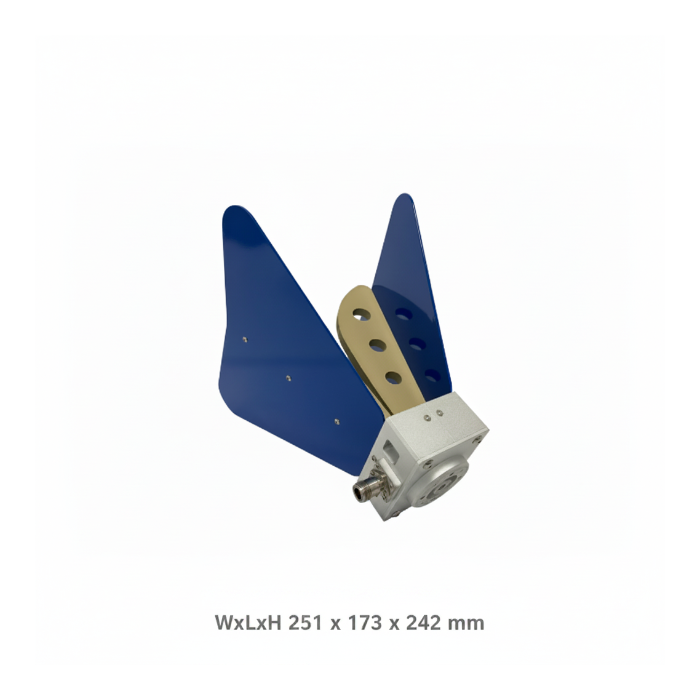

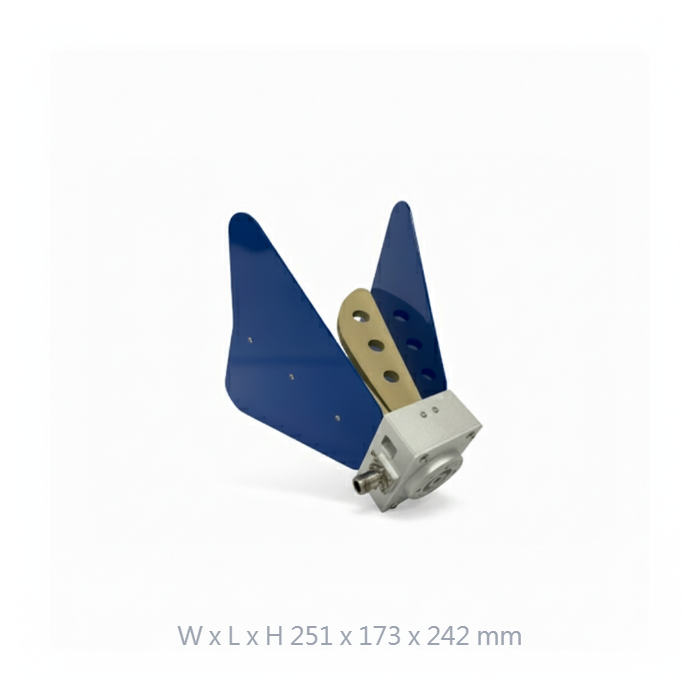

| Dimensions (L x W x H) | 251 x 173 x 242 mm |
| Weight | 1.5 kg |
| Connector | Stainless Steel N-Female |
| Mounting Interface | L-type Aluminum Bracket (M8 / M5) |
| Country of Origin | Taiwan |
Gain Calibration Plot
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
VSWR Performance Curve
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
3dB Beamwidth Radiation Pattern
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
Key Design & Feature Highlights
Open Boundary Architecture
Delivers stable beamwidth and uniform gain profiling from 700MHz to 18GHz with reduced reflection effects.
High Power Rating
Supports robust 300W continuous and 500W peak power handling with built-in DC Short lightning protection.
Stainless Steel Connector
Fitted with a durable Stainless Steel N-Female interface ensuring low insertion loss and high reliability.
Lightweight 1.5 kg Build
Precision CNC machined from 6061 aluminum alloy, compliant with RoHS, WEEE, CE, and FCC standards.
Contact FT-RF Engineering Division
Contact our technical engineering division today to request official quotes or customized mounting solutions.
