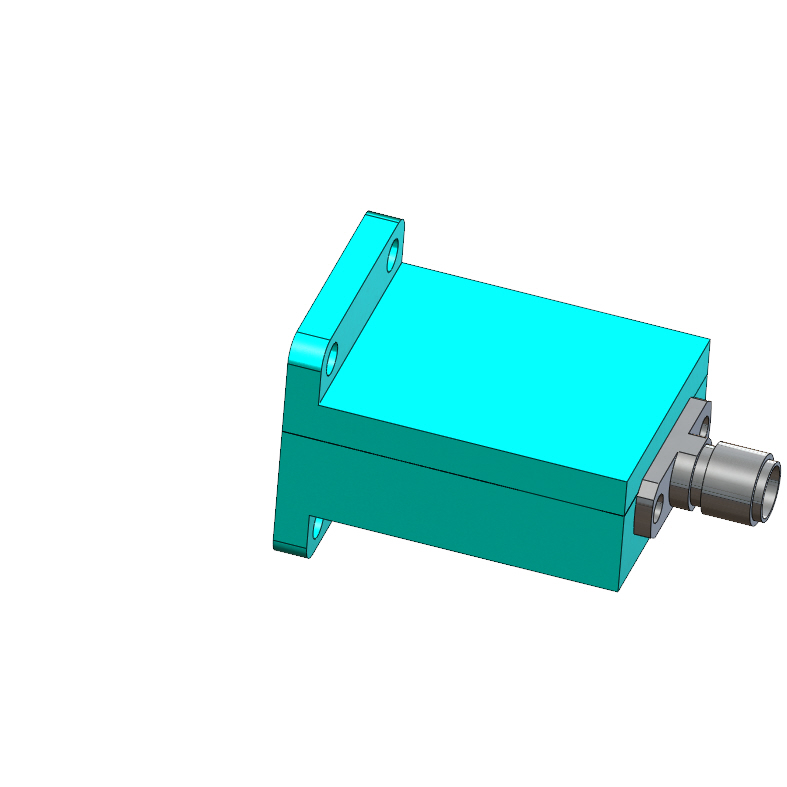

18 GHz to 26.5 GHz WR-42 Waveguide to Coaxial Adapter
Model: WC-42-PBR-E1-KF | K-Female Connector | 220W Max Power
The WC-42-PBR-E1-KF is a high-performance Waveguide to Coaxial Adapter professionally engineered for precision K-Band operations within the 18 GHz to 26.5 GHz spectrum. Optimized for professional Signal Security operations and mission-critical microwave links. Featuring a precision-machined aluminum body and high-durability Stainless Steel 303 K-Female connector, it ensures low insertion loss and unwavering stability for advanced Signal Defense deployments and high-frequency laboratory measurements.
Technical Specifications
Electrical Performance
| Frequency Range | 18.00 - 26.50 GHz |
| Waveguide Standard | WR-42 / R220 / WG20 |
| Cutoff Frequency (Lowest Mode) | 14.051 GHz |
| V.S.W.R (Max) | 1.25 : 1 |
| Maximum Power Handling | 220 Watts (CW) |
| Impedance | 50 Ohm |
Mechanical & Construction

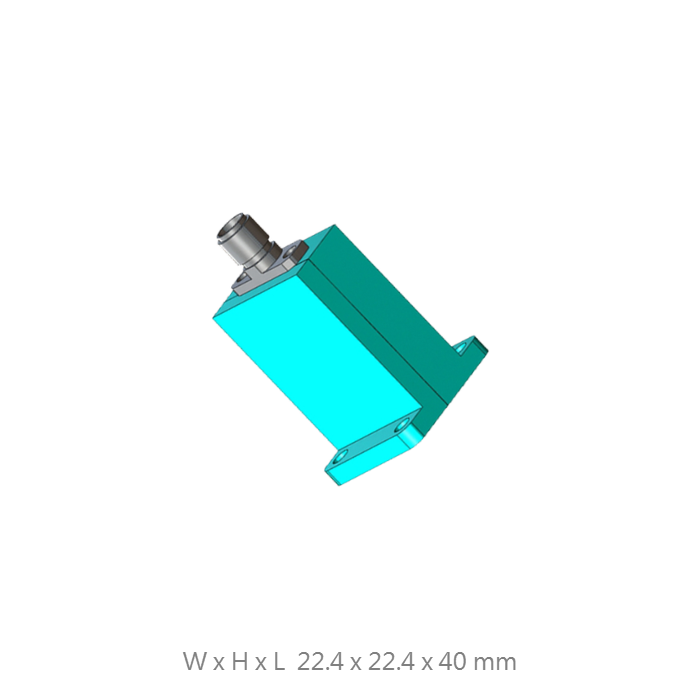

| Dimensions (W x H x L) | 22.40 x 22.40 x 40.00 mm |
| Waveguide Flange | PBR 220 |
| Body Material | High-Grade Aluminum |
| Connector Type | 2.92mm K-Female (Stainless Steel 303) |
| Weight (Estimate) | 20.11 g |
| Manufacturing Origin | Taiwan Design / Made in Taiwan |
Key Tactical & Lab Features
220W Power Reliability
Engineered with precision thermal management to handle robust continuous power loads, ideal for high-intensity laboratory testing and tactical signal management.
Precision Signal Integrity
Optimized internal transition geometry (10.668 x 4.318 mm) ensures minimal signal reflection and low insertion loss across the entire 18-26.5 GHz spectrum.
Tactical Signal Security
Designed to support Signal Defense infrastructure, providing a reliable link for interference mitigation and professional K-Band surveillance.
Ruggedized SUS 303 Interface
Equipped with a high-durability stainless steel 303 connector to ensure repeatable mechanical coupling and superior electrical stability in demanding field use.
Request a Professional Quote
Contact our engineering team to obtain individual V.S.W.R plots, customized flange requirements, or integrated RF sub-assembly solutions.
