WR-42 Waveguide to Coaxial Adapter
Precision K-Band Transition | Standard UG-595/U Flange | 18.0 GHz – 26.5 GHz

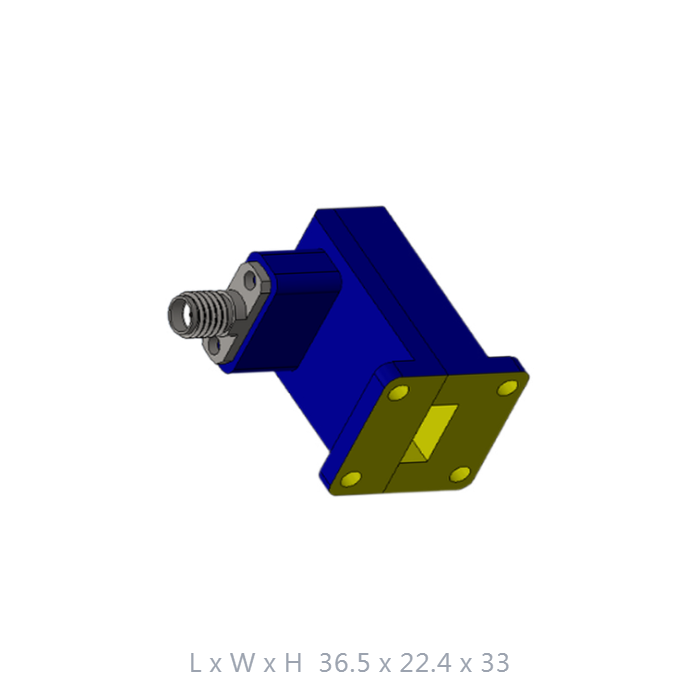

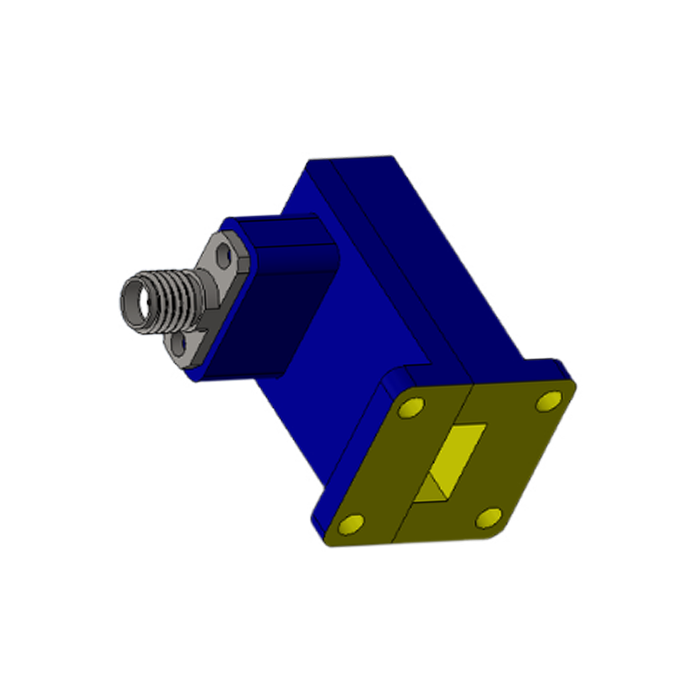

This precision-engineered WR-42 Waveguide to Coaxial Adapter provides a seamless, high-fidelity transition between rectangular waveguide paths and coaxial networks within the 18.0 GHz to 26.5 GHz K-Band spectrum. Optimized for high-frequency signal processing networks, professional 5G testing, satellite link characterization, and millimetric laboratory instrumentation, this premium adapter ensures stable electromechanical coupling and maximum energy transfer with an exceptionally low maximum V.S.W.R profile of 1.25 : 1. Fully designed and manufactured in Taiwan, this ultra-lightweight 30g component features a standardized square UG-595/U flange interface mated to a precision-grade SMA-Female connector with a robust stainless steel interface, safely managing continuous wave power loads up to 280 Watts (CW) while completely preserving structural rigidity and excellent boresight accuracy under continuous industrial duty cycles.
Electrical & RF Performance
| Frequency Range | 18.0 GHz to 26.5 GHz (K-Band Spectrum) |
| V.S.W.R (Max Profile) | ≤ 1.25 : 1 |
| Maximum Power Handling | 280 Watts (CW Continuous Wave) |
| Nominal Impedance | 50 Ohms |
Mechanical & Construction Data
| Waveguide Size Standard | EIA WR-42 (R220 / WG20 Layout) |
| Waveguide Flange Designation | UG-595/U Style Layout (Standard Square Cover) |
| Coaxial Connector Interface | SMA-Female Interface (Precision Grade) |
| Physical Dimensions (L x W x H) | 36.5 x 22.4 x 33 mm |
| Net Weight | 30 g (Ultra-Lightweight Micro-Format) |
| Body Material Profile | High-Grade Precision Machined Aluminum Alloy |
| Connector Interface Material | Premium Wear-Resistant Stainless Steel |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
Precision Signal Integrity
Engineered for minimal insertion loss and low reflection, providing the high-fidelity transition required for professional 5G testing, advanced signal management tracking arrays, and stable satellite link characterization.
Rugged Hybrid Construction
Combines a lightweight, precision-machined aluminum alloy body core with a highly durable stainless steel connector interface to ensure structural longevity and consistent electromechanical contact during repeated industrial duty cycles.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under strict industrial quality control standards, ensuring outstanding structural alignment tolerances, clean mode coupling configurations, and enduring calibration constancy.
High Power Endurance
Reliably manages continuous transmission loads up to 280W CW with highly efficient thermal dissipation parameters, making it perfectly suited for high-intensity tracking setups and millimetric laboratory operations.
Inquire About Professional RF Solutions
Contact our technical engineering team today to request certified individual V.S.W.R plot metrics, alternative customized mechanical designs, specialized materials, or technical support regarding large-scale K-band infrastructure deployments.
