Description & Specification

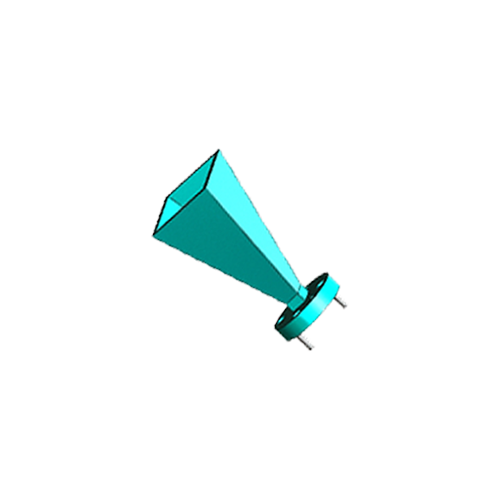

WR-15 Standard Gain Horn Antenna
Model: WI-15-UG-20 | 50 GHz - 75 GHz | 20 dBi | V-Band
The WI-15-UG-20 is a precision-engineered WR-15 Waveguide Horn Antenna designed for V-Band millimeter-wave applications within the 50 GHz to 75 GHz spectrum. Optimized for professional Signal Security operations and high-frequency laboratory measurements, it provides a consistent 20 dBi gain with a precise 17° beamwidth. Featuring a premium aluminum construction and UG flange compatibility, this antenna ensures unwavering Signal Integrity and stability for advanced Signal Defense deployments and millimeter-wave system characterization.
Electrical & RF Performance
| Frequency Range | 50 - 75 GHz (V-Band) |
| Standard Gain | 20 dBi |
| Maximum Power Handling | 150 Watts (CW) |
| V.S.W.R (Max) | 1.3 : 1 |
| 3dB Beamwidth (H/E Plane) | 17° / 17° |
Mechanical & Construction
| Waveguide Size | WR-15 (R620) |

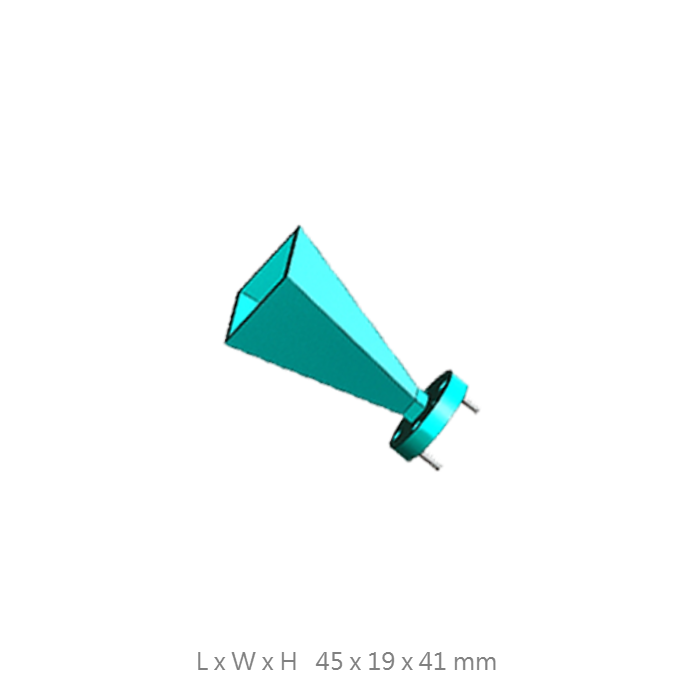

| Dimensions (L x W x H ) | 45 x 19 x 41 mm |
| Net Weight | 20 g |
| Waveguide Flange | UG Compatible |
| Body Material | High-Grade Aluminum |
| Origin | Made in Taiwan (FT-RF) |
Get a Quote / Custom RF Solutions
