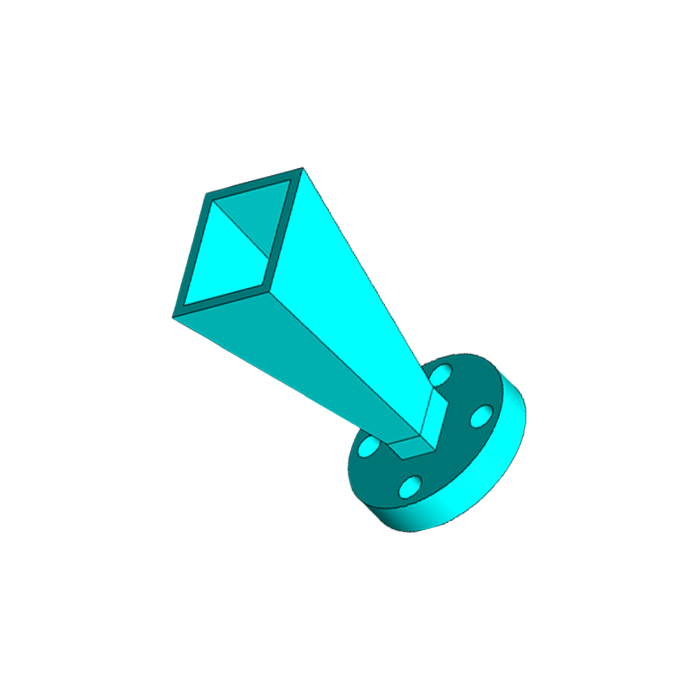

WR-15 Millimeter Wave Horn Antenna
Model: WI-15-UG-15 | 50.0 - 75.0 GHz | 15 dBi | 150W
The WI-15-UG-15 is an ultra-high frequency Millimeter Wave (mmWave) Horn Antenna specifically engineered for the V-Band spectrum (50 GHz to 75 GHz). Precision-machined from premium materials and featuring a standard UG-385/U Flange, it delivers consistent 15 dBi gain with exceptional beam symmetry. This radiator is an essential component for advanced 5G/6G Research, high-bandwidth satellite communication, and precision Signal Integrity testing, providing reliable performance up to 150W of power handling.
Technical Specifications
Electrical & RF Performance
| Waveguide Standard | WR-15 (V-Band) |
| Frequency Range | 50.0 to 75.0 GHz |
| Standard Gain | 15 dBi |
| Maximum Power Handling | 150 Watts (CW) |
| V.S.W.R (Max) | 1.3 : 1 |
| -3dB Beamwidth (H / E Plane) | 30° / 31° |
Mechanical & Physical Specs

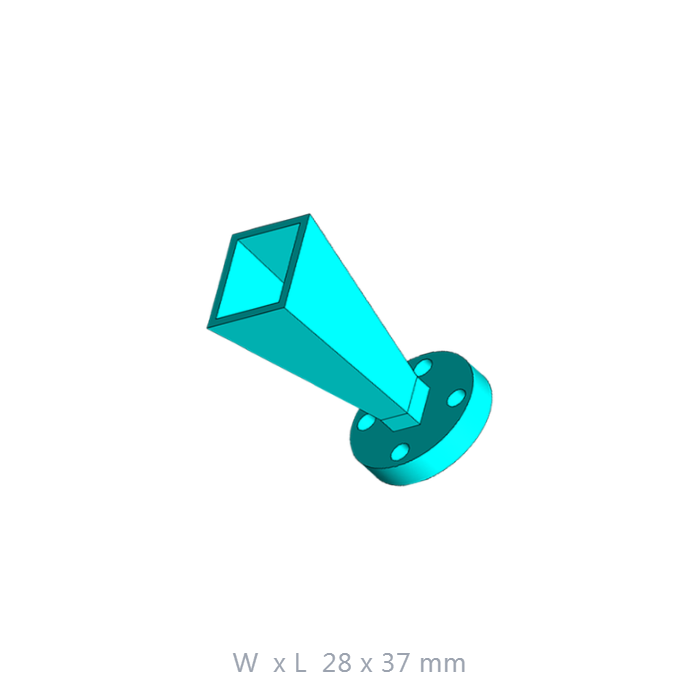

| Dimensions (WxL) | 28 x 37 mm |
| Net Weight | 10 g |
| Waveguide Flange | UG-385/U Style |
| Material | Premium High-Precision Machining |
| Origin | Made in Taiwan (FT-RF) |
Key Tactical Features
V-Band Precision
Optimized for the 50-75 GHz band, providing the extreme frequency accuracy required for next-generation mmWave communication systems.
Ultra-Compact Design
Weighing only 10g, this high-precision radiator is ideal for space-constrained lab environments and high-frequency antenna ranges.
Customizable Infrastructure
Available with waterproof structures, PTZ control functions, and specialized mounting designs for diverse tactical field requirements.
Signal Security & Defense
Engineered for high-fidelity signal transmission and interference mitigation, supporting mission-critical electronic protection operations.
Get a Quote / Custom mmWave Solutions
We provide custom design and production services for horn antennas up to 70 GHz and beyond.
