  • WR15 Waveguide Horn Antenna (without adapter), 50 GHz to 75 GHz frequency band, 10dbi gain, UG 385/ U flange

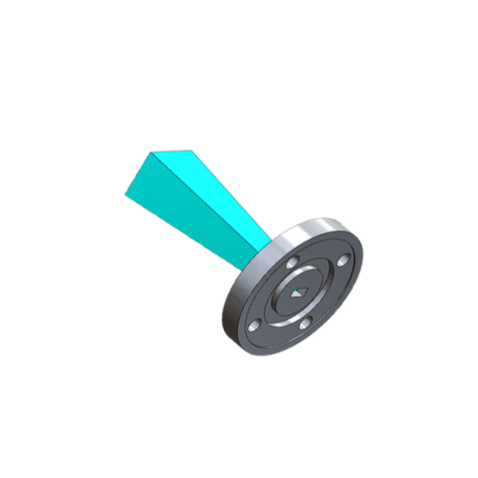

WR15 Waveguide Horn Antenna (without adapter), 50 GHz to 75 GHz frequency band, 10dbi gain, UG 385/ U flange

WR15 Waveguide Horn Antenna (without adapter), 50 GHz to 75 GHz frequency band, 10dbi gain, UG 385/ U flange

Model No: WI-15-UG-10

Mechanical Drawing: Download

We are currently evaluating and developing horn antenna products with frequencies up to 70 GHz. Furthermore, we provide custom design and production services.

If you are interested, please Contact us for more information.

Quantity:
INQUIRY

  • Description & Specification

Application:

  • WR15 Waveguide Horn Antenna (without adapter), 50 GHz to 75 GHz frequency band, 10dbi gain, UG 385/ U flange

Feature:

  • Meet international standards
  • Good appearance design

Custom design: (Please contact us: info-tw@ft168.com.tw)

  • Waterproof structure
  • PTZ Controlling function
  • Tripod or antenna mounting design
  • Customize Color

Specification:

  • Model: WI-15-UG-10
  • Waveguide:WR-15
  • Frequency:50 to 75GHz
  • Gain:10
  • Max Power(W):150W
  • H-plane(-3db):54
  • E-plane(-3db):54

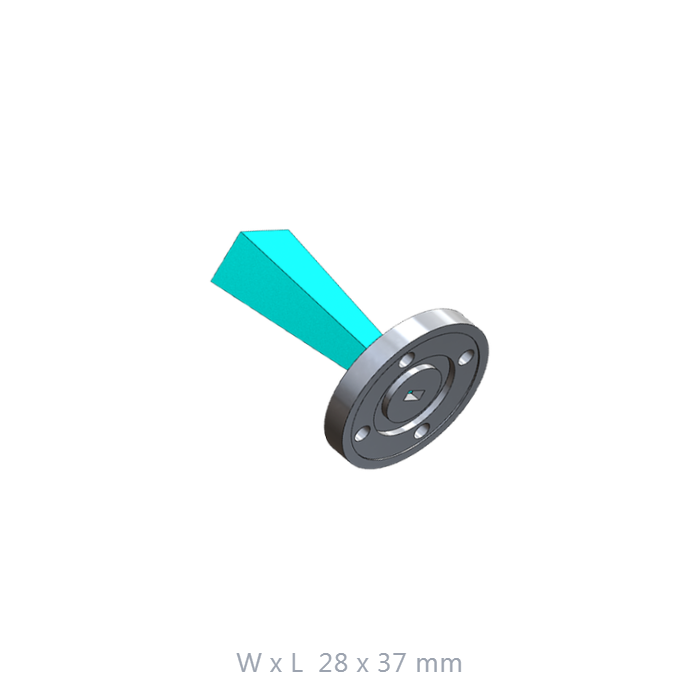

  • Size(mm):28x37
  • Wieght(g):10
  • Waveguide Flange: UG
  • V.S.W.R:1.3
