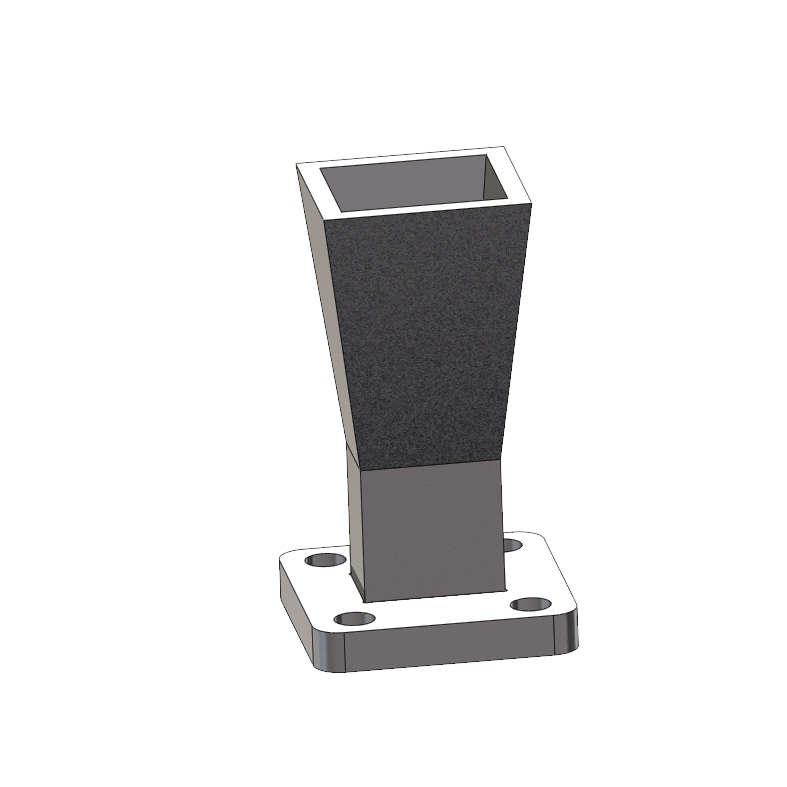

WR28 26.5 GHz to 40 GHz 10dBi, UBR Flange, Waveguide Horn Antenna

Model No: WI-28-UBR-10

Made in Taiwan
Frequency Range: 26.5 to 40.0 GHz
Standard Gain: 10 dBi
Waveguide Type: WR-28 (Ka-Band)
Max Power (W): 500 Watts
Stock: 18
2026/06/09
Quantity:
INQUIRY

26.5 GHz to 40.0 GHz WR-28 Ka-Band Standard Gain Horn Antenna

Precision Calibration Grade | Direct Waveguide Input | Model: HS-028-UBR-10-NA
The HS-028-UBR-10-NA is a high-precision, calibration-grade Ka-Band Standard Gain Horn Antenna professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for the WR-28 standard waveguide architectures. Operating within the millimeter-wave spectrum across the continuous 26.5 GHz to 40.0 GHz frequency band, this premium antenna delivers a highly consistent and precision-calibrated nominal gain profile of 10 dBi combined with an exceptionally low maximum V.S.W.R threshold of 1.3 : 1. Featuring a Direct Waveguide Input interface with a standardized UG-599/U (UBR Style) flange layout, it ensures optimal structural impedance coplanarity and ultra-low-loss power transfer, safely managing continuous wave power loads up to 500 Watts (CW). Meticulously CNC machined from high-grade aluminum alloy in Taiwan, this ultra-compact component provides remarkably clean and symmetric 54° horizontal and vertical radiation profiles. It stands as the definitive choice for laboratory antenna characterization, specialized 5G evaluation setups, industrial EMI/EMC compliance validation scanning, satellite research grids, and mission-critical high-density frequency scanning arrays demanding uncompromised millimeter-wave performance parameters.



Electrical & RF Performance
Frequency Range Class 26.5 GHz to 40.0 GHz (Continuous Ka-Band Spectral Optimization)
Waveguide Standard Size EIA WR-28 / R320 / WG22 Layout Geometry
Nominal Gain (Typical) 10 dBi
V.S.W.R Profile (Max) ≤ 1.3 : 1 (Precision Minimal Reflection Performance)
Maximum Power Handling 500 Watts (CW Continuous Wave Thermal Limit)
-3dB Beamwidth (H-Plane) 54° (Symmetric Pattern Optimization)
-3dB Beamwidth (E-Plane) 54° (Symmetric Pattern Optimization)
Nominal System Impedance 50 Ohms
Mechanical & Environmental Data

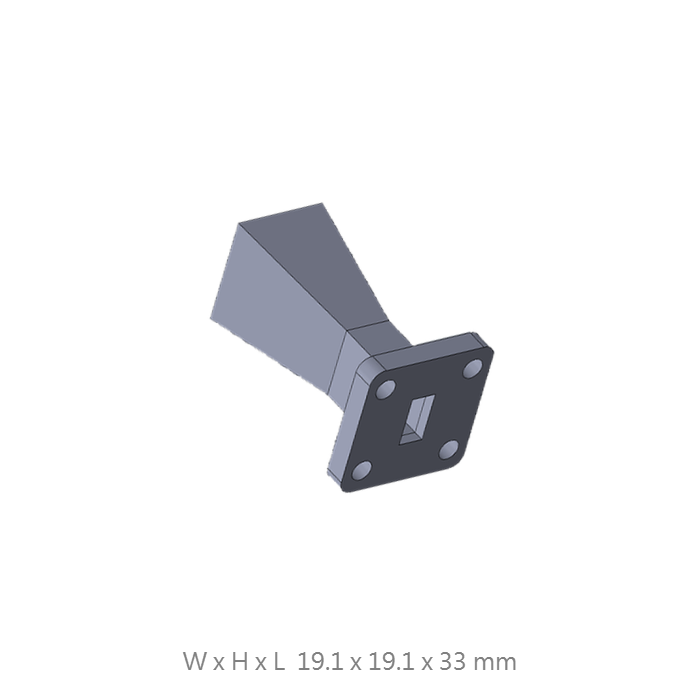

Physical Dimensions (W x H x L) 19.1 x 19.1 x 33 mm (Ultra-Compact Form Factor)

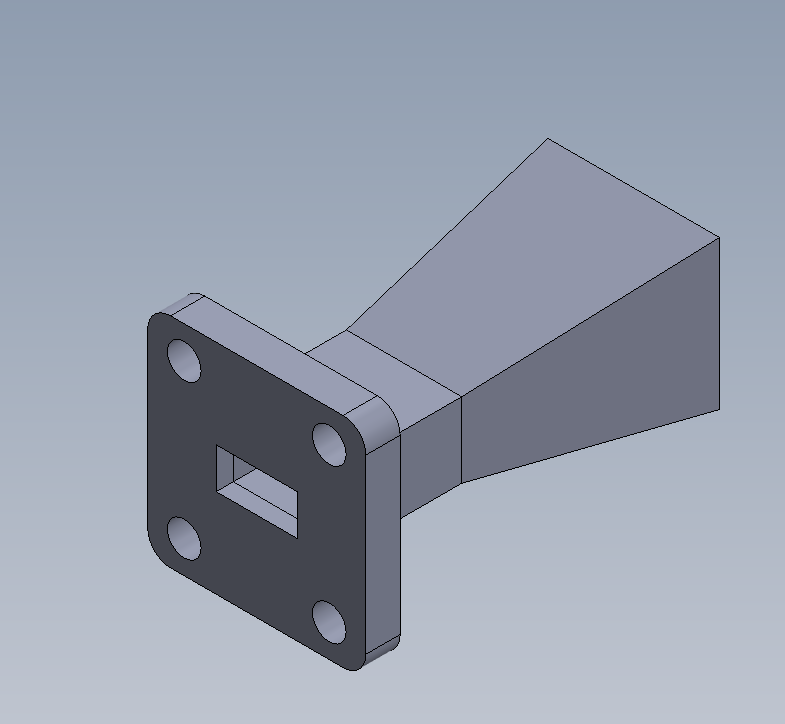

Waveguide Connection Flange Standardized UG-599/U (UBR Style Flange Interface Layout)
Input Interface Launcher Direct Waveguide Input (No Coaxial Adapter Loss)
Structural Body Material High-Grade Precision Machined Aluminum
Manufacturing Origin Taiwan Design & Made in Taiwan (FT-RF Professional Grade)



Millimeter-Wave Stability

Equipped with symmetric 54° beamwidths, providing the ultra-stable radiation pattern necessary for repeatable laboratory measurements, professional 5G testing, and localized Signal Defense verification.

Direct Waveguide Integration

Designed with a direct WR-28 interface for ultra-low-loss power transfer, eliminating transition losses associated with coaxial adapters in high-precision millimetric setups.

500W Continuous Stability

Robustly machined from premium aluminum to handle high 500W CW power loads while maintaining structural integrity during high-intensity Signal Management missions.

Ultra-Compact Architecture

Measuring only 19.1x19.1mm at the aperture, this antenna is ideal for space-constrained measurement setups and high-density frequency scanning arrays.

Contact FT-RF Engineering Team

Contact our technical engineering division today to request official quote sheets, individual certified radiation patterns, specialized PTZ control integration, or customized tripod mounting hardware solutions.
