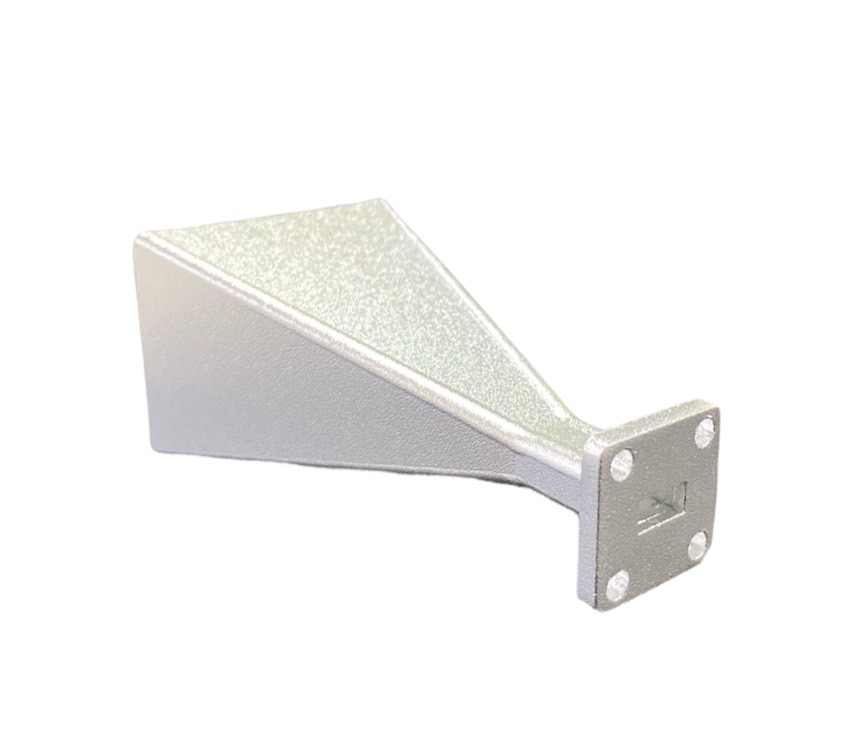

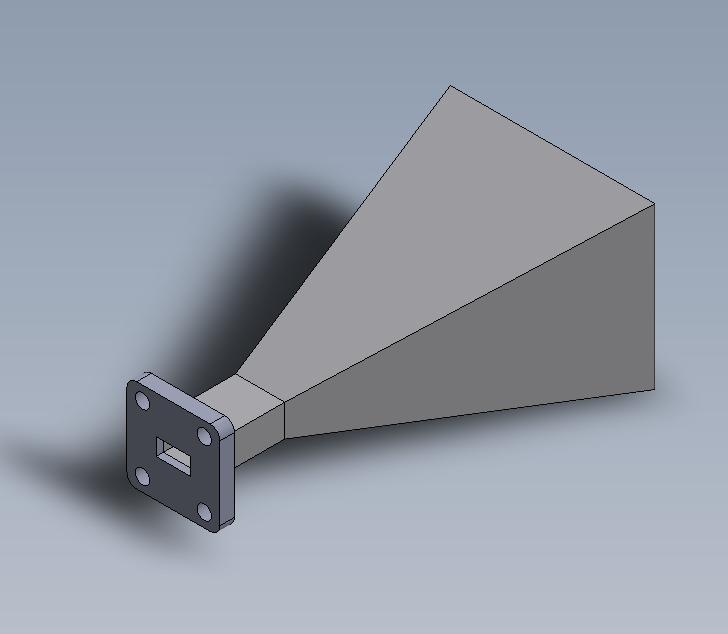

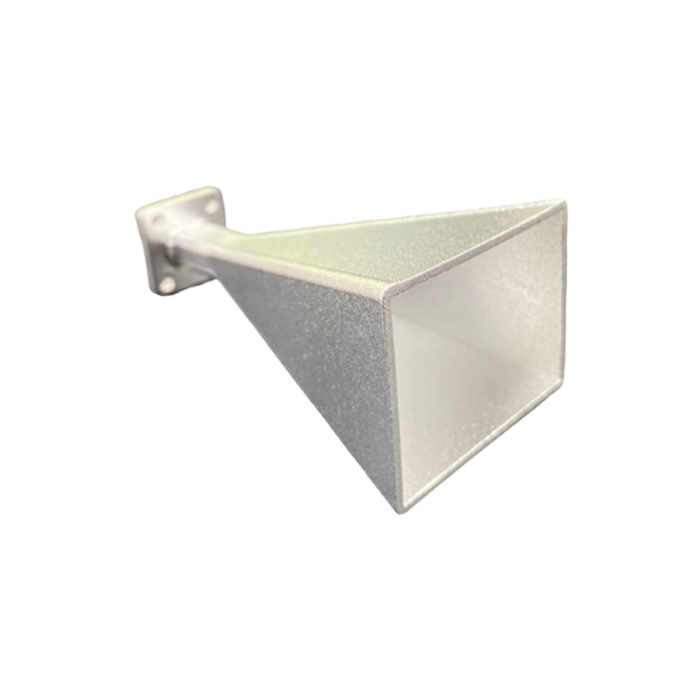

WR28 Waveguide Horn Antenna, 26.5 GHz to 40 GHz, 20dBi, UBR Flange WR28 Waveguide Horn Antenna, 26.5 GHz to 40 GHz, 20dBi, UBR Flange WR28 Waveguide Horn Antenna, 26.5 GHz to 40 GHz, 20dBi, UBR Flange

Model No: WI-28-UBR-20

Mechanical Drawing: Download

  • Waveguide: WR-28
  • Frequency: 26.5 to 40GHz
  • Gain: 20 dbi
  • Max Power(W): 500W
Quantity:
INQUIRY

Application

  • WR28 Waveguide Horn Antenna, 26.5 GHz to 40 GHz, 20dBi, UBR Flange
  • EMI/EMC testing
  • Antenna gain measurements.

Feature

  • Meet international standards
  • Good appearance design

Custom design: (Please contact us: info-tw@ft168.com.tw)

  • Waterproof structure
  • PTZ Controlling function
  • Tripod or antenna mounting design
  • Customize Color

Specification:

  • Model: WI-28-UBR-20
  • Waveguide: WR-28
  • Frequency: 26.5 GHz to 40 GHz
  • Gain: 20
  • Max Power(W): 500W
  • H-plane(-3db): 17 deg
  • E-plane(-3db): 18 deg
  • Size(mm): 33x42x78
  • Wieght(g): 40
  • Waveguide Flange: UG/599U
  • V.S.W.R: 1.3
  • Material: Aluminum
